Strymon STARLAB - Additional Functions; Preset Functions; Karplus-Strong Controls

ADDITIONAL FUNCTIONS

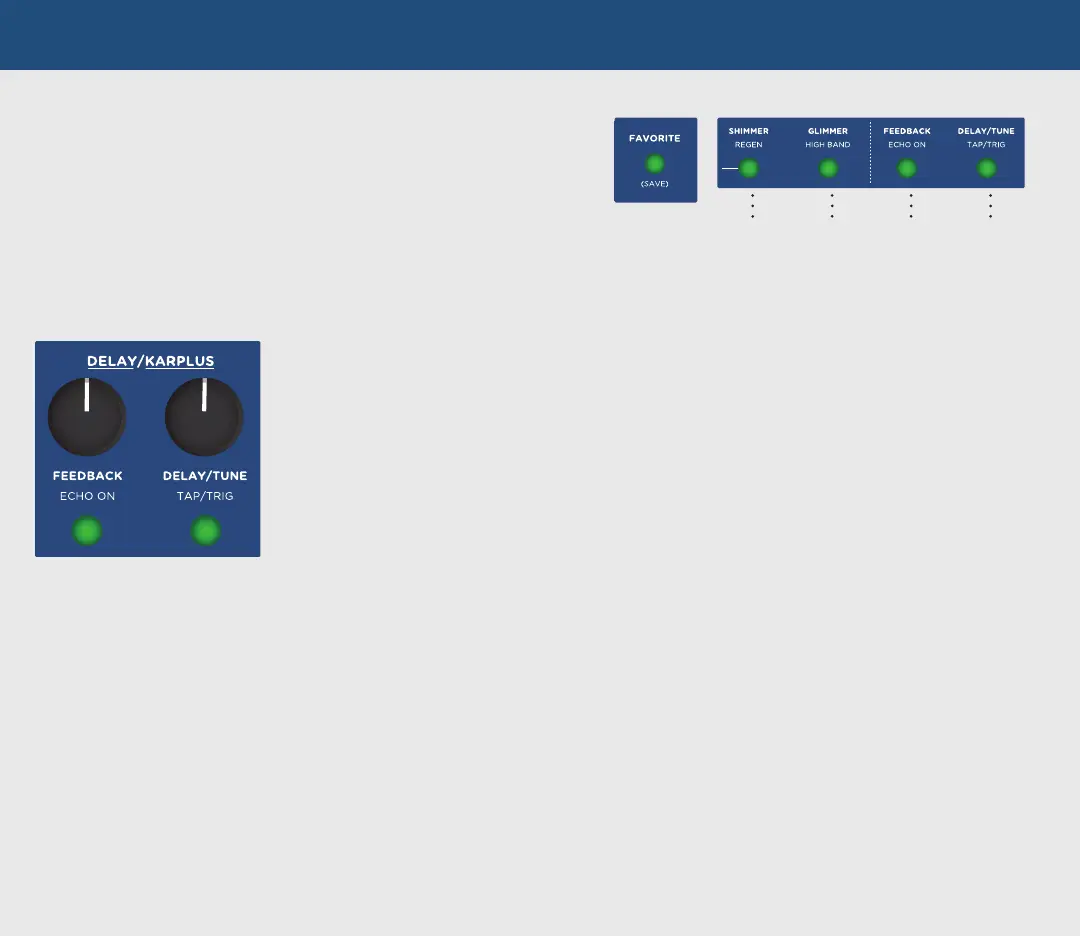

KARPLUS-STRONG CONTROLS
Karplus-Strong mode gives you access to a monophonic, delay-based string synthesizer. To enter Karplus-Strong
mode, hold the ECHO ON button and turn the DELAY/TUNE knob clockwise until the TAP/TRIG button turns RED. For
normal delay operation, hold the ECHO ON button and turn DELAY/TUNE knob counterclockwise until the TAP/TRIG
button blinks GREEN.
FEEDBACK: Affects string decay and structure resonance.
ECHO ON: Mixes in the dry string signal with the wet output. If ECHO ON is not selected, only the reverberated string
will be heard at the wet output.
DELAY/TUNE: Sets string tuning over a continuous 4 octave range. When SIZE/PITCH CV is detected, sets fine tuning
of 12 semitones.
TAP/TRIG (quick press): Triggers or ‘plucks’ string.
TAP/TRIG (hold): Continuously excites or ‘bows’ the string.
FEEDBACK CV: Affects string decay and structure resonance. FEEDBACK knob position acts as an offset.
SIZE/PITCH CV: Controls the string pitch interval at 1V/octave over a 4 octave range. Input range is 0-4V.
TAP/TRIG CV: Triggers or ‘plucks’ the string.
IN GATE CV: Continuously excites or ‘bows’ the string in latching or momentary operation. See complete manual for
in-depth detail.
Power Up Modes and Secondary Functions
In addition to the functions directly controlled by the knobs and switches on the UI, it is possible to configure global setup modes and access additional functions
via power up modes and secondary functions. See complete manual for in-depth detail.
PRESET FUNCTIONS
There are four onboard presets that are accessible using the FAVORITE button.
SWITCHING BETWEEN PRESETS: To switch between presets, press and hold FAVORITE,
then press one of the four center buttons. The currently selected preset will illuminate
RED while holding down the FAVORITE button.
SAVING A PRESET: Press and hold FAVORITE until the button flashes GREEN, then:
• Press FAVORITE to save to the current location
OR
• Press one of the four center buttons to save to another preset location
Preset 1 Preset 2 Preset 3 Preset 4
+
