SECTION 1 - Engine Compartment

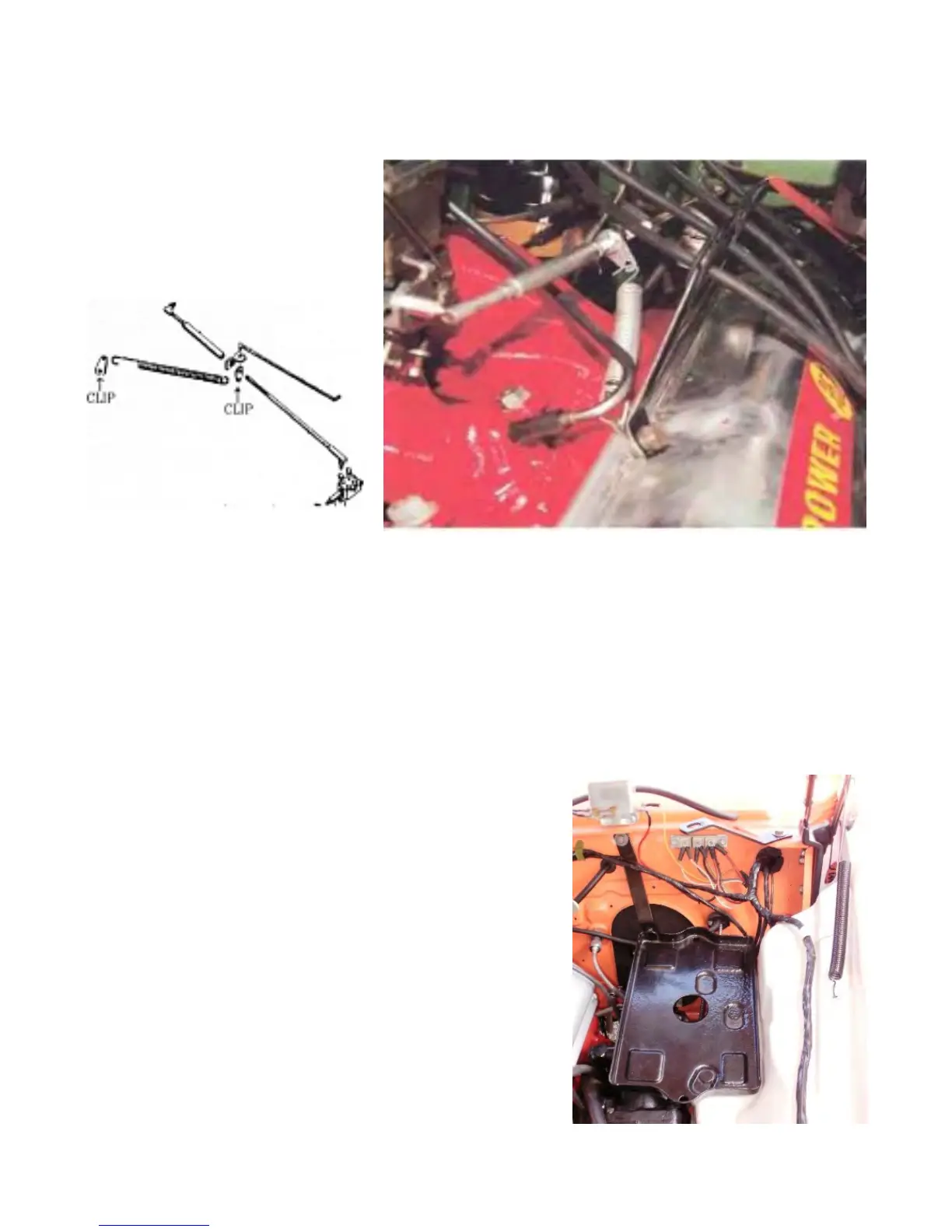

Accelerator Return Spring
Accelerator Return Spring
The accelerator return spring should
be attached to a small clip which is
mounted to the center valve cover
bolt. The 1956 Shop Manual shows
this clip mounted to the center valve
cover bolt on the driver's side.
A similar clip attaches to the bell-crank-to-carburetor rod. This second clip can be moved up or
down the rod to increase or decrease the spring tension as desired.
Reference Source:
1955 - 1958 Chassis Parts Catalog, page 72.
1956 Passenger Car Shop Manual, Electrical section, page 41 Fig 90.
Motor Trend dated February 1956, page 21.
Hot Rod Magazine dated April 1956, page 21.
Battery Box
The battery box is mounted on a flat spot of the inner fender
apron on the driver side. The box is secured by two bolts
that run through the box and apron and a nut attached from
underneath, inside the wheel well..
There is a bracket that mounts on the firewall and attaches
to the vertical edge of the box, at the corner to give extra
support.
Reference Source:
1955 - 1958 Chassis Parts Catalog, page 206-207.
Engineering drawing for Part # 1312972
