Studer A807 Quick Reference Guide

www.reeltoreel.nl Philip van der Matten ver 1.0 9 mrt 2023 page 2/3
✇ PVDM jjjjjjhjhjfgjhsldkfjghldfkjghsldfkjghsdfkjghldkfjghdkfjghlsdkfjghsldfkghsdfkjghsldfkjghlsdfkghdfghsldfkjghsldfkjghsldfkjghkdfjghlsdkfjghsldfkjghldfkjghdfkjghdfkjghldfkjg✇
PRO AUDIO AFFAIRS

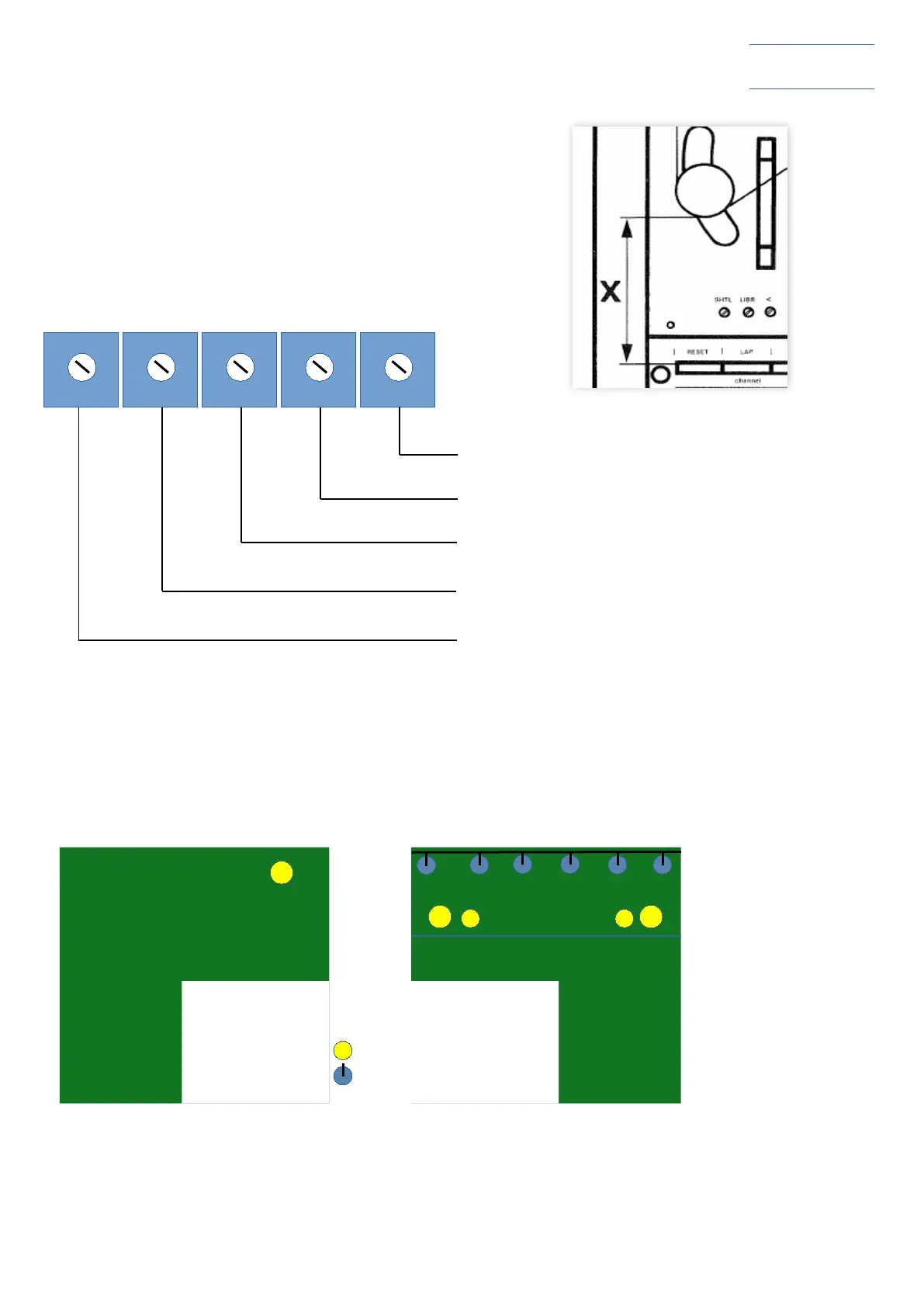

PLAY adjust to 70p, adjust X to 56-58mm
WIND adjust X to 57mm
REWIND adjust X to 67mm
LIBR WIND adjust X to 65mm
SHUTTLE adjust that the tape does not move
page 147
located behind the left tape cutter
Mechanical adjustment
capstan motor control spooling motor control
=FRAKO
=Philips
Motor Control PCB’s critical capacitors location

Studer A807 Specifications

General

Heads	3 (Erase, Record, Playback)
Tape Speed	3.75 ips, 7.5 ips, 15 ips
Track System	2-track or 4-track
Signal to Noise Ratio	66dB
Wow and Flutter	0.04% (15 ips)
Input	XLR
Output	XLR
Reel Size	Up to 10.5 inches
Equalization	NAB
