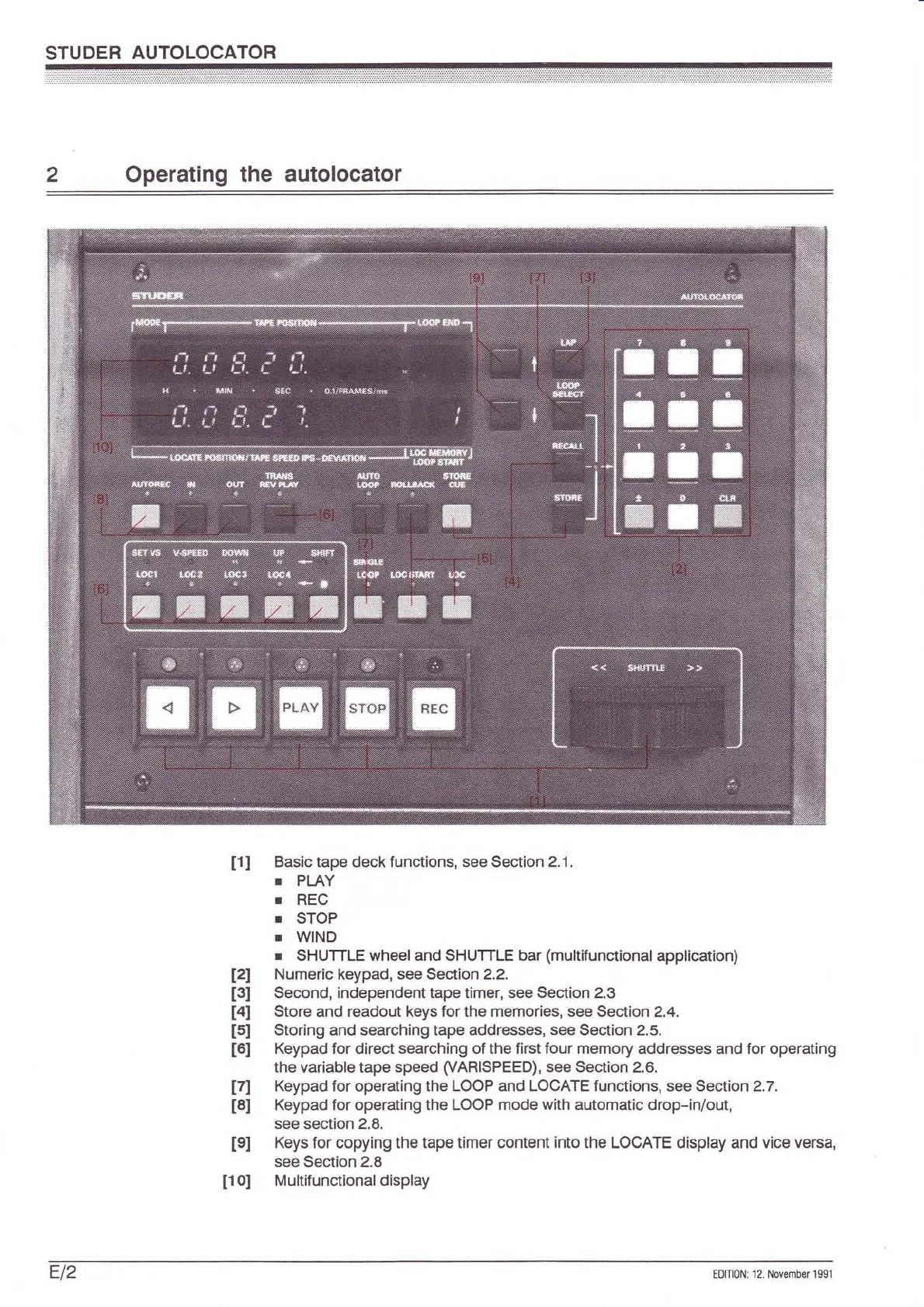

Studer A820 User Manual

STUDER
AUTOLOCATOR
2 Operating
the autolocator
11l
Basic tape deck functions, see Section 2.1.
r
PI-AY
r
REC
r
STOP
r
WIND
r
SHUTTLE wheel and SHUTTLE bar
(multifunctional
application)
Numeric keypad, see Section 2.2.
Second, independent tape timer, see Section 2.3
Store
and
readout keys for the memories, see Section
2.4.
Storing and searching tape addresses,
see
Section
2.5.
Keypad for direct searching of the first
four
memory addresses and for operating
the variable tape speed
(VARISPEED),
see Section
2.6.
Keypad for operating
the LOOP and LOCATE functions,
see
Section 2.7.
Keypad for operating the LOOP
mode with automatic
drop-in/out,
see
section 2.8.
Keys for copying the tape timer content
into
the LOCATE display and vice versa,
see
Section 2.8
[10]
Multifunctionaldisplay
l2l
t3l
t4l
tsl
l6I
17l
t8l
Isl
El2 EDlTloN:
12. November 1991

Studer A820 Specifications

General

Track Formats	2-track, 4-track
Signal to Noise Ratio	66 dB at 15 ips (without noise reduction)
Equalization	NAB, CCIR
Heads	3 (erase, record, playback)
Inputs	XLR balanced
Outputs	XLR balanced
Tape Speed	3.75, 7.5, 15, and 30 ips
