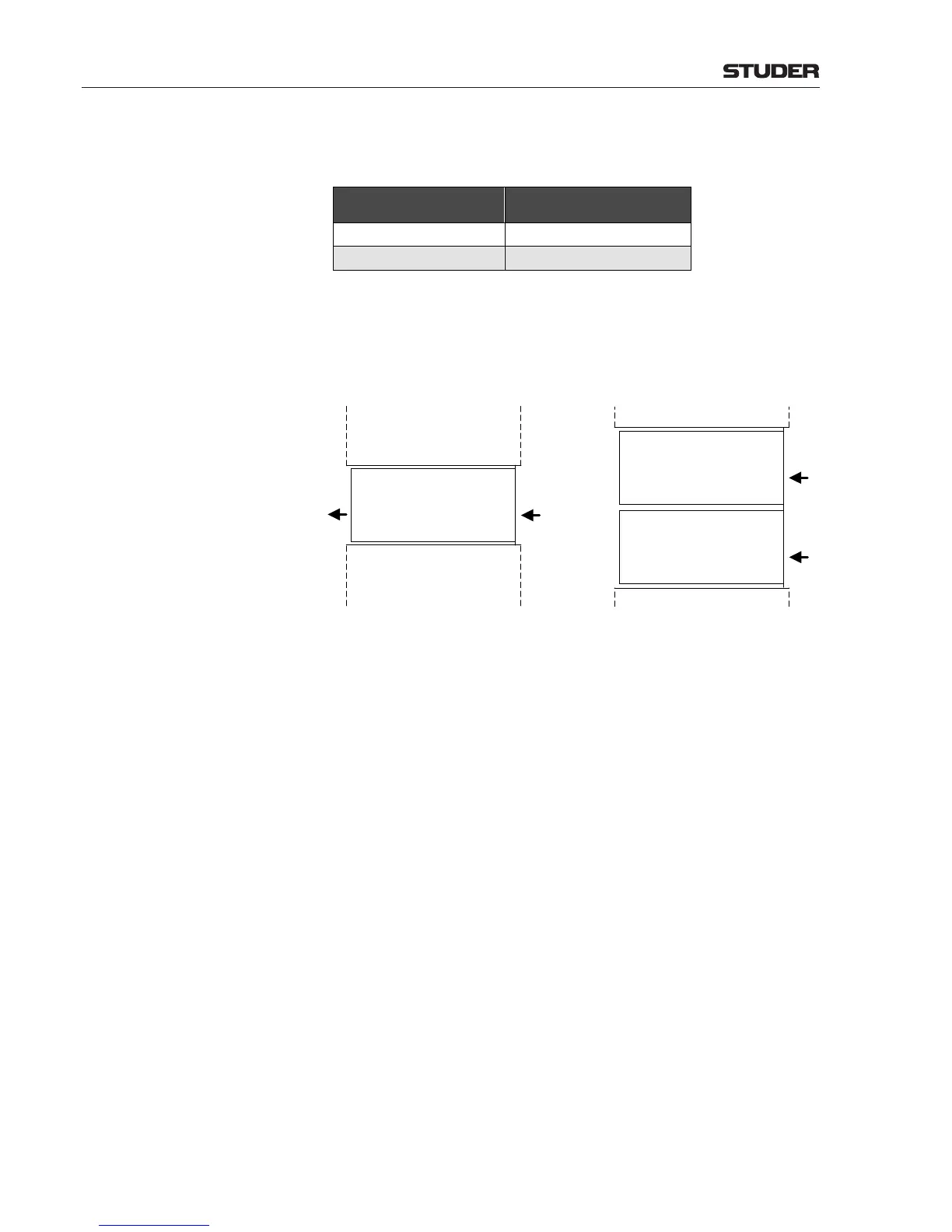

Heat dissipation The following table lists the required heat dissipation which is depending on
the type of the Compact Infinity Core ( Core 300, Core 600) :
Compact Infinity Core Type
Required Heat
Dissipation
Core 300
140 W
Core 600
250 W
If the unit is mounted in a climatised rack, please note that air intake must be
at the front and air outlet at the rear of the rack.
If two Compact Infinity Cores are mounted on top of each other, there is no
space required between the two units.
Single Compact Infinity Core
Rear Front
Air
Air
Compact Infinity Core
Dual Compact Infinity Core
Rear Front
Air
Compact Infinity Core
Air
Compact Infinity Core
