Studer RCC-03 - User Information on BSP Displays; User Information on Xcom-CAN Displays

Studer Innotec SA
Quick guide RCC-02/-03
28 V 6.1.0 Quick guide

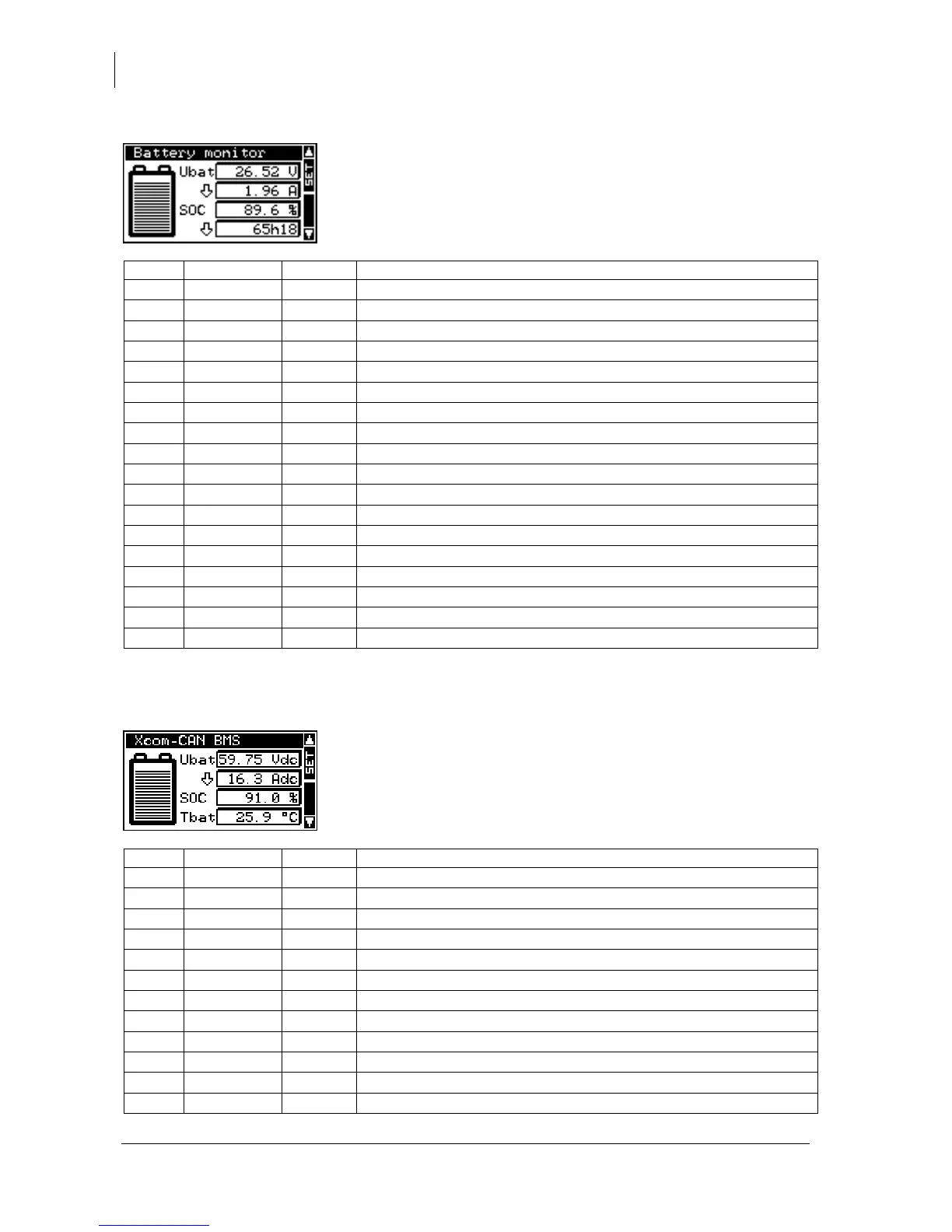

7.2 USER INFORMATION ON BSP DISPLAYS
Nr
Name
Unit
BSP information description
7000
Ubat
Vdc
Battery voltage
7001
Ibat
Adc
Battery current
7002
SOC
%
State of Charge
7003
Pbat
W
Power
7004
Trem
Remaining autonomy
7007
0d<
Ah
Ah charged today
7008
0d>
Ah
Ah discharged today
7009
-1d<
Ah
Ah charged yesterday
7010
-1d>
Ah
Ah discharged yesterday
7011
tot<
kAh
Total Ah charged
7012
tot>
kAh
Total Ah discharged
7013
Ttot
days
Total time
7017
cus>
Ah
Custom charge Ah counter
7018
cus<
Ah
Custom discharge Ah counter
7019
Tcus
h
Custom counter duration
7029
Tbat
°C
Battery temperature
7047
Sman
%
SOC manufacturer
7059
locE
Local daily communication error counter (CAN)
7.3 USER INFORMATION ON XCOM-CAN DISPLAYS
The user information below is only available when the Xcom-CAN is used in BMS mode (interface
with compatible lithium batteries).
Nr
Name
Unit
Xcom-CAN information description
7000
Ubat
Vdc
Battery voltage
7001
Ibat
Adc
Battery current
7002
SOC
%
State of Charge
7003
Pbat
W
Power
7007
0d<
Ah
Ah charged today
7008
0d>
Ah
Ah discharged today
7029
Tbat
°C
Battery temperature
7053
bTyp
Battery Type
7054
BMSv
BMS Version
7055
bCap
Ah
Battery Capacity
7056
bmid
Reserved Manufacturer ID
7057
SOH
%
State Of Health
