STUDIO DUE CS-2 - CS2 DMX Channel Settings

7
SPOT 1
SPOT 2
SPOT 3
SPOT 4
The CS2 can work both at 16 and 8 bit.
It utilize: 14 DMX channels, 16 bit (mod 3), 11 DMX channels, 8 bit (mod 2) e 9 DMX channels, 8 bit (mod 1).
Il CS-2 può funzionare sia a 16 che a 8 bit utilizzando:
14 canali DMX a 16 bit (mod 3), 11 canali DMX a 8 bit (mod 2) e 9 canali DMX a 8 bit (mod 1).
ita
eng
00 1 0 21 041 061

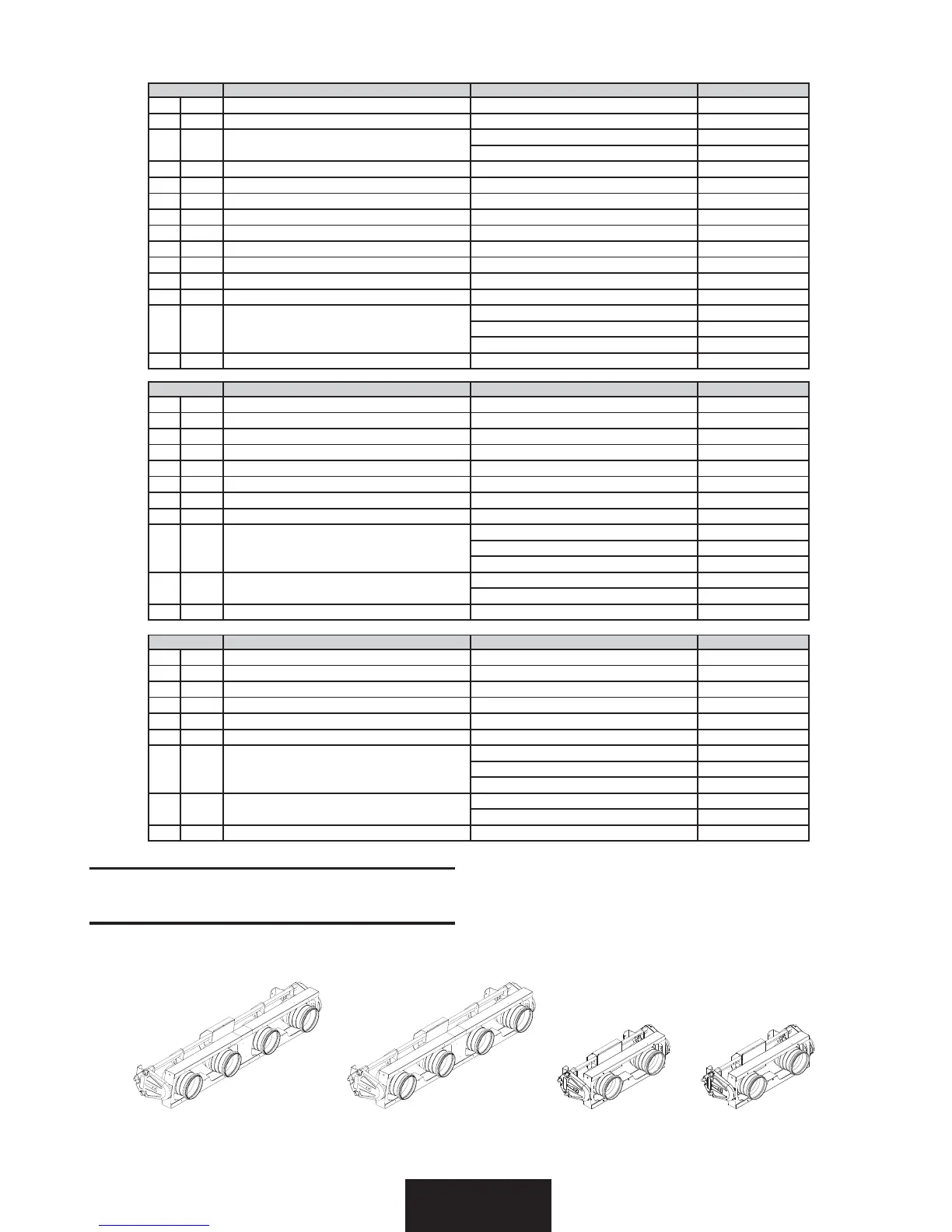

DMX CHANNEL FUNCTION DESCRIPTION DECIMAL
Ch 1 dimmer lamp 1 linear dimmer 0 - 100% lamp 1 000...255
Ch 2 dimmer lamp 2 linear dimmer 0 - 100% lamp 2 000...255
Ch 3 motor speed 8 level of motor speed - max speed 000...031
- min speed 224...255
Ch 4 reset reset of all the motors 128...191
Ch 5 global pan coarse global pan coarse (000 = excluded) 001...255
Ch 6 global pan fine global pan fine for 16 bit 000...255
Ch 7 tilt coarse global tilt coarse 000...255
Ch 8 tilt fine global tilt fine for 16 bit 000...255
Ch 9 pan 1 coarse pan spot 1 coarse 000...255
Ch 10 pan 1 fine pan spot 1 fine for 16 bit 000...255
Ch 11 pan 2 coarse pan spot 2 coarse 000...255
Ch 12 pan 2 fine pan spot 2 fine for 16 bit 000...255
Ch 13 pan mode selector pan mode normal 000...063
pan mode 1 064...127
pan mode 2 128...255
Ch 14 aux aux 000...255
DMX CHANNEL FUNCTION DESCRIPTION DECIMAL
Ch 1 dimmer lamp 1 linear dimmer 0 - 100% lamp 1 000...255
Ch 2 dimmer lamp 2 linear dimmer 0 - 100% lamp 2 000...255
Ch 3 pan 1 pan spot 1 for 8 bit 000...255
Ch 4 pan 2 pan spot 2 for 8 bit 000...255
Ch 5 global pan coarse global pan coarse (000 = excluded) 001...255
Ch 6 global pan fine global pan fine for 16 bit 000...255
Ch 7 tilt coarse global tilt coarse 000...255
Ch 8 tilt fine global tilt fine for 16 bit 000...255
Ch 9 pan mode selector pan mode normal 000...063
pan mode 1 064...127
pan mode 2 128...255
Ch 10 motor speed 8 level of motor speed - max speed 000...031
- min speed 224...255
Ch 11 reset reset of all the motors 128...191
DMX CHANNEL FUNCTION DESCRIPTION DECIMAL
Ch 1 dimmer lamp 1 linear dimmer 0 - 100% lamp 1 000...255
Ch 2 dimmer lamp 2 linear dimmer 0 - 100% lamp 2 000...255
Ch 3 pan 1 pan spot 1 for 8 bit 000...255
Ch 4 pan 2 pan spot 2 for 8 bit 000...255
Ch 5 global pan global pan coarse (000 = excluded) 001...255
Ch 6 tilt tilt 8 bit 000...255
Ch 7 pan mode selector pan mode normal 000...063
pan mode 1 064...127
pan mode 2 128...255
Ch 8 motor speed 8 level of motor speed - max speed 000...031
- min speed 224...255
Ch 9 reset reset of all the motors 128...191
CS2 DMX SETTING: 14 CHANNELS 16 BIT; 11 CHANNELS 8 BIT; 9 CHANNELS 8 BIT
