4

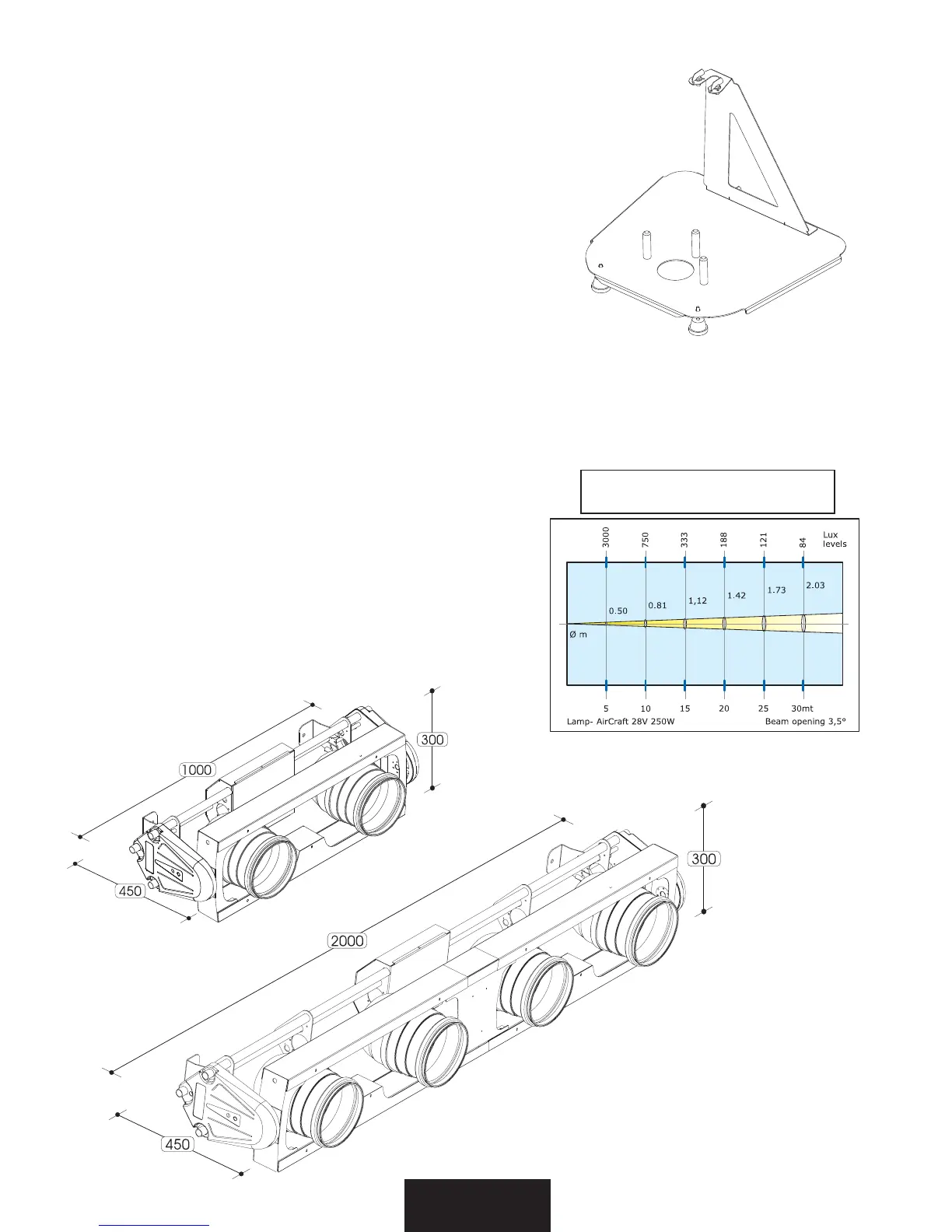

PHOTOMETRIC PARAMETERS
PARAMETRI FOTOMETRICI
TECHNICAL FEATURES / CARATTERISTICHE TECNICHE
• LAMPS / LAMPADE
CS-2: 2 lamps ACL STI-250W-28V (suggested) or ACL GE-28V-250W (4552)
CS-4: 4 lamps ACL STI-250W-28V (suggerita) or ACL GE-28V-250W (4552)
average lamp life / durata lampada: STI=300 hours / GE=25 hours
luminous flux / : 50.000 lm
colour temperature / temperatura colore: 3200°K
• OPTIC SYSTEM
CS-2: two units - CS-4: four units
beam angle / apertura fascio luminoso: 3,5°
• PAN-TILT
stepper motors 8 or 16 bit: PAN 315° (2,0sec.), global TILT 270° (3,0sec.)
encoder close loop with auto-repositioning / autoriposizionamento tramite encoder
PAN and TILT lock mechanism / blocco meccanico PAN e TILT
• DIMMER
electronic dimmer: 0÷100%
• CONTROL INPUT / SEGNALE DI INGRESSO
standard interface RS485, opto-coupled input
protocol: USITT DMX512
• SETUP
built-in microprocessor with LED display and keys
• POWER SUPPLY / POTENZA INGRESSO
rated voltage / tensione nominale:
100V, 120V, 230V, 240V/50-60Hz with internal voltage selector
rated current / corrente nominale: CS-2: 230V= 2,4A - CS-4: 230V= 4,8A
rated power / potenza nominale: CS-2: 230V= 550W - CS-4: 230V= 1100W
• DMX CHANNELS
CS4 setting:
13ch: all pan/tilt 8 bit
15ch: global pan/tilt 16 bit
single pan 8 bit
20ch: all pan/tilt 16 bit
• DIMENSIONS / DIMENSIONI ( WxDxH) / (LxPxH)
CS-2: mm 1000X300X450 - CS-4: mm 2000X300X450
• WEIGHT / PESO
CS-2: Kgs 19,0 - CS-4: Kg 31,0
Art. CS2/CS4 BASE (optional): for vertical installation
CS2 setting:
9ch: all pan/tilt 8 bit
11ch: global pan/tilt 16 bit
single pan 8 bit
14ch: all pan/tilt 16 bit
