We will program PEDAL INPUT 1 to transmit Sustain . For this procedure you will need a Sustain Pedal. Any
polarity pedal will work.
TIP: The four PEDAL INPUTS may be programed to transmit anything from Sustain to Volume to even
Modulation. A PEDAL INPUT, when connected to a Volume Pedal , can transmit the same CNTRL Values as the
SLIDERS or KNOBS. Remember, you have four PEDAL INPUTS to work with. Imagine in a live set-up, two
volume pedals set-up to control two different sounds. In our set-up you would program PEDAL 1 so its Polarity
would be DN>UP, and PEDAL 2 so it’s Polarity would be UP>DN. By pressing down on both volume pedals, you
would fade out of one sound and fade into the other! All without awkward foot movement.

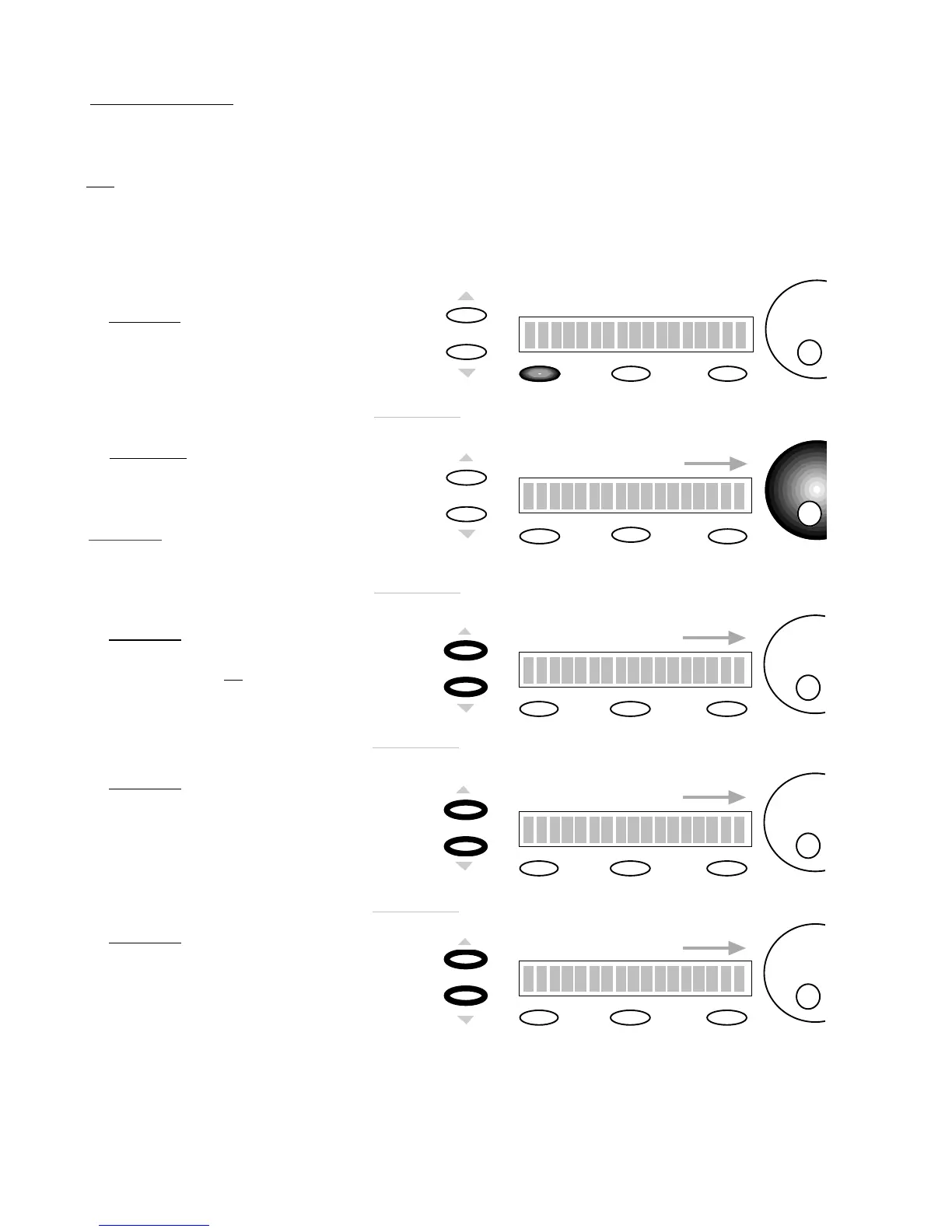

PROCEDURE: PEDAL PROGRAMMING
SCREEN
CHANGE
Edit
Press or Move
Any Controls
1) PRESS EDIT
SCREEN
CHANGE
To adjust the Midi Channel
use the DE dial.
Edit Pedals -1-
Midi Channel : OFF
Edit
2) PRESS PEDAL
Storage
Enter
Storage
Enter
In this example set the Midi
Channel to 1
Remember the sustain
Pedal must be plugged
into PEDAL INPUT 1
SCREEN
CHANGE
CTRL Change 64
Edit
To adjust the CTRL Change
value use the DE dial
3) PRESS PAGE UP
We need to set the
CTRL Change to 64
That's the Midi Spec for
Sustain Pedal.
SCREEN
CHANGE
Edit
To adjust the Value Min.
use the DE dial
4) PRESS PAGE UP
Set the Value Min. to 0
In this case any Value below
<64 will transmit an off Message.
Storage
Enter
Value Min. : 0
SCREEN
CHANGE
5) PRESS PAGE UP
Set the Value Max. to 127
In this case any Value above
>64 will transmit an on Message.
Storage
Enter
Edit Pedals -1-
Edit Pedals -1-
Edit
Storage
Enter
Value Max. : 127
To adjust the Value Max .
use the DE dial
Edit Pedals -1-
