HOW DO I KNOW I HAVE THE RIGHT LEADS

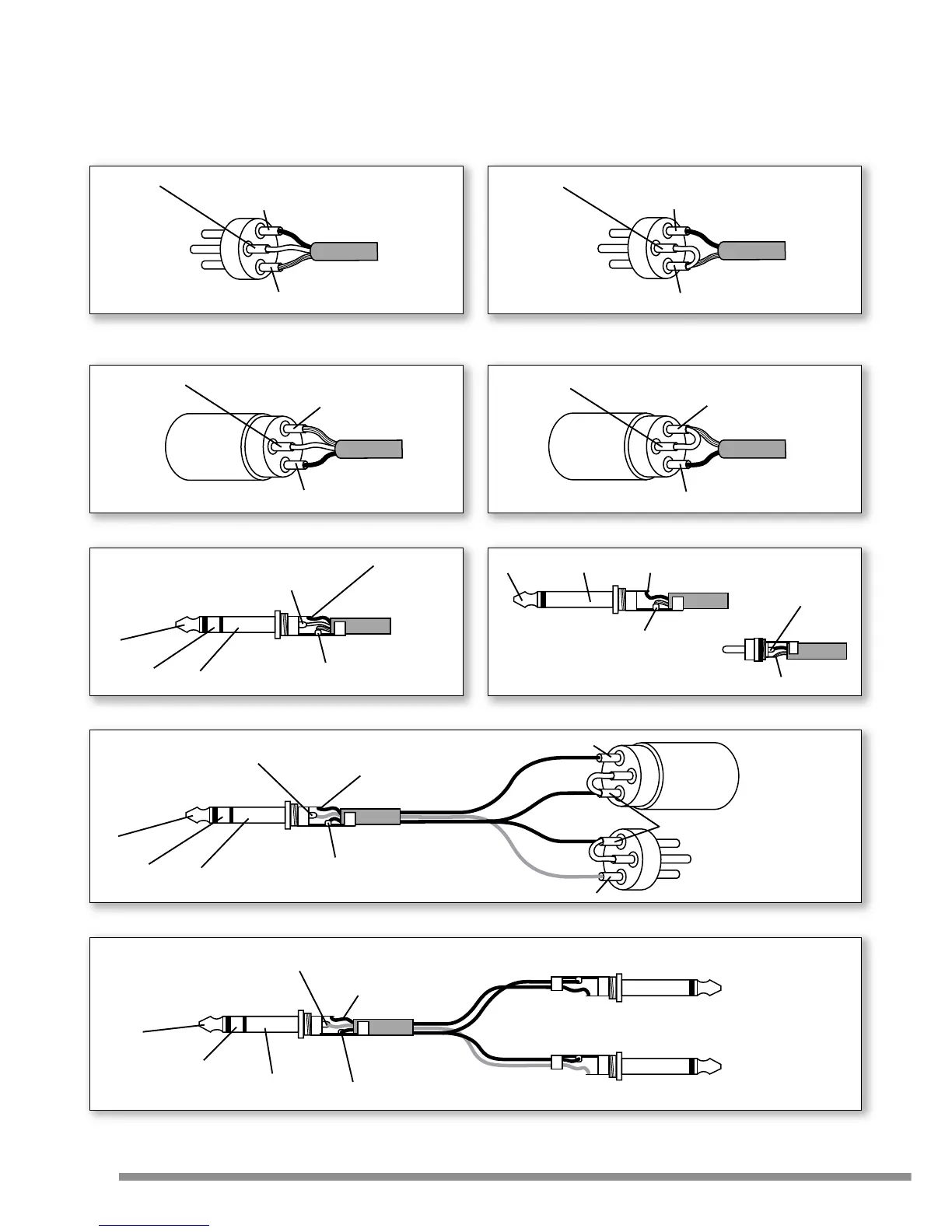

WIRING CONNECTIONS
8
EXPECT THE BEST
www.studiomaster.com
www.studiomaster.com
Pin 3 - Negative / Cold / -Ve phase
Ring - Negative / Cold / -Ve phase
Pin 2 - Positive / Hot / +Ve phase
Pin 1 - Screen / Ground / Earth
Pin 3 - Link to Pin 1
Pin 2 - Positive / Hot / +Ve phase
Pin 1 - Screen / Ground / Earth
Pin 3 - Negative / Cold / -Ve phase
Pin 1 - Screen / Ground / Earth
Pin 2 - Positive / Hot / +Ve phase
Pin 3 - Link to Pin 1
Pin 1 - Screen / Ground / Earth
Pin 2 - Positive / Hot / +Ve phase
Tip - Positive / Hot / +Ve phase
Sleeve - Screen / Ground / Earth
Tip
Ring
Sleeve
Tip - Signal
Tip
Tip - SignalSleeve
Sleeve - Screen / Ground / Earth
Sleeve - Screen / Ground / Earth
Female XLR from
processor output
Male XLR to
processor input
JACK from
processor output
JACK to
processor input
Ring - Output from mixer
Tip - Amplifier Input
Pin 3 - Signal
Pin 1 - Screen / Ground / Earth
Link to Pin 2
Pin 3 - Signal
Sleeve - Screen / Ground / Earth
Tip - Amplifier Input
Sleeve - Screen / Ground / Earth
Tip
Ring
Sleeve
Sleeve
Ring - Output from mixer
Ring
Tip
To connect a Balanced Microphone
to a mic input 3 pin XLR - male
To connect an Unbalanced Microphone
to a mic input 3 pin XLR - male
To connect a Balanced Microphone
to a mic input 3 pin XLR - female
To connect an Unbalanced Microphone
to a mic input 3 pin XLR - female
To connect Balanced equipment to an input or output
To connect an external Processor with XLR input / output to an INSERT (SEND/RETURN) socket
To connect an external Processor with JACK input / output to an INSERT (SEND/RETURN) socket
To connect Unbalanced equipment to an input or output
