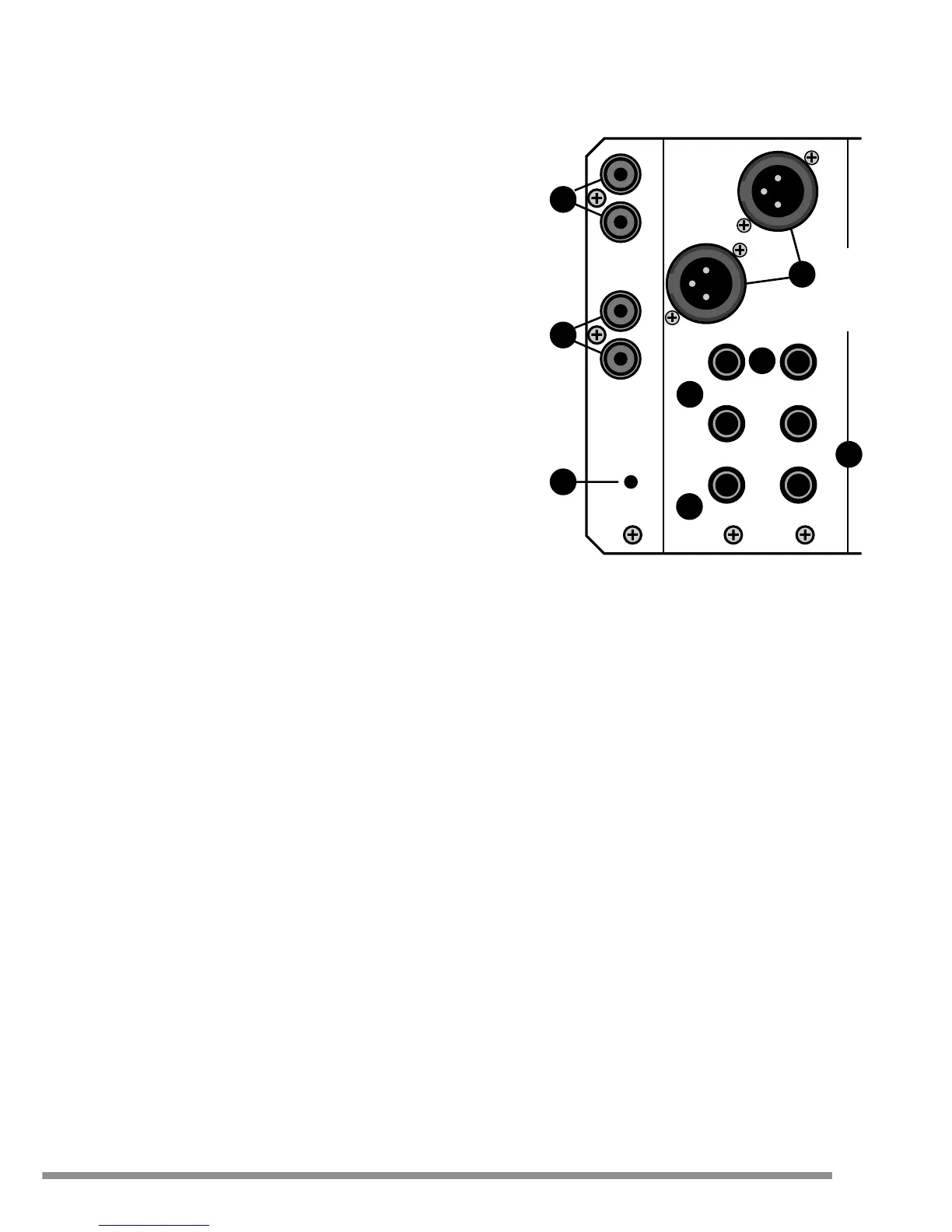

Controls & Features - Rear Panel Output Section
37 RECORD (L&R) : Unbalanced Phono (RCA) line level outputs
that can be connected to an external unit such as minidisc or
other recording equipment.
38 PLAYBACK (L&R) : Unbalanced Phono (RCA) line level
Left/Right inputs that route the output of a minidisc or CD player
back into the 162BPX main mix. Nominal input level -10dBV.
Note : Some recorders (minidisc / CD-R) internally route the input
signal back to the playback connectors to allow monitoring while
recording. If the machine you intend to use operates in this way,
disconnect the playback connectors from the 162BPX or a
feedback loop will occur.
39 +48V PHANTOM POWER : This recessed switch connects
standard 48V phantom power to mic inputs 1 to 12 for use with
capacitor/condenser mics or active DI boxes that require phantom
power.
Unbalanced mics must not be used when the phantom power is
switched on as damage may occur. The switch is recessed to
prevent accidental operation and should be operated using a
plastic ball-point pen or similar instrument. A warning LED (32) on
the front panel indicates that the Phantom Power is turned on.
If any channels require the 48V to be disconnected from channels
1 to 12 or added to channels 13 to 16 see options section.
40 OUTPUT (L&R) : Balanced XLR connectors to feed main PA
amplifier / multitrack recorder etc.
41 INSERT : A send/return for the main output on a single 1/4" TRS
(tip, ring, sleeve) jack. Use a 'Y' - cable to connect the tip to the
input and the ring to the output of a serial effects device
(compressor, equaliser, etc).
42 AUX SEND : Balanced compatible output on 1/4" TRS jack.
43 MON SEND : Balanced compatible output on 1/4" TRS jack.
44 AUX INPUT : Balanced stereo input on 1/4" TRS jacks for
minidisc/CD players, effect returns, drum machines etc.
For mono operation use LEFT/MONO connector only.
