6

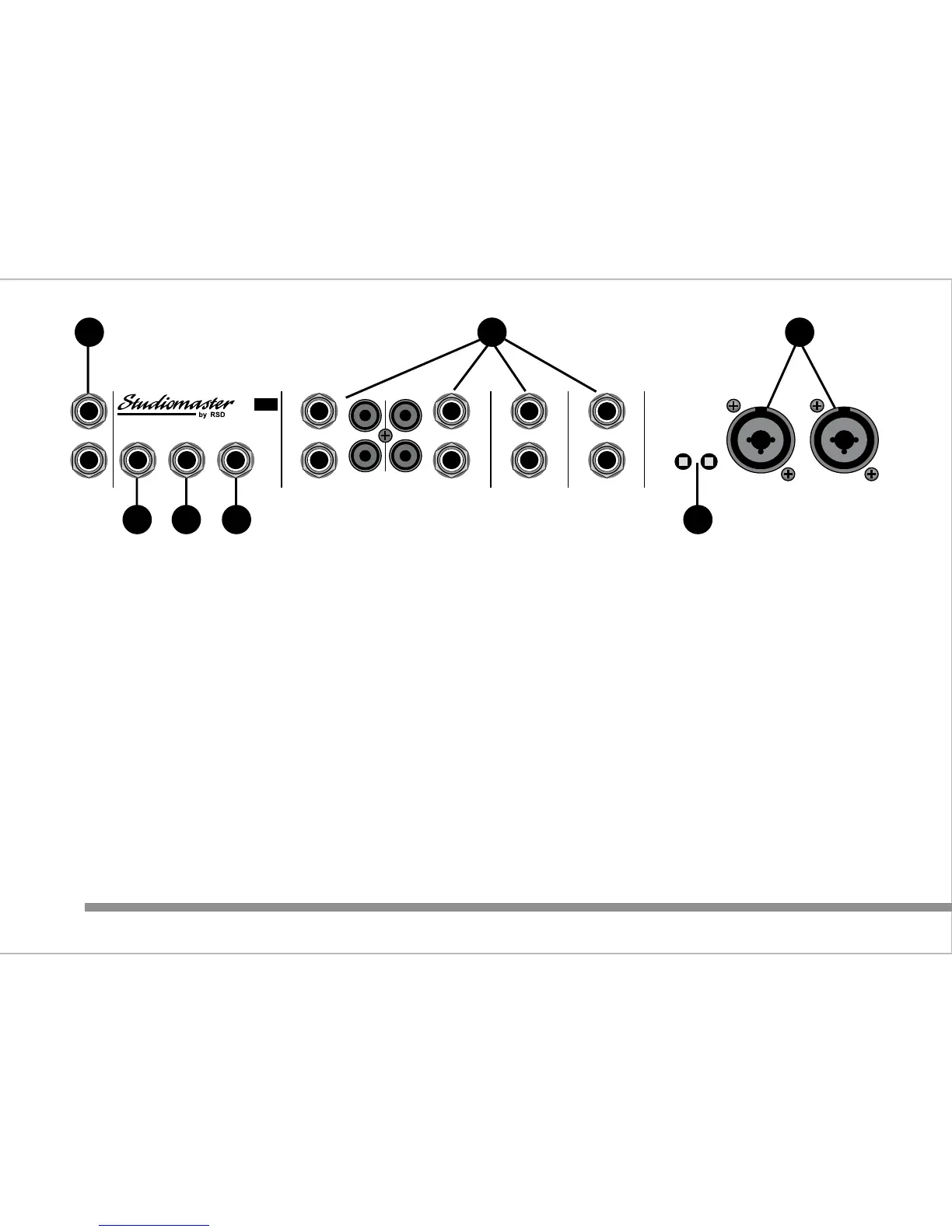

Controls & Features - Rear Panel
1. Input 3&4 : Combination XLR and Jack sockets
suitable for use with balanced low impedance microphones or
line level signals such as CD, keyboards, radio mics, or mini disc
players. 17V phantom power is available for suitable condenser
microphones via the adjacent switch.
2. +17V Phantom Power Switches :
For use with suitable condensor microphones. Most modern
condensor microphones have a working voltage range of 9 to
50V. However, if in doubt check with the microphone
manufacturer.
3. Stereo Inputs 5/6, 7/8, 9/10 & 11/12 :
1/4" Jack sockets for use with balanced or unbalanced line level
signals. If a mono signal is used, connect to the left input which
will automatically feed the signal into both the left and right
inputs. Inputs 9/10 and 11/12 have additional RCA 'phono' input
connectors suitable for unbalanced signals.
4. DSP ON/OFF Footswitch (C3X only) :
TS 1/4" Jack socket for the connection of an external footswitch
(not supplied). The DSP section can be turned on and off by the
footswitch. A latching on/off type footswitch should be used.
5. MON output :
TRS 1/4" balanced compatible output. Use 3 pole TRS or 2 pole
TS jack plugs.
6. AUX output :
TRS 1/4" balanced compatible output. Use 3 pole TRS or 2 pole
TS jack plugs.
7. INSERT :
TRS 1/4" jack socket send and return. Ideal for connecting
137
