Studiomaster C3X - Dsp Level; Mon Level

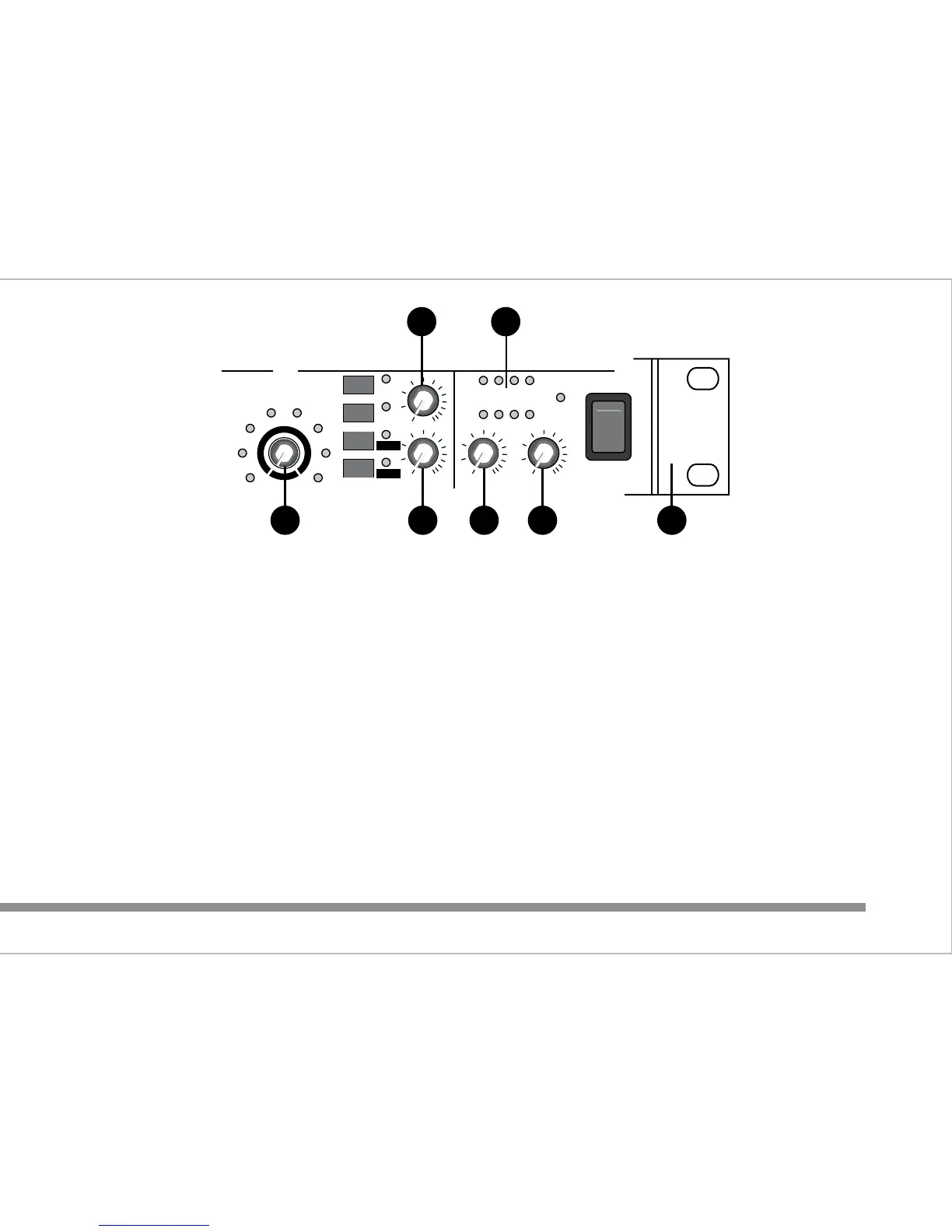

e) Rotary Encoder :
Used to select the program required in REVERB or DELAY
modes.
f) DSP LEVEL :
Adjusts the level of the effect from the DSP to the MASTER
output.
g) DSP TO MON :
Adjusts the level of the effect from the DSP to the MON output.
This is useful for adding reverb or delay effects to the stage
monitor or headphone mix.
Note : The last selection made in reverb and delay mode will be
remembered next time the unit is turned on.
10. MASTER level :
This controls the output volume to the external amplifier and / or
recorder.
11. MON LEVEL :
This adjusts the volume sent to the MON output.
12. Bargraphs :
Left and right 4 segment LED display showing the output signal
level.
13. Rack mounting brackets :
The unit is supplied ready for installation into a standard 19"
rack. For free standing use, remove the 3 philips screws on each
bracket. Retain the brackets and screws for future use.
5
9f
9e 9g 11
12
10 13
ADT
VOCAL1
S REV
VOCAL2
VOCAL3
L REV
PLATE1
PLATE2
REVERB
DELAY
REGEN
DSP ON
LEVEL
TO MON
MON LEVEL
POWER
+100dB-10-20
DSP
MASTER
010010
010
010
1
0
m
s
2
5
0
m
s
7
2
0
m
s
L
R
I
O
