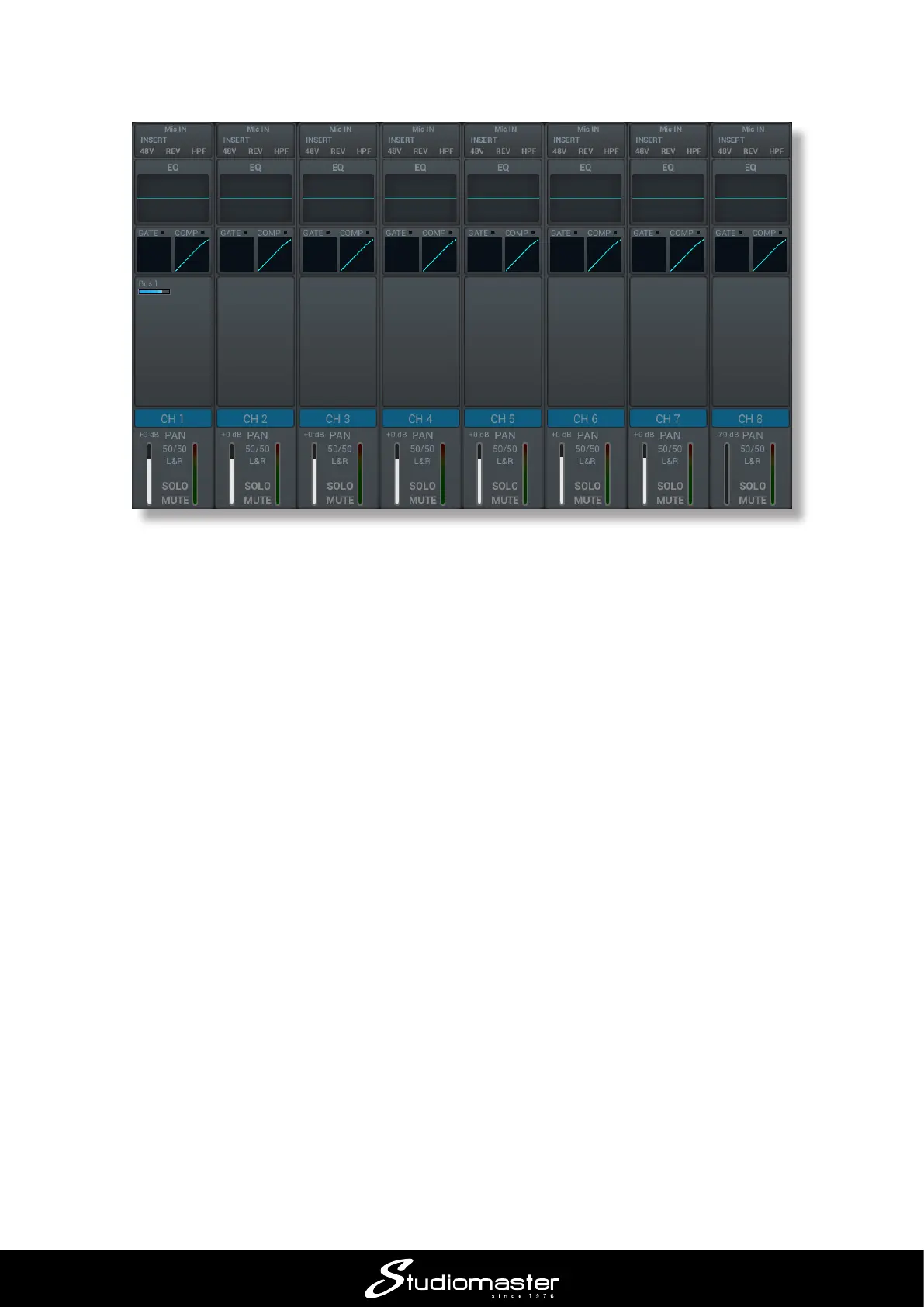

Press the INPUT 1-8 LAYER button to return to the Input Channels Page. Note that Channel 1 now
also has a small blue bar indicating the level that is being sent to Bus 1.
6. If the lead singer needs to hear other performers in his/her monitor mix, repeat Steps 1 to 4
above for each of the other vocalists or instruments needed. For example, if the singer needs to
hear the electroacoustic guitar in the example, select Input Channel 4 in Step 1, and send some
of its signal to Bus 1 in exactly the same way.
You can build up a monitor mix like this with as many instruments as required. The overall level
being fed to the monitor is controlled by Fader 1 in the Bus 1-8 layer: the individual contributions
to the monitor mix are controlled by the Bus 1 Send levels on the Routing pages for each input
channel.
