Stulz BNB1000 - 7 Drawings; Layout Drawing of Humidifier

(©January, 2008)
A
ir Technology Systems, Inc.
BNB Ultrasonic Humidifier Installation, Operation & Maintenance Manual
7-1
7.0 DRAWINGS

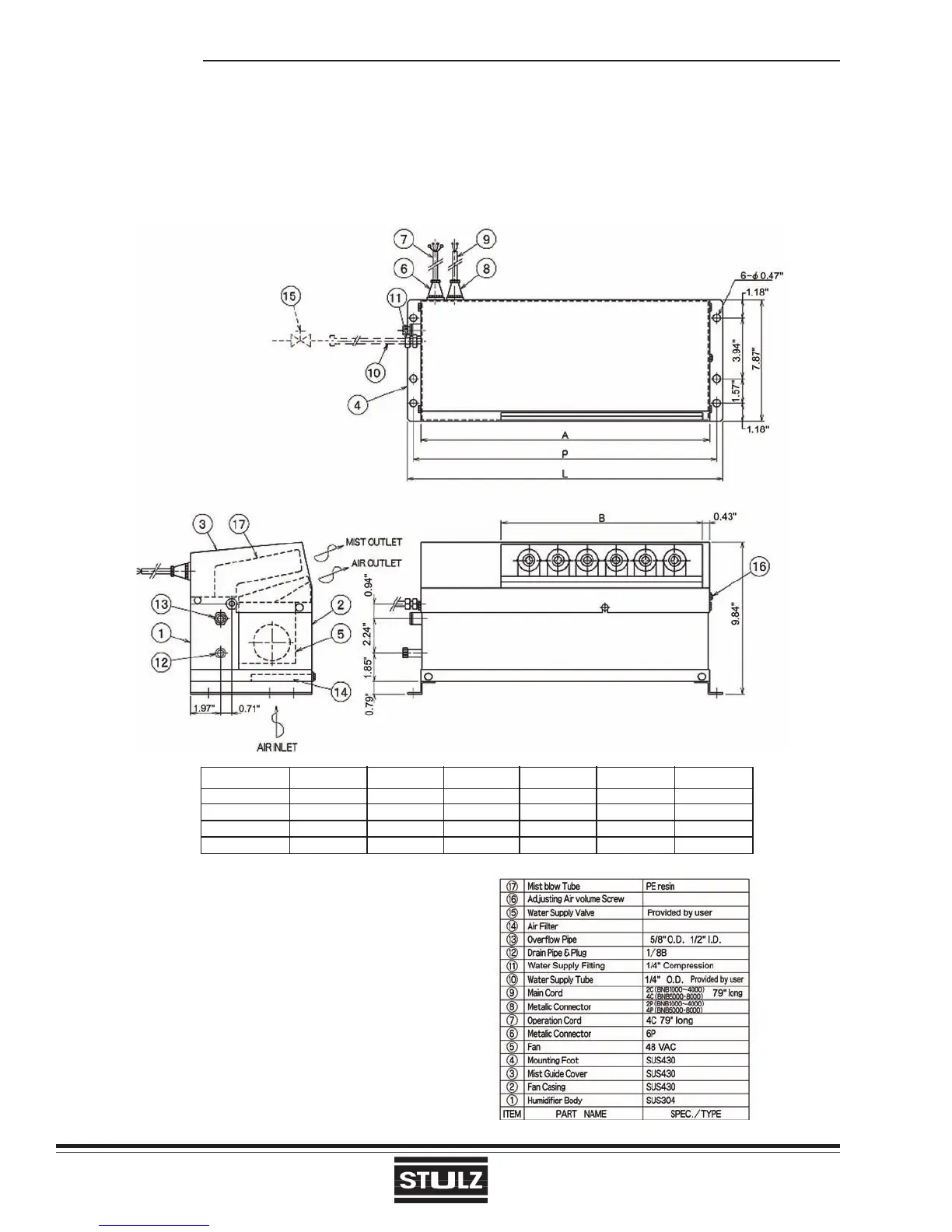

7.1 Layout Drawing of Humidifier
Model BNB1000 BNB2000 BNB3000 BNB4000 BNB5000 BNB8000
Dimension “A” 10.12” 14.49” 18.78” 23.11” 27.44” 40.43”
Dimension “B” 4.21” 8.54” 12.87” 17.20” 21.54” 34.53”
Dimension “L” 11.81” 16.14” 20.47” 24.80” 29.13” 42.13”
Dimension “P” 11.02” 15.34” 19.68” 24.02” 28.35” 41.34”
