6.5 Condensate drain connection
Condensate drain connector is placed on the rear side of the drain pan, under the evaporator (or CW) coil. Connection
diameter is 16 mm for all models. If condensate pump is not present, a PVC pipe with 2 m length is provided. This
pipe has to be routed outside the unit through the opening on its base used also for pipes and electric cables.

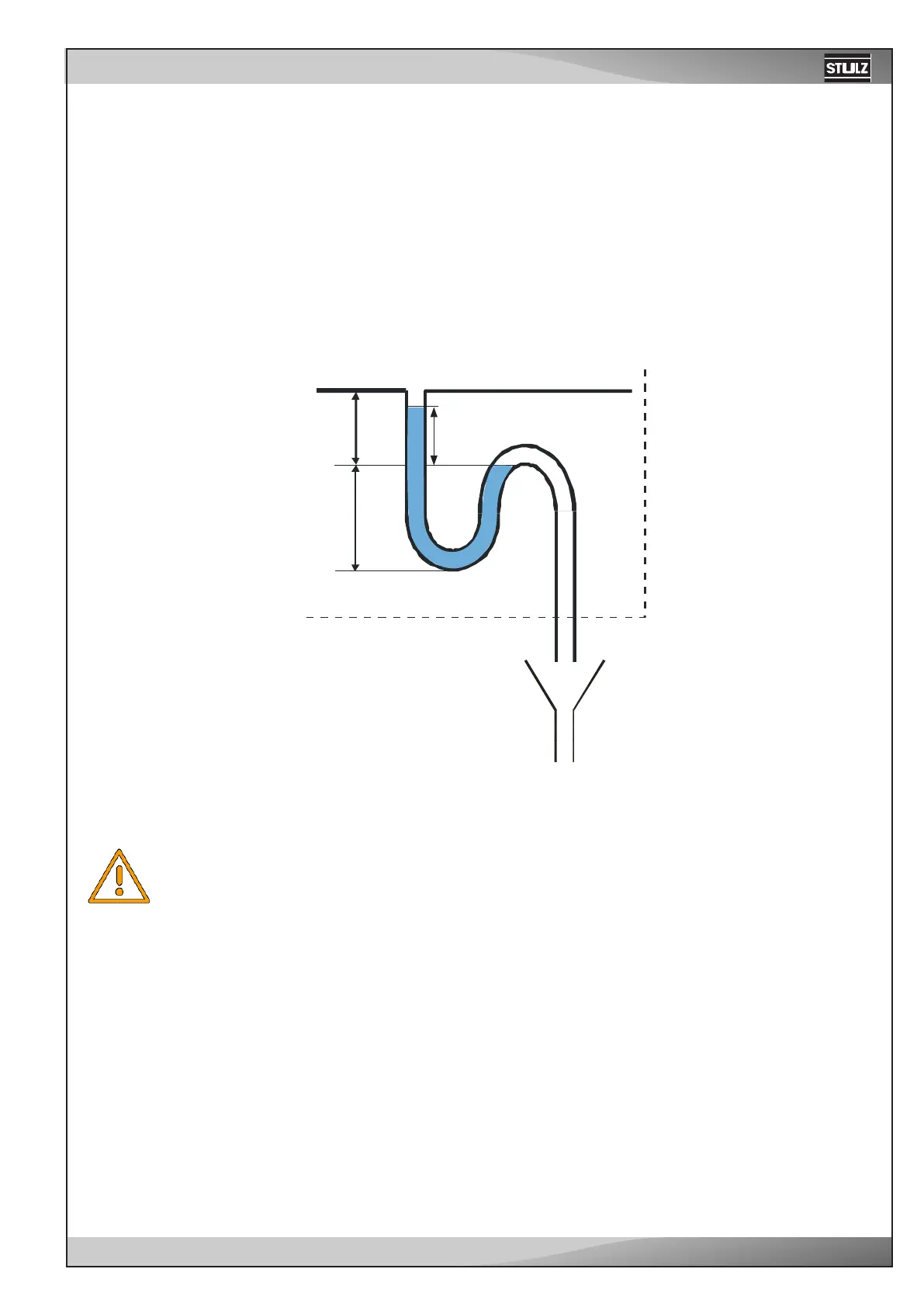

Make a siphon according to the following instruction:
Siphon installation
Ensure that there is a sufficient height difference between the fan pan and the upper bow of the siphon or the highest
part of the drain tube, in order to avoid a water column in the drain siphon caused by the pressure in the suction area
of the A/C unit, which prevents the draining of the condensate water.
Connect the condensate water drains to the local waste water system. Ensure a 2% gradient towards water drain
Comply with the regulations of the local water supply authority.
Unit limit
Possible installation at the
customer side: funnel
