Stulz CyberRow - Page 14

14
STULZ CyberRow
23.4"
77.8"
42.1"
AIR IN
AIR OUT
CONDENSATE
CONNECTION
PIPING
CONNECTIONS
POWER
CONNECTIONS
HUMIDIFIER
CONNECTIONS
CONDENSATE
CONNECTION
HUMIDIFIER
CONNECTIONS
POWER
CONNECTIONS
PIPING
CONNECTIONS

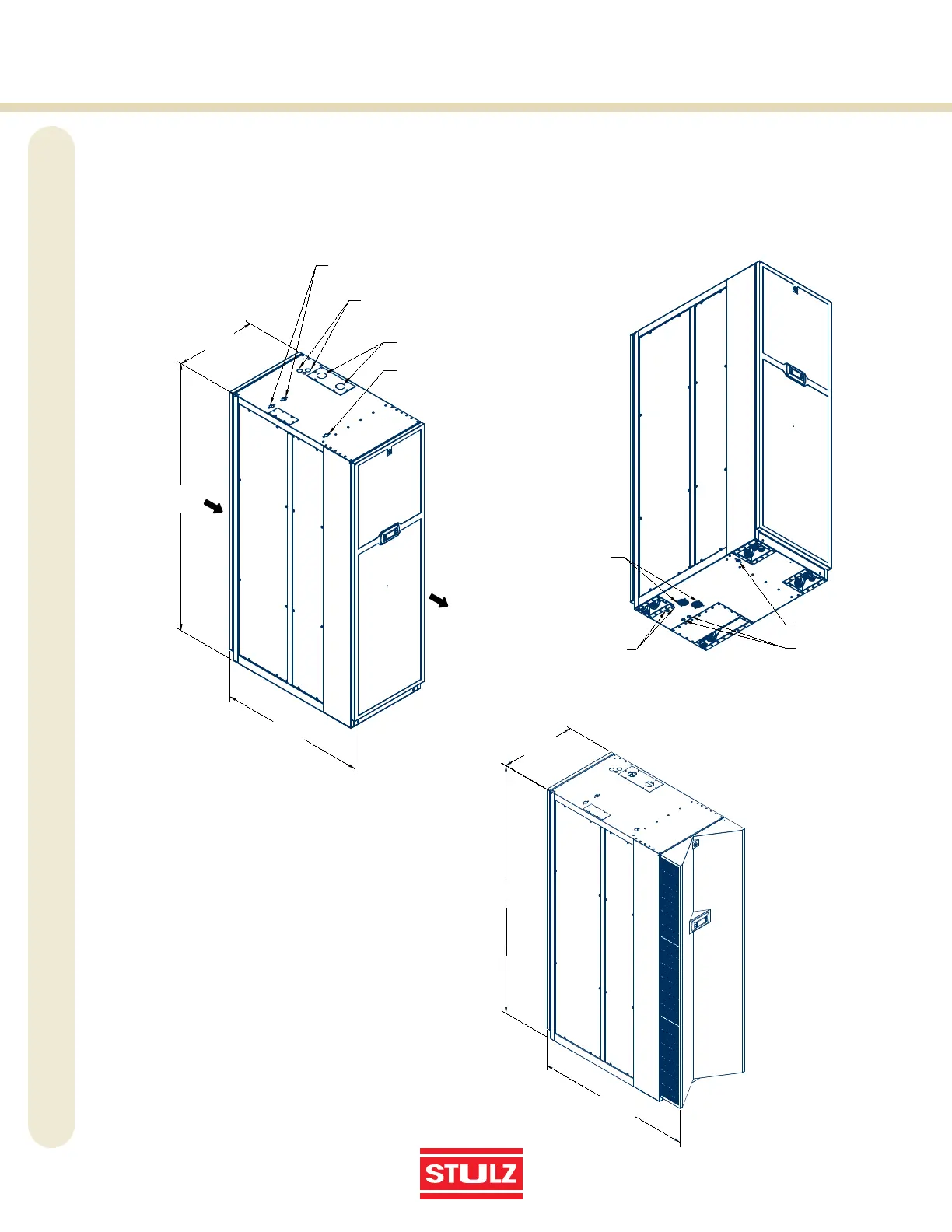

Top Piping Option
Bottom Piping Option
Side Diverted Front Panel Option
HUMIDIFIER
CONNECTIONS
POWER
CONNECTIONS
PIPING
CONNECTIONS
CONDENSATE
CONNECTION
AIR IN
AIR OUT
PIPING
CONNECTIONS
POWER
CONNECTIONS
HUMIDIFIER
CONNECTIONS
CONDENSATE
CONNECTION
23.42
77.80
48.30
42.1"
23.4
77.8
48.3
23.4"
77.8"
48.3"
23.4"
77.8"
42.1"
CRS-091-(A,-W,-G)-FC, -AWS
DIMENSIONAL DATA
