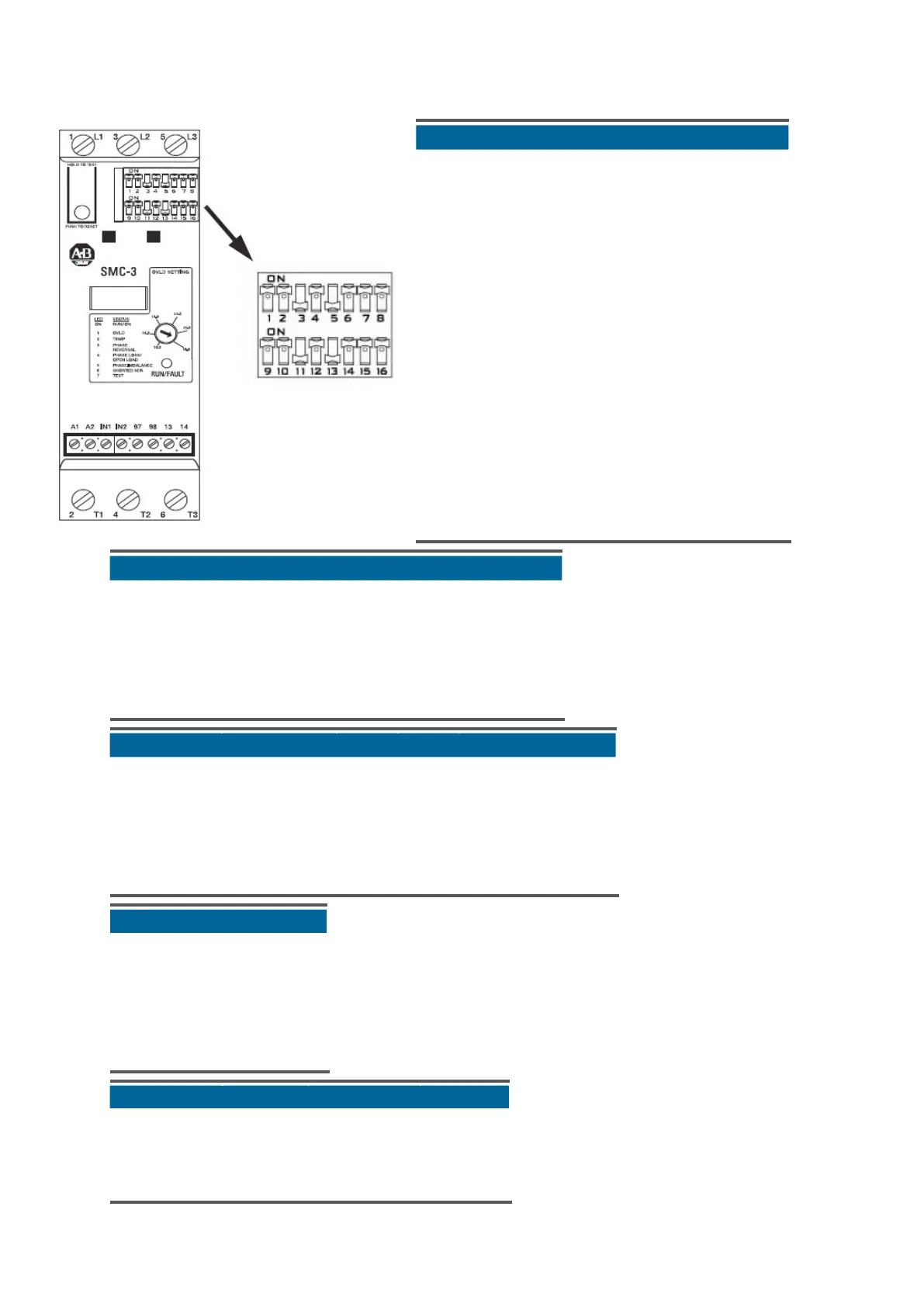

DIP switch configuration
Position number Description
1 Start time
2 Start time
3 Start mode (current limit or soft start)
4 Current limit start setting (when selected) or Soft
start initial torque setting (when selected)
5 Current limit start setting (when selected) or
Soft start initial torque setting (when selected)
6 Soft stop
7 Soft stop
8 Not used
9 Kick start
10 Kick start
11 Overload class selection
12 Overload class selection
13 Overload reset
14 Auxiliary relay #1 (normal or up-to-speed)
15 Optional auxiliary relay #2 (normal or up-to-speed)
16 Phase rotation check
Start time Current limit start setting ( when selected)
DIP switch number DIP switch number
1 2 Time [S] 4 5 Current limit % FLA
OFF OFF 2 OFF OFF 150 %
ON OFF 5 ON OFF 250 %
OFF ON 10 OFF ON 350 %
ON ON 15 ON ON 450 %
Start time (current limit or soft start) Soft start initial torque setting (when selected)
DIP switch number DIP switch number
3 4 5 Initial torque % LRT
OFF Current limit OFF OFF 15 %
ON Soft start ON OFF 25 %
OFF ON 35 %
ON ON 65 %
Overload class selection
DIP switch number
11 12 Trip class
OFF OFF OFF
ON OFF 10
OFF ON 15
ON ON 20
Overload reset Auxiliary relay #1
DIP switch number DIP switch number
13 Reset 14 Setting
OFF Current limit OFF Normal
ON Soft start ON Up-to-speed
