INSTALLING LOGS
WARNING: Failure to position the parts
in accordance with these diagrams or failure
to use only parts specically approved with
this heater may result in property damage or
personal injury.
CAUTION: After installation, and
periodically thereafter, check to ensure that
no ame comes in contact with any log. With
the heater set to high, check to see if ames
contact any log. If so, reposition logs
according to the log installation instructions
in this manual. Flames contacting logs will
create soot.
Fig. 18 - Installing Log Set
IMPORTANT: Make sure log does not cover any
burner ports (see Fig. 18). It is very important
to install the logs exactly as instructed. Do not
modify logs. Use only logs supplied with heater.

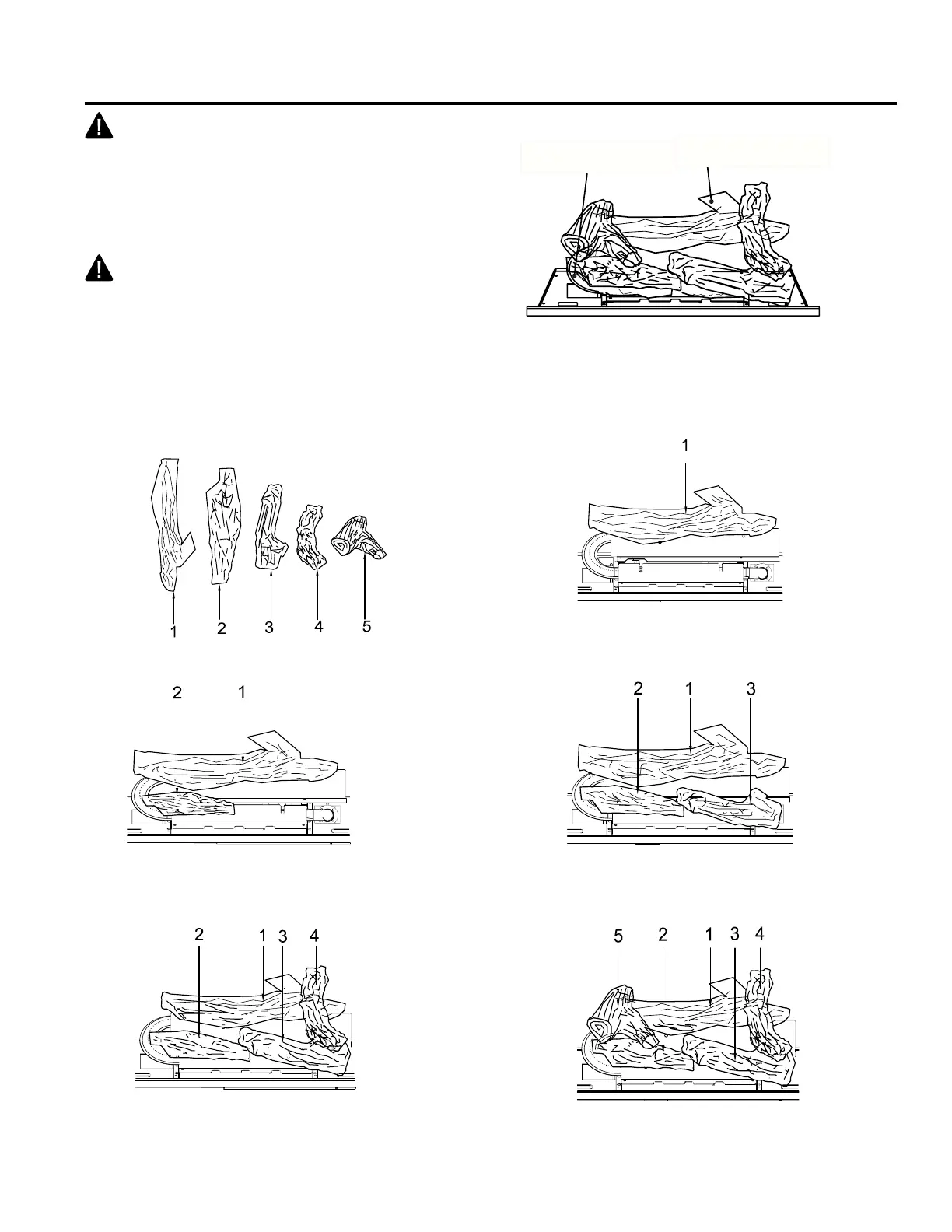

STEP 1: Install log 1 onto the two slots in
middle plate
All logs
STEP 2: Install log 2 onto the two slots in
left plate
STEP 3: Install log 3 onto the two slots in
right plate
STEP 4: Install the recessed hole on the
bottom of log 4 onto the pin on
log 1 and place on log 2
STEP 5: Install the recessed hole on the
bottom of log 5 onto the pin on log 1
and place on log 3
Burner Ports Log Set
