Planning Information
Wine Storage Model 427
Cabinetry dimensions shown in the
standard full-view glass door application.
Dimensions in parentheses are in
millimeters unless otherwise specified.
8

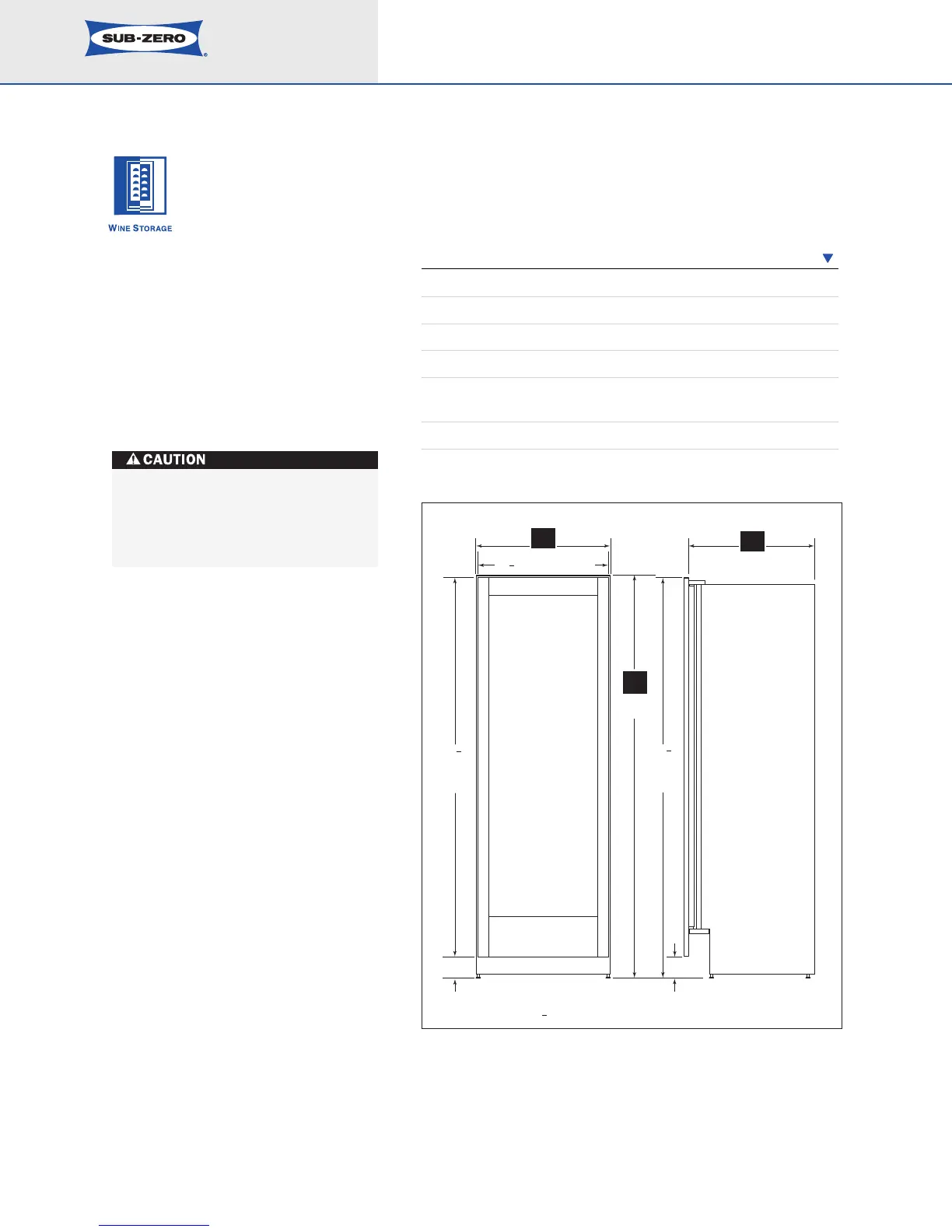

To give you a better idea of the exact space the Model
4
27 needs and how the panels fit in relationship with the
unit, refer to the following chart and illustration
.
* INCH (13) ADJUSTMENT IN LEVELING LEGS
MODEL 427 CABINETRY DIMENSIONS
1
2
FRONT VIEW SIDE VIEW
(UNIT DIMENSION)
80
(
2032)
27
(686)
24
(
610)
DOOR PANEL
(679)
3
4
26
79
7
8
(2029)
TRIMMED
DOOR
FINISHED OPENING
75
7
8
(1927)
4
(102)
TOE KICK
4
(102)
TOE KICK
FINISHED
OPENING
DOOR
PANEL
MODEL 427 PANEL SPECIFICATIONS
Door Panel (W x H) 26
3
/4" (
679)
x 75
7
/8" (
1927)
Width of Top Rail 3
3
/4" (95) min
Width of Bottom Rail 8" (203) min
Width of Stiles 2
1
/4" (57) min
Door Panel Weight Limit Glass Door – 20 lbs (9 kg)
Solid Door – 40 lbs (18 kg)
Panel Thickness
5
/8" (16) min
IMPORTANT NOTE: Wine Storage
models with a solid door are available
a
s a special order and require 90 days
for delivery. When ordering panels for
a solid door unit, follow the overall
panel dimensions indicated in the
chart, rail and stile dimensions do not
apply.
A solid panel must not be
installed on a glass door unit, as
this may cause moisture to form
behind the panel.
