COMPONENT INFORMATION
2-26
UNIT ROLLER BASE ASSEMBLY
501R After S/N M834654/P835904
501F After S/N M834904/P836154
511 After S/N M830454
532 After S/N M824754/P827404
550 After S/N 824354/832954
561 After S/N 825954/P823654
590 Regardless of Serial Number
When the front leveling legs screwed all the way
up into the base assy., the unit can be rolled in or
out of its installation.
CAUTION
Floor should be protected with appropriate
material to avoid damage from very heavy
appliance when this unit is moved.

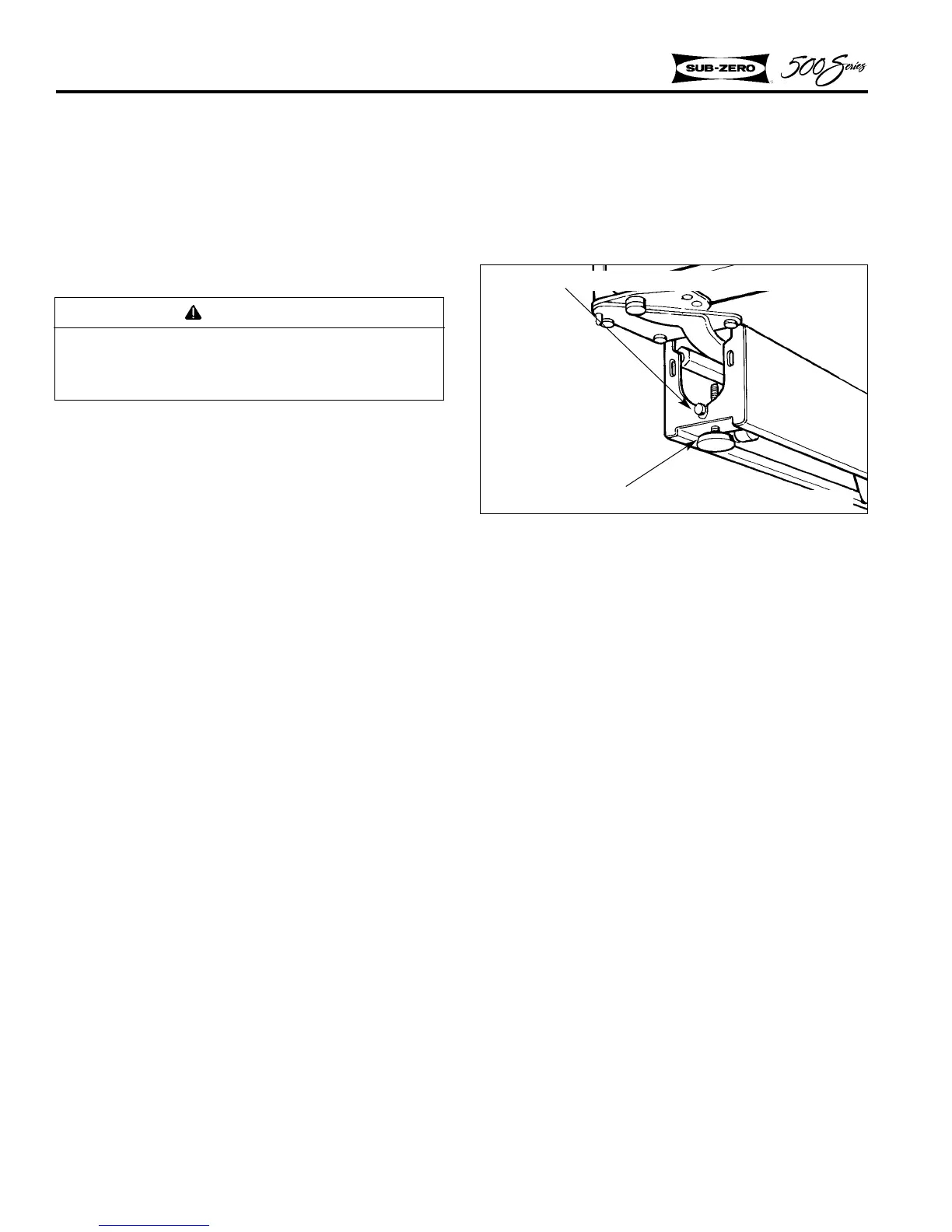

Figure 2-70. Roller Base Assy.
Turn counterclockwise to raise front of unit
Turn clockwise to raise rear of unit
Use the adjustment bolt (located in front of the
base assy.) to level the rear of the unit (Figure 2-
70).
Turn the adjusting bolt clockwise to raise the back
of the unit; turn counterclockwise to lower the
back of the unit.
