Sub-Zero 601R Use & Care Information

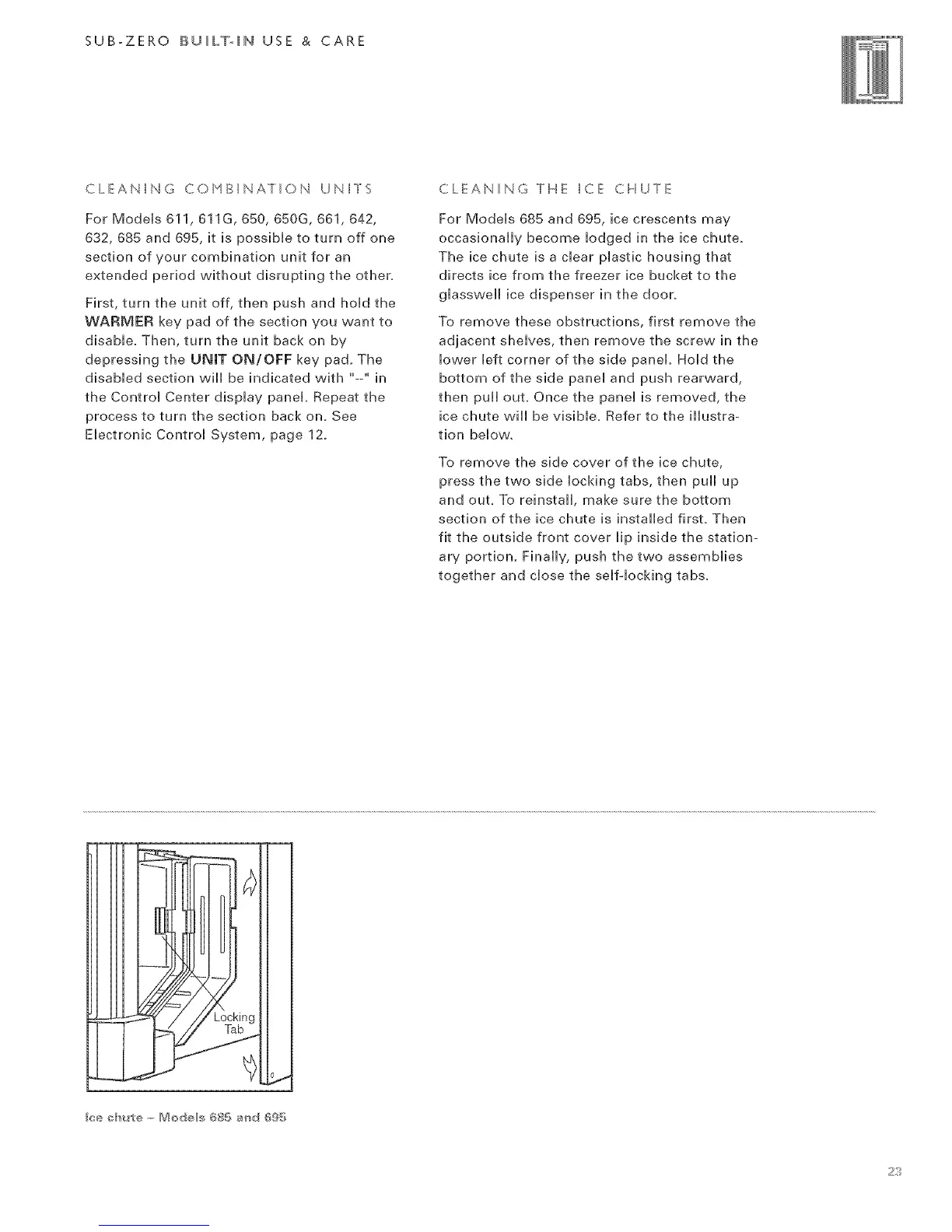

SUB-ZEROBU_LToINUSE& CARE
CLEANINGCONBINA]ION UNI°IS
For ModeHs 611,611G, 650, 650G, 661,642,
632, 685 and 695, it is possiMe to turn off one
section of your combination unit for an
extended period without disrupting the other.
First, turn the unit off, then push and hoM the
WARMER key pad of the section you want to
disaMe. Then, turn the unit bacH<on by
depressing the UNIT ON/OFF key pad. The
disaMed section will be indicated with "-" in
the ControH Center dispHay panel Repeat the
process to turn the section back on. See
EHectronic ControH System, page 12.
CLEANING THE ICE CHUTE
For Models 685 and 695, ice crescents may
occasionally become lodged in the ice chute.
The ice chute is a clear plastic housing that
directs ice from the freezer ice bucket to the
glasswell ice dispenser in the door.
To remove these obstructions, first remove the
adjacent shelves, then remove the screw in the
lower left corner of the side panel. Hold the
bottom of the side panel and push rearward,
then pull out. Once the panel is removed, the
ice chute will be visible. Refer to the illustra-
tion below.
To remove the side cover of the ice chute,
press the two side locking tabs, then pull up
and out. To reinstall, make sure the bottom
section of the ice chute is installed first. Then
fit the outside front cover lip inside the station-
ary portion. Finally, push the two assemblies
together and close the self-locking tabs.
23

Sub-Zero 601R Specifications

General

Type	Refrigerator
Height	84 inches
Energy Star Certified	No
Door Alarm	Yes
Lighting	LED
Product Type	Built-In Refrigerator
Installation Type	Built-In
Brand	Sub-Zero
Model	601R
Configuration	All Refrigerator
Ice Maker	No
Water Dispenser	No
Depth	24 inches
Door Style	Panel Ready
Finish	Panel Ready
Width	30 inches
