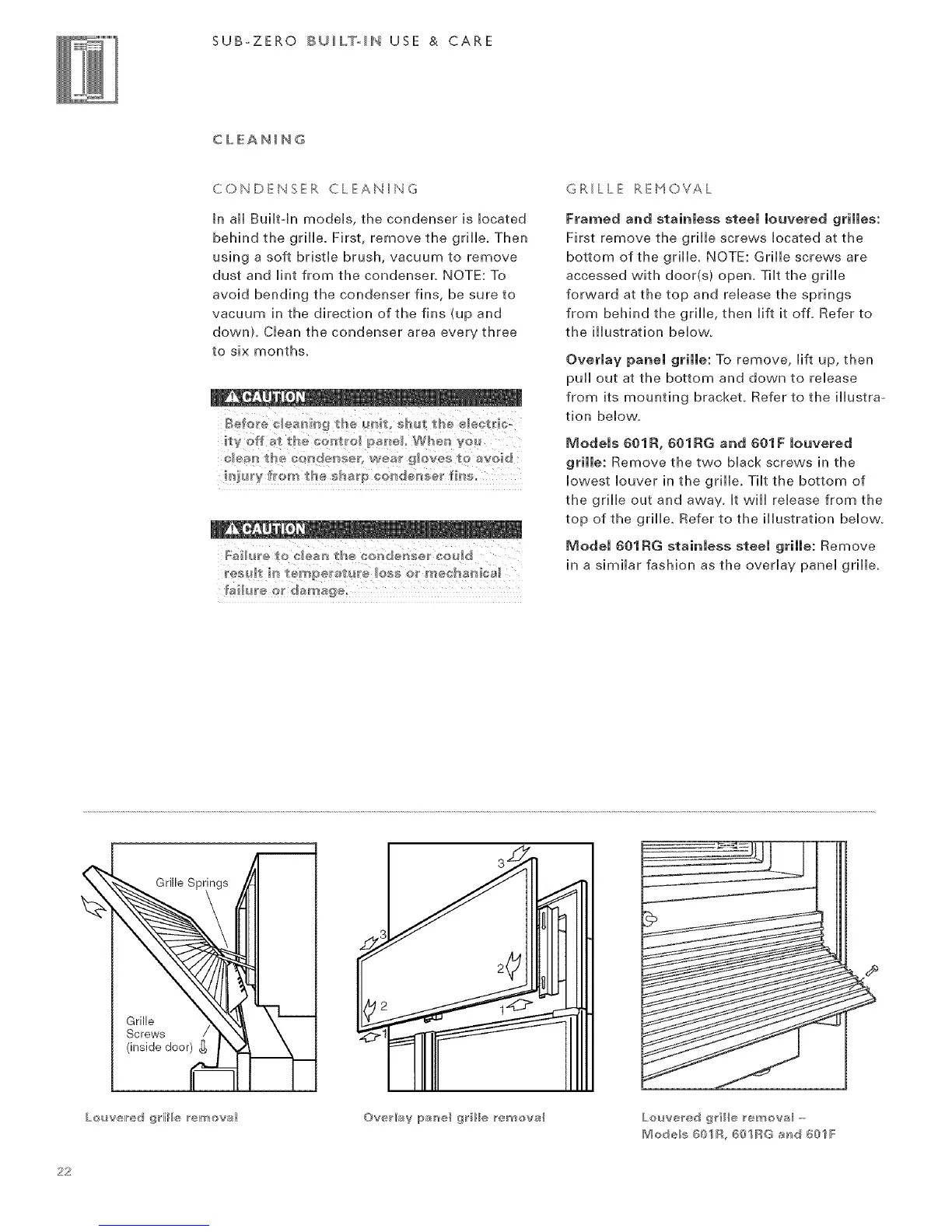

SUB-ZERO BU_LT_IM USE & CARE
CLEANING
CONDENSER CLEANING
in aii Built-In modeis, the condenser is iocated
behind the grHie. First, remove the grHie. Then
using a soft bristie brush, vacuum to remove
dust and Hint from the condenser. NOTE: To
avoid bending the condenser fins, be sure to
vacuum in the direction of the fins (up and
down). Ciean the condenser area every three
to six months.
Befel'e cleaning the/mit; shat th e ek_¢t_ic
ity off at the _ont_'ol _?ane!_ W_'_en yo_
_leI_ tI_e oondenser= wear gloves to a_oid
!!'_u_y '_rem £_e shar_ cow, denser IH_s,
k Ti 7 il
I_ail_JIe £0 dear_ ¢Ise _sonde_ser Qo@d
Ia!!ul'e or dalr_/lage I
GRILLE REMOVAL
Framed and stainless steel louvered grilles:
First remove the grille screws located at the
bottom of the grille. NOTE: Grille screws are
accessed with door(s} open. Tilt the grille
forward at the top and release the springs
from behind the grille, then lift it ell Refer to
the illustration below.
Overlay panel grille: To remove, lift up, then
puii out at the bottom and down to release
from its mounting bracket. Refer to the illustra-
tion below.
IVlodels 601R, 601RG and 601F louvered
grille: Remove the two black screws in the
lowest louver in the grille. Tilt the bottom of
the grille out and away. it will release from the
top of the grille. Refer to the illustration below.
Model 601RG stainless steel grille: Remove
in a similar fashion as the overlay panel grille.
Grille Springs
Grille
Screws
(inside door) _
J
Louvelred gNil_e _e_nova_ OveNlay II_a_el gyH_e ire_eva_
Mode_s 601R, 6@IRG and 601F
22

Sub-Zero 601R Specifications

General

Type	Refrigerator
Height	84 inches
Energy Star Certified	No
Door Alarm	Yes
Lighting	LED
Product Type	Built-In Refrigerator
Installation Type	Built-In
Brand	Sub-Zero
Model	601R
Configuration	All Refrigerator
Ice Maker	No
Water Dispenser	No
Depth	24 inches
Door Style	Panel Ready
Finish	Panel Ready
Width	30 inches
