7-15
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
Component Access / Removal
#3758407 - Revision B - August, 2006

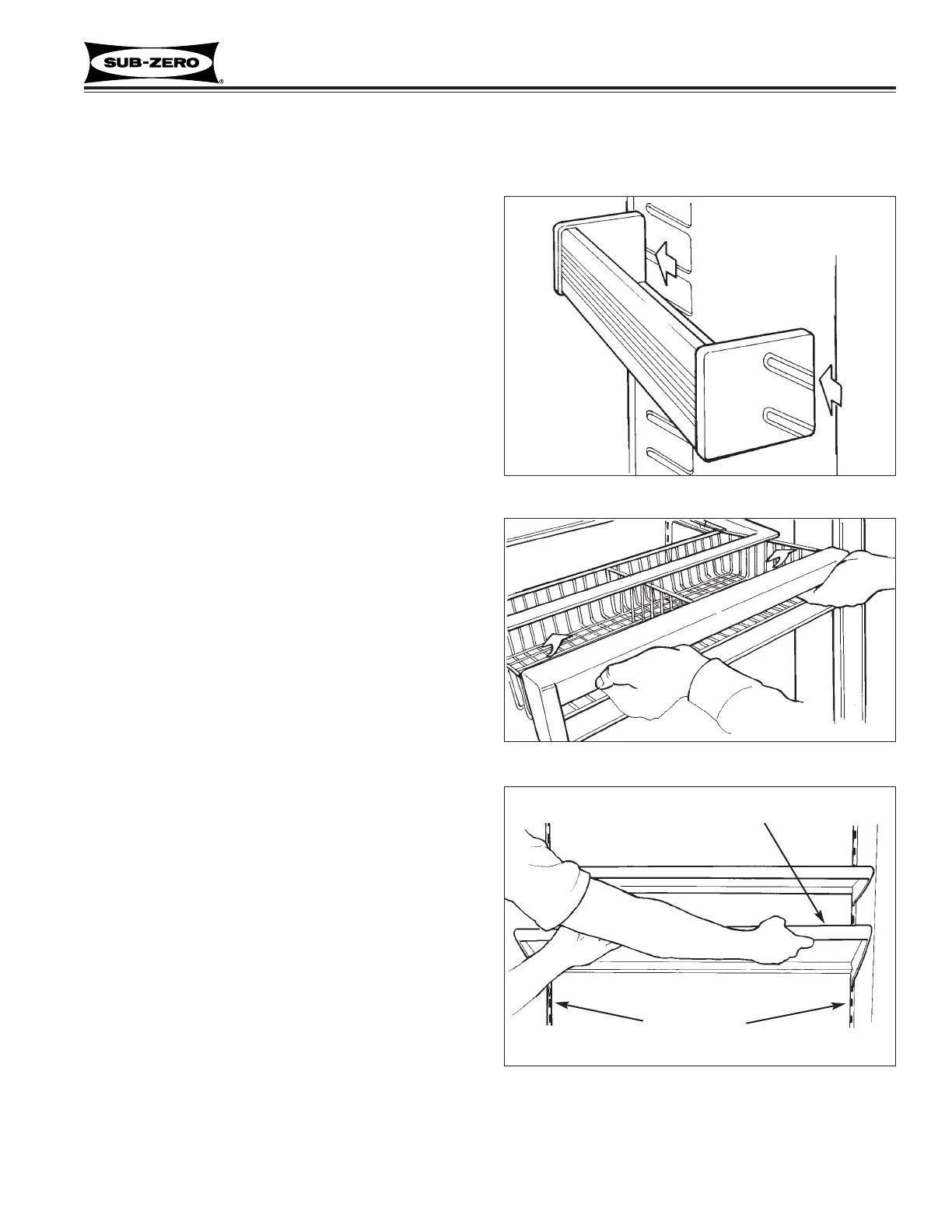

Door Shelf & Dairy Compartment Assembly
Removal and Adjustment (All Models)
Removal and adjustment of door shelves and dairy
compartment assemblies is achieved by sliding the
grooves in the end caps over the molded retaining ribs
of the door liner.
Lift up and out to remove, push in and down to install.
(See Figure 7-32)
Utility Basket (All Models)
Utility baskets ride on slides under one refrigerator com-
partment shelf.
Remove the utility basket from under the shelf assem-
bly by pulling basket out and lifting at front (See Figure
7-33). Reverse to reinstall.
Compartment Shelf Removal and Adjustment
(All Models)
Remove and adjust shelf by tilting up at front while lift-
ing the back up and out of the shelf ladders (See Figure
7-34).
To reinstall, tilt front of shelf up and align hooks at back
corners with slots in shelf ladders, then insert hooks
into slots and lower front of shelf.
Figure 7-34. Compartment Shelf
Shelf Ladders
Shelf
Figure 7-32. Door Shelf
Figure 7-33. Utility Basket
REFRIGERATOR INTERIOR COSMETIC / MECHANICAL (ALL MODELS)
