Component Access / Removal
#3758407 - Revision B - August, 2006
Humidity Drawer Carriage Assembly
(All Models)
Channels on each side of the carriage assembly rest on
top of the two crisper slide assemblies. At the top rear
and front sides of each channel are notches that fit over
tabs on the crisper slide assemblies. These notches
and tabs assure proper location of the carriage assem-
bly on the slides. To hold the carriage assembly firmly
in place, a small bead of silicone is applied to the top
each crisper slide assembly.
To remove the humidity drawer carriage assembly (See
Figure 7-38):
1. With a small flat-blade screwdriver, or similar tool,
wedged between front of carriage assembly and
front of crisper slide, pry carriage assembly up to
break silicone seal.
2. Lift carriage assembly up at front to disengage
notches from tabs at front of slide assemblies.
3. Pull carriage assembly forward to disengage notch-
es from tabs at rear of slide assemblies.
Small Storage Drawer
(632-2, 642-2, 661-2, 685-2, 695-2)
Small storage drawer assemblies ride on roller/slide
assemblies.
To remove a small storage drawer assembly (See
Figure 7-39):
1. Pull drawer open until it stops.
2. Lift front of drawer up.
3. Pull drawer out further to bypass stop.
4. Drop front of drawer down while lifting rear rollers
out of the roller/slide assemblies.

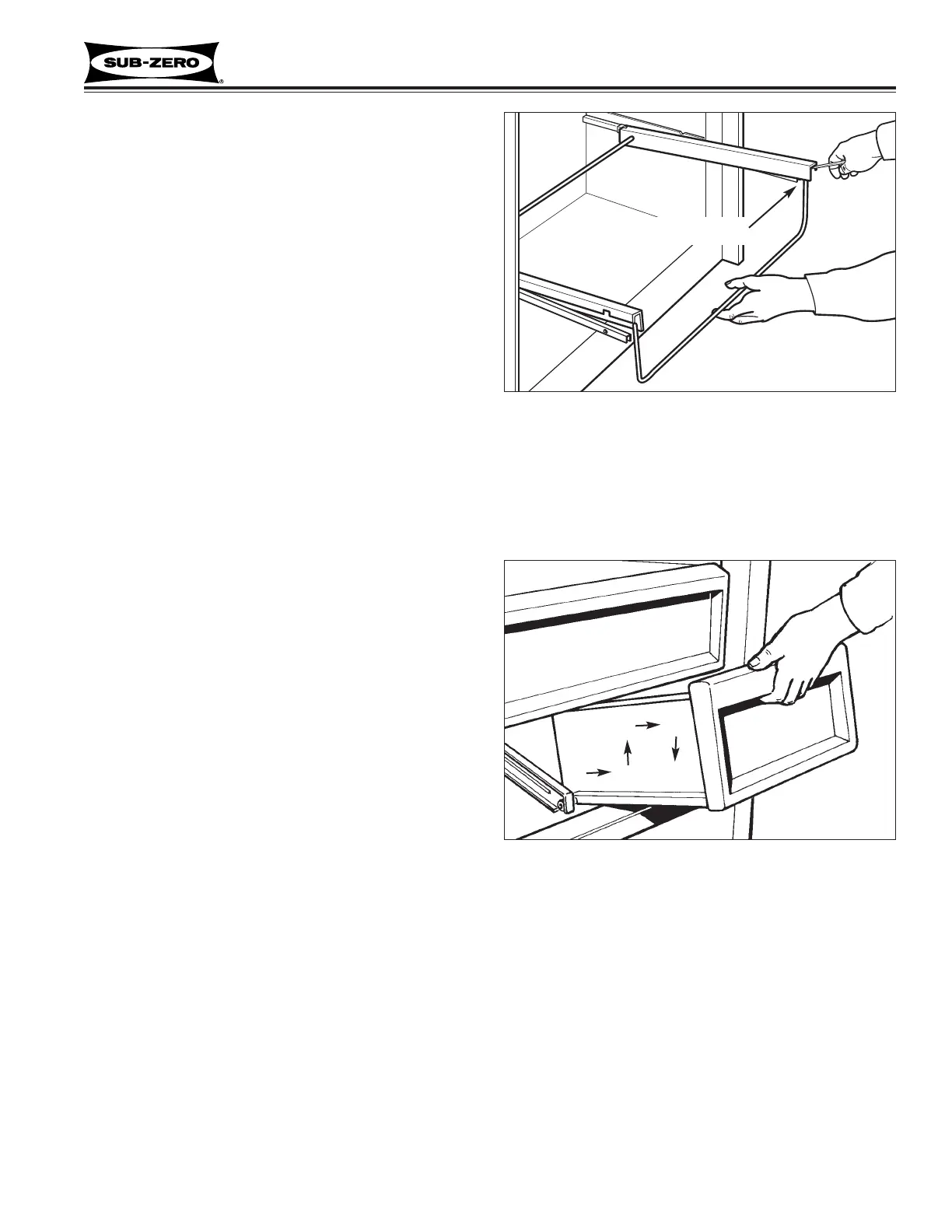

Figure 7-38. Carriage Assembly
Figure 7-39. Small Storage Drawer
1
2
3
4
Pry up to break silicone seal
To Next Page
