Component Access / Removal
#3758407 - Revision B - August, 2006
Refrigerator Compartment Thermistor (All Models)
The refrigerator compartment thermistor is located
behind the evaporator cover, and attached to the wall
with a screw just above the evaporator.
To remove a compartment thermistor, the light diffuser
and evaporator cover must be removed first, then (See
Figure 7-51):
1. Disconnect thermistor electrical leads.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
2. Extract mounting screws an pull thermistor from
unit.
Refrigerator Evaporator Thermistor (All Models)
The refrigerator evaporator thermistor is inserted into
the third opening in the evaporator fins from the top,
approximately to the center of the evaporator.
To remove the refrigerator evaporator thermistor, the
light diffuser and evaporator cover must be removed
first, then (See Figure 7-52):
1. Disconnect thermistor electrical leads.
NOTE: On newer models the thermistor is hard-
wired to the control board, so it will be necessary to
cut the thermistor wires to remove it.
2. Pull thermistor from evaporator fins.

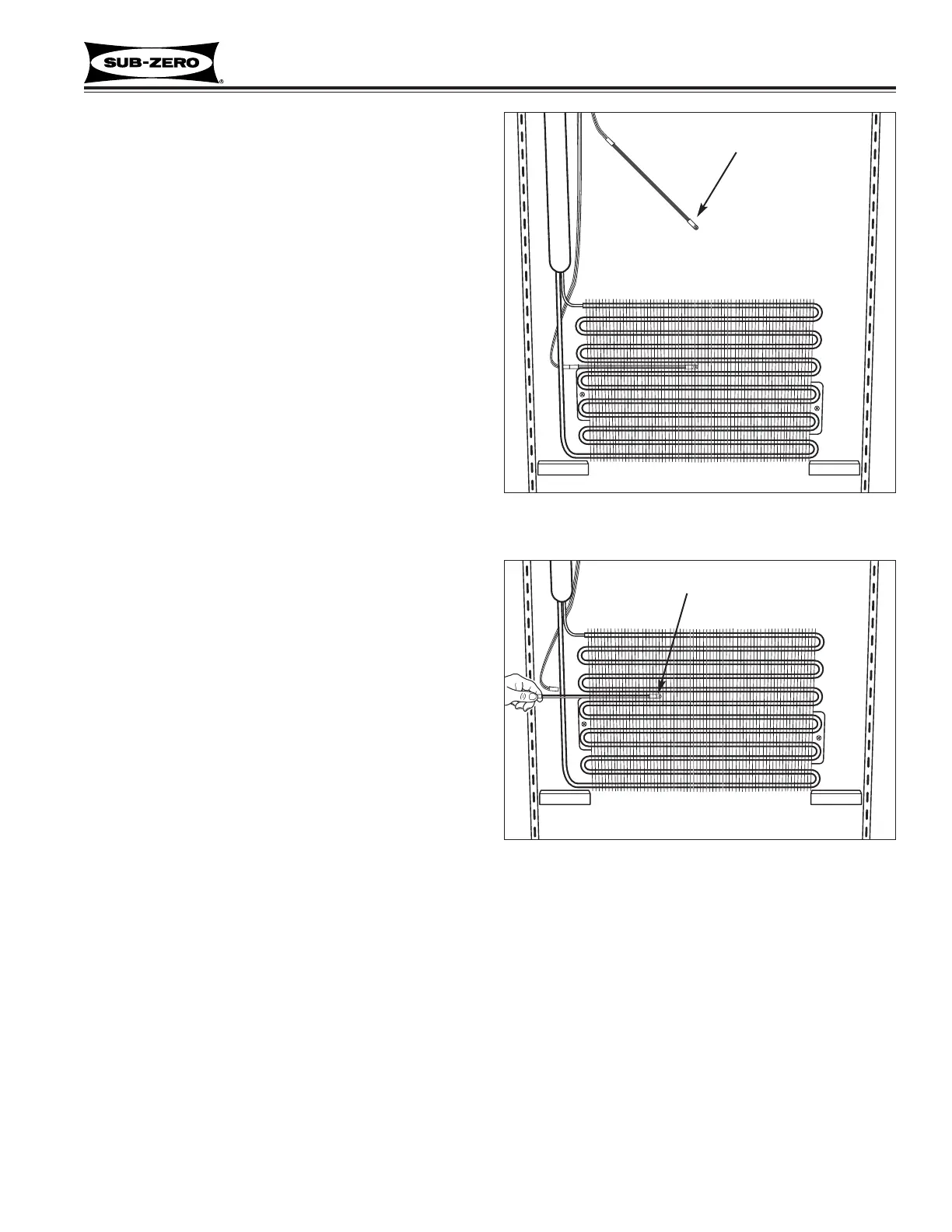

Figure 7-52. Evaporator Thermistor
Evaporator Thermistor
Figure 7-51. Refrigerator Compartment Thermistor
Compartment
Thermistor
