Installation Information
600 Series
(Prior to #1810000)
2-4
#3756270 - Revision B - January, 2006

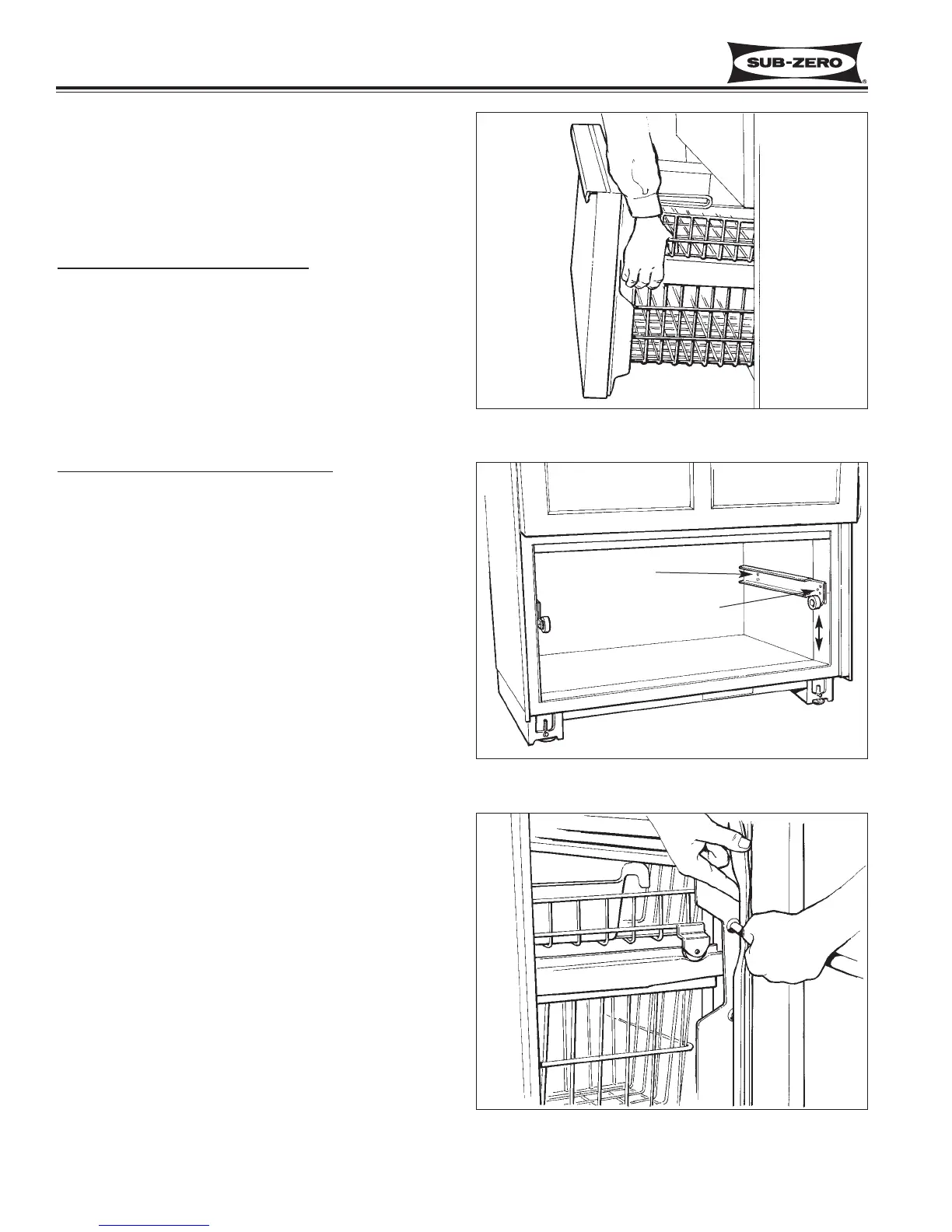

Freezer Drawer Adjustments
(Models 611 & 650)
NOTE: Before attempting freezer drawer adjustment,
remove freezer drawer assembly. Pull drawer assem-
bly out, then lift at front while holding upper freezer bas-
ket in place. (See Figure 2-6)
V
ertical Freezer Drawer Adjustment:
a. Loosen two screws towards rear of each cabinet
drawer slide, and extract screw at slide front. (See
Figure 2-7)
b. Relocate front screw to desired position in drawer
slide insulator grommet (See Figure 2-7).
c. After adjustment, tighten all screws, reinstall drawer
assembly, then check door seal for proper gasket
seating.
Freezer Drawer Front Pitch
Adjustment:
a. Remove two 3/4” white plastic plugs from each side
of plastic drawer liner. (See Figure 2-8)
b. With 3/8” socket, loosen bolts, then adjust drawer
front pitch accordingly. (See Figure 2-8).
c. After adjustment, tighten bolts and check door seal
for proper gasket seating.
NOTE: If freezer drawer assembly has too much play
from side-to-side, freezer drawer slide shims (part #
0232300 - front, part # 0232310 - rear) are available.
Figure 2-6. Drawer Assembly Removal
Figure 2-7. Vertical Freezer Drawer Adjustment
Rear Screws
Front Screw
Adjust slide front up
or down as required
Figure 2-8. Drawer Front Pitch Adjustment
