Air Flow / Fan Blade Spacing
600 Series
(Prior to #1810000)
5-2
#3756270 - Revision B - January
, 2006

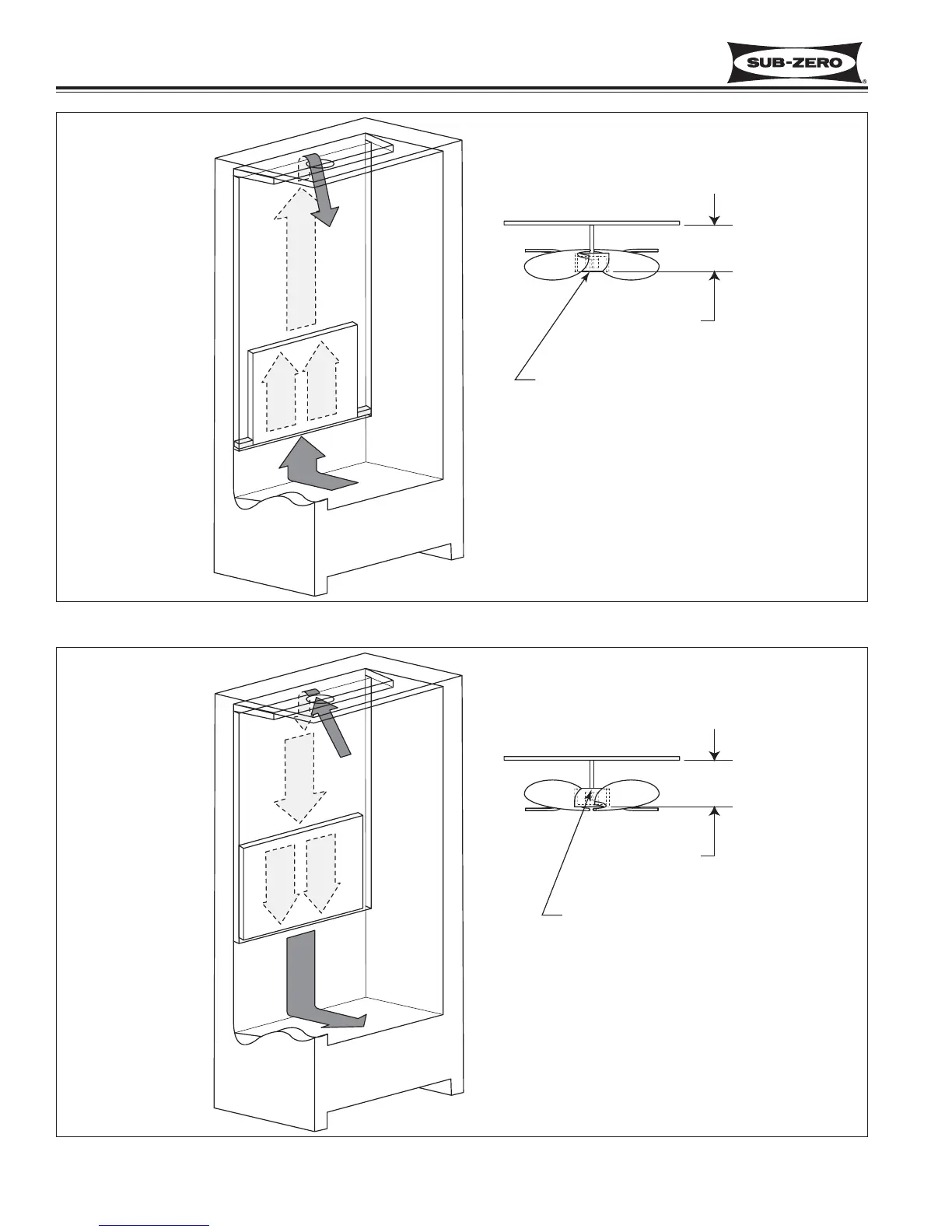

Figure 5-1.
Air Flow and Fan Blade Sp
acing, Models 601R
Clamp Down
F
AN BRACKET TO F
AN
BLADE HUB SP
ACING
1-1/4" ± 1/16"
(31.75 mm ± 1.59 mm)
Figure 5-3.
Air Flow and Fan Blade Sp
acing, Model 601F
1-1/4" ± 1/16"
(31.75 mm ± 1.59 mm)
Clamp Up
F
AN BRACKET TO F
AN
BLADE HUB SP
ACING
41
43
Table of Contents
Section 1 - General Information
3
Introduction
4
Technical Assistance
4
Important Safety Information
4
Table of Contents
5
Warranty Information
7
Model Description
8
Section 2 - Installation Information
9
Installation Considerations
10
Unit Leveling (All Models)
10
Door Adjustment (All Models)
10
Special Side-By-Side Door Adjustment
11
Freezer Drawer Adjustment (Models 611, 650)
12
Door Panel Installation
13
90° Door Stop (Models 632, 642, 690)
14
90° Door Stop (Models 601R, 601F)
14
Section 3 - Electronic Control System Information
15
Electronic Control Terminology
15
Basic Electronic Control System
17
Control Board Summary / Layout
18
Basic Input Operations
19
Power On/Off
19
Temperature Adjustment (Adjusting Setpoint)
19
Icemaker System On/Off
19
Unique Input Operations
20
Show Room Mode
20
Sabbath Mode
20
Functions of Electronic Control System
21
Supply Power to the Lighting System
21
Monitor, Display, Regulate Temperatures
23
Monitor and Control Off-Cycle Defrost
24
Monitor and Control "Adaptive Defrost
24
Initiating Manual Defrost
24
Monitor Compressor Run, Displays if Service or Condenser Cleaning Is Needed
26
Possible Error Displays
27
Diagnostic Procedures
28
Thermistor Error
30
Diagnostic Mode Sequence
30
Using Temperatures to Troubleshoot Sealed System
31
Section 4 - Sealed System Information
33
HFC-134A Refrigerant Service Information
34
General Rules for Working with 134A Refrigerant
34
Sealed System Repair Procedures
35
Sealed System Operation
36
Model 601R
38
Section 5 - Air Flow & Fan Blade Spacing
39
Models 611, 650
39
Section 5 - Air Flow & Fan Blade Spacing
41
Section 6 - Icemaker Information
45
Icemaker Information
45
Icemaker Components
46
Icemaker Operation
47
Manually Stopping Ice Production
52
Manually Starting Icemaker
53
Adjusting Water Fill Level
53
2-1
56
Section 7 - Component Access and Removal
56
Primary Parts
57
Upper Light Diffuser
57
Door Shelf / Dairy Compartment Assemblies
57
Utility Basket
58
Crisper Glass Shelf
58
Large High Humidity Drawer
58
Compartment Shelves
58
Humidity Drawer Carriage Assembly
59
Small Storage Drawer
59
Freezer Basket (Models 601F, 632, 642, 690)
59
Freezer Glass Shelf (Model 601F)
60
Ice Bucket (Model 601F)
60
Juice Can Rack (Model 690)
60
Ice Bucket Assy. (Model 690)
60
Standard Louvered Grille (Models 601R, 601F)
61
Stainless Steel Grille (Models 601R/S, 601F/S)
61
Drain Pan (Models 601R, 601F)
62
Panel Grille Assembly (All Except 601R/601F)
62
Kickplate
63
Drain Pan (All Except 601R/601F)
63
Refrigerator Mechanical & Electrical Components
64
Control Board (All Except 690)
64
Control Panel (All Except 690)
64
Refrigerator Evaporator Cover (All Except 690)
65
Refrigerator Evaporator Cover (Model 690)
65
Refrigerator Evaporator Fan Shroud
65
Refrigerator Evaporator Fan Assembly
65
Refrigerator Compartment Thermistor
66
Refrigerator Evaporator Thermistor
66
Water Reservoir Tank Cover (Model 690)
66
Control Board (Model 690)
67
Vertical Control Panel (Model 690)
67
Water Reservoir Tank (Model 690)
68
Ice Chute Component (Model 690)
68
Control Board (Model 601F)
69
Control Panel (Model 601F)
69
Freezer Mechanical & Electrical Components
69
Freezer Evaporator Cover (Model 601F)
70
Freezer Evaporator Thermistor (Model 601F)
71
Defrost Terminator (Model 601F)
71
Defrost Heater (Model 601F)
71
Fill Tube Heater (Model 601F)
72
Drain Trough Enclosure (Model 601F)
72
Freezer Compartment Thermistor (Model 601F)
72
Drain Tube Heater (Model 601F)
73
Drain Trough Heater (Model 601F)
73
Icemaker Fill Tube Heater (Models 611, 650)
74
Compartment Thermistor (Models 611, 650)
75
Freezer Air Duct (Models 611, 650)
75
Light, Fan & Icemaker Switches (Models 611, 650)
75
Freezer Evaporator Cover (Models 611, 650)
76
Freezer Evaporator Thermistor (Models 611, 650)
77
Defrost Heater (Models 611, 650)
77
Freezer Compartment Thermistor (Models 632, 642)
78
Lower Light Diffuser (Models 632, 642)
78
Icemaker (Models 632, 642)
79
Fill Tube Heater (Models 632, 642)
79
Evaporator Fan Assembly (Models 632, 642)
79
Defrost Terminator (Models 632, 642)
80
Freezer Evaporator Cover (Models 632, 642)
80
Defrost Heater (Models 632, 642)
80
Freezer Drain Tube Heater (Models 632, 642)
80
Evaporator Thermistor (Models 632, 642)
81
Upper Front Panel (Model 690)
81
Ice Auger Motor Assy. (Model 690)
81
Evaporator Front Cover (Model 690)
81
Evaporator Fan Assembly (Model 690)
82
Compartment Thermistor (Model 690)
82
Evaporator Thermistor (Model 690)
82
Lower Light Diffuser (Model 690)
82
Icemaker Carriage Assembly (Model 690)
83
Icemaker (Model 690)
83
Fill Tube Heater (Model 690)
84
Drain Tube Heater (Model 690)
84
Evaporator Defrost Heater (Model 690)
85
Defrost Terminator (Model 690)
85
4-1
67
Lower Compressor Area Mechanical
86
Electrical Components
86
Light and Fan Switches (Models 601R, 601F)
86
Water Valve (Model 601F)
86
Condenser Fan (Models 601R, 601F)
87
Upper Compressor Area Mechanical
87
Light and Fan Switch (All Except 601R/601F)
87
Dual Water Valve (Model 690)
88
Drain Pan Area
89
Water Valve (Models 611, 632, 642, 650)
89
Sealed System Components
90
Filter-Drier (Models 601R, 601F)
90
Compressor (Models 601R, 601F)
91
Drain Pan Condensate Heater Loop (Model 601R)
91
Condenser (Models 601R, 601F)
91
Evaporator (Models 601R, 601F)
92
Heat Exchanger (Models 601R, 601F)
92
Filter-Drier (All Except 601R/601F)
93
Compressor (All Except 601R/601F)
93
Condenser (All Except 601R/601F)
93
Refrigerator Evaporator (All Except 601R)
94
Refrigerator Heat Exchanger (All Except 601R)
94
Freezer Evaporator (Models 611, 650)
95
Freezer Heat Exchanger (Models 611, 650)
95
Freezer Evaporator (Models 632, 642)
96
Freezer Heat Exchanger (Models 632, 642)
96
Freezer Evaporator (Model 690)
97
Freezer Heat Exchanger (Model 690)
97
Section 8 - Troubleshooting Guides
99
General Troubleshooting Guide
100
Troubleshooting Guides
101
Freezer And/Or Refrigerator Compartment too Cold
108
Membrane Switch on Control Board Malfunctioning
108
Lights Stay on When Door Closed
109
Doors Uneven or Unit Not Level
110
No Ice, Ice Not Displayed
110
Too Much Ice
111
Icemaker Produces Small Cubes
111
Icemaker Produces Hollow Cubes
111
Water from Icemaker in Ice Bucket
111
Sealed System Troubleshooting Information
112
Sealed System Repair Procedures
113
Membrane Switch/Ribbon Cable Tests
114
Section 9 - Technical Data
115
Model 601R
116
Technical Data
116
Model 601F
117
Model 611
118
Model 632
119
Model 642
120
Model 650
121
Model 690
122
Section 10 - Wiring Diagrams
123
Wiring Diagram Model 601R
124
Wiring Schematic Model 601R
125
Wiring Diagram Model 601F
126
Wiring Schematic Model 601F
127
Wiring Diagram Model 690
128
Wiring Diagram Models 611 & 650
128
Wiring Schematic Model 611 & 650
129
Wiring Schematic Model 690
129
Wiring Diagram Model 632 & 642
130
Wiring Diagram
131
