Sub-Zero 642/F

Sealed System Information
600 Series
(Prior to #1810000)
4-6
#3756270 - Revision B - January, 2006

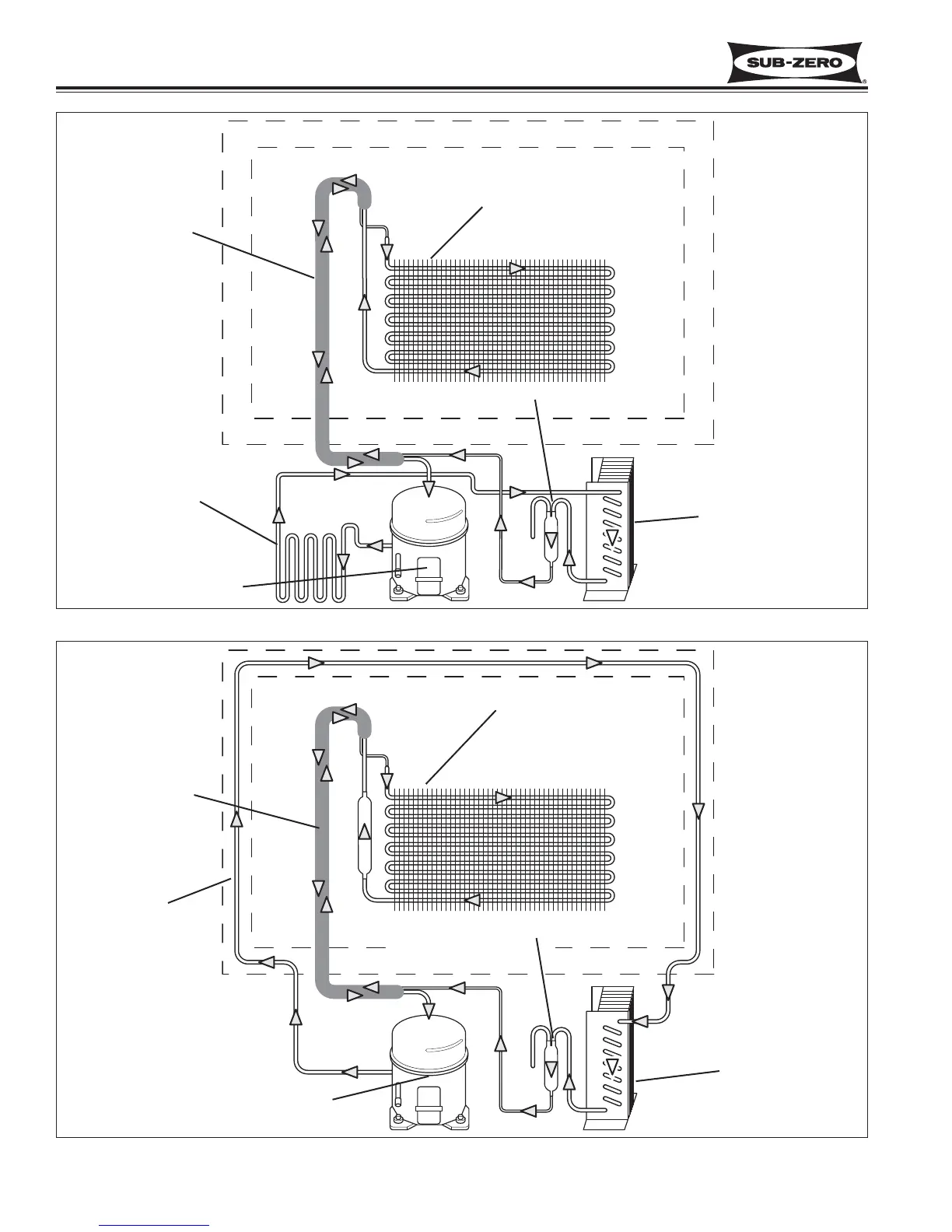

Figure 4-7. Models 601R Refrigerant Flow
Figure 4-8. Model 601F Refrigerant Flow
Freezer Compressor
Refrigerator Compressor
Refrigerator Evaporator
Freezer Evaporator
Heater Loop
Drain Pan Heater
Heat Exchanger
Condenser
Condenser
High-Side Filter Drier
High-Side Filter Drier
Heat Exchanger
