700-2 TALL UNIT CONTROL PANEL LAYOUT
Please note that in the first part of this section, an illustration of the 700TC/I-2 control panel is used most often.
(See Figure 3-4)

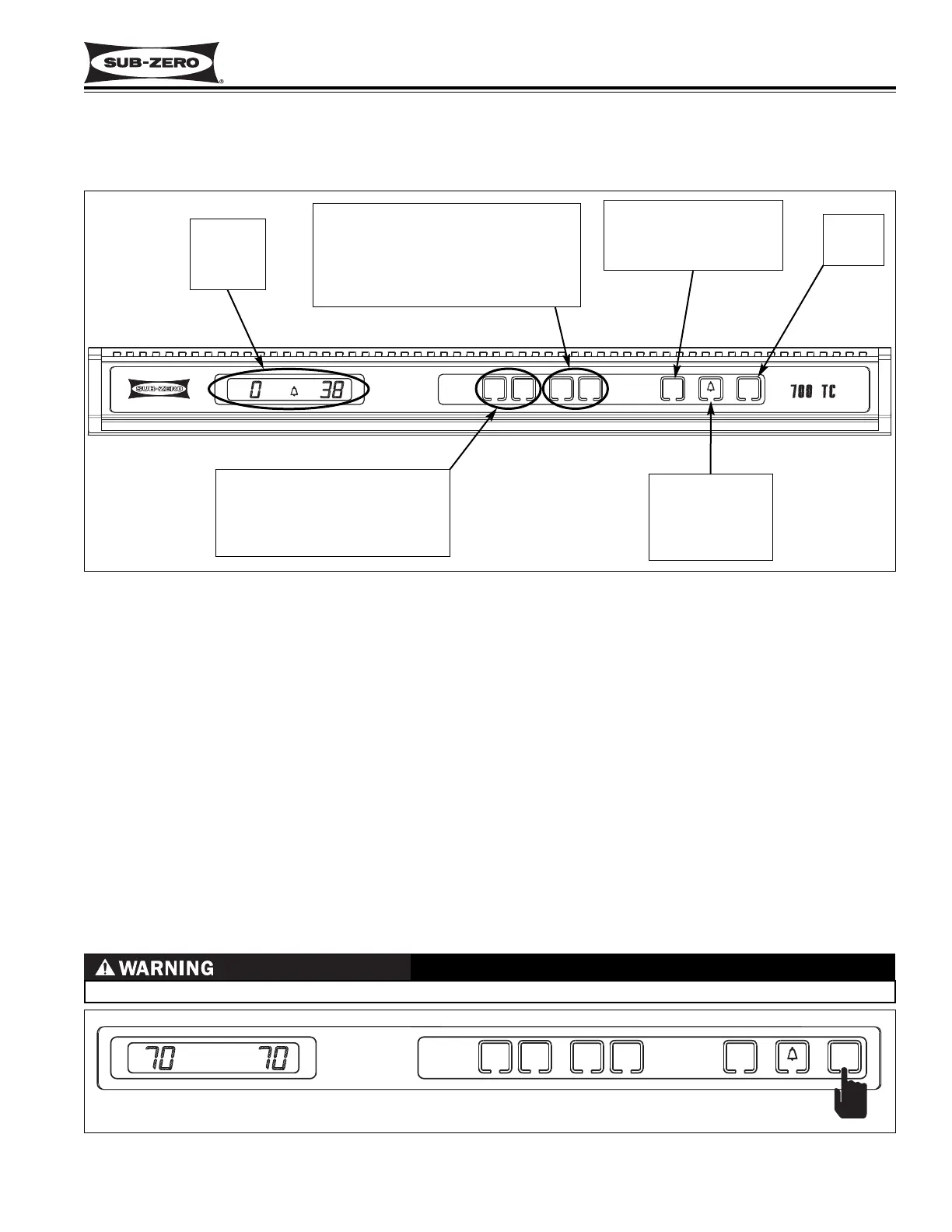

Figure 3-4. 700-2 Tall Unit Control Panel Layout (700TC/I-2 Control Panel Shown)
WHEN IN OFF MODE, 115 VOLTS AC IS STILL PRESENT AT CONTROL BOARD!
Figure 3-5. 700-2 Tall Unit ON/OFF, Press UNIT ON/OFF Key
BASIC 700-2 TALL UNIT ELECTRONIC CONTROL INPUT OPERATIONS
Following are illustrations which show the basic input operations performed at the 700-2 tall unit control panel.
Switching the unit ON and OFF, adjusting the set-point (temperature adjustments), switching the ice maker system
ON and OFF, and enabling and disabling the door ajar alarm feature will be explained. Please note that the 700TC/I-
2 control panel is used for most illustrations of the control panel, and in most cases Fahrenheit readings are shown.
Unit ON/OFF
All Integrated 700-2 Series units are shipped in the OFF Mode and when power is supplied to the unit, a trace of the
word “OFF” is visible on the LCD. By pressing and releasing the UNIT ON/OFF key, (See Figure 3-5.) power is
allowed past the control board to the rest of the unit. This will be indicated by the unit lights and LCD at the control
panel illuminating.
NOTE: Whenever the unit is switched off using the the UNIT ON/OFF key, a trace of the word “OFF” will be visible
on the LCD as long as there is power to the unit.
UNIT
ON/OFF
KEY
DOOR / DRAWER
AJAR
ALARM
ON/OFF
KEY
ICEMAKER SYSTEM
ON/OFF
KEY
(Not present on 700TR-2)
REFRIGERATOR
SET-POINT
ADJUSTMENT
KEYS
(Upper door section on 700 TR-2)
(Not present on 700TF/I-2 or 700TF/I-2V)
FREEZER
SET-POINT
ADJUSTMENT
KEYS
(Lower Drawer section on 700TR-2)
LCD
Liquid
Crystal
Display
