Sub-Zero 700-2 Series

Page 31
Electronic Control
Integrated (
Integrated (
700-
700-
2) Series
2) Series
3-21
#3756780 - Revision D - July, 2005
ICE
ICE
UNIT
UNIT
ICE
ICE
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
FREEZER
FREEZER
SERVICE
SERVICE

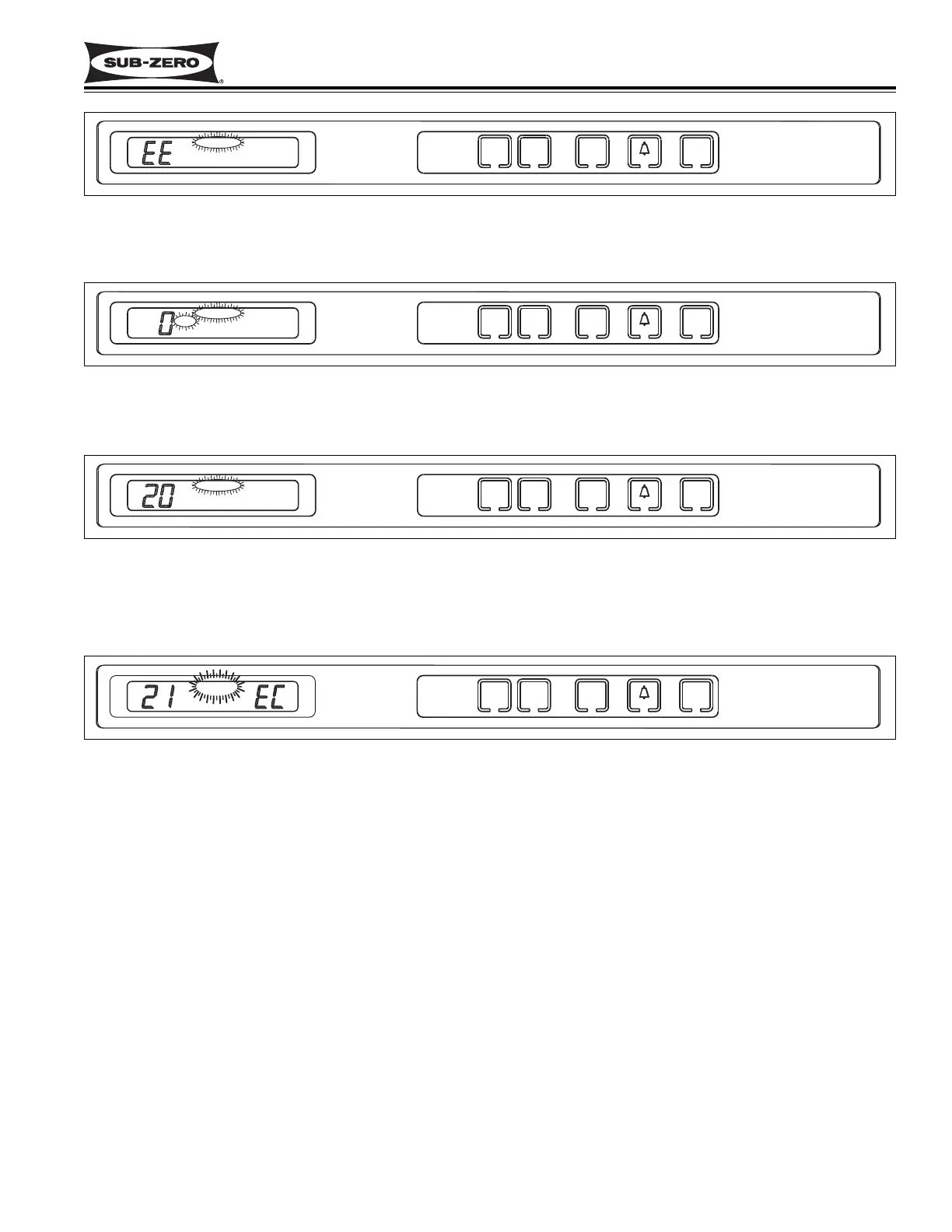

Figure 3-39. Model 700TF/I-2 & 700TF/I-2V
“ICE” & “SERVICE” Flashing = Water Valve Solenoid energized 15 Seconds, Icemaker System Disabled
NOTE: To clear this error indicator the problem must be corrected, then the unit switched OFF and back ON.
UNIT
UNIT
ICE
ICE
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
FREEZER
FREEZER
SERVICE
SERVICE
Figure 3-38. Model 700TF/I-2 & 700TF/I-2V
“EE” Displayed and “SERVICE” Flashing = Compartment Thermistor (or its Wiring) Fault
NOTE: To clear this error indicator the problem must be corrected
UNIT
UNIT
ICE
ICE
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
FREEZER
FREEZER
SERVICE
SERVICE
Figure 3-40. Model 700TF/I-2 & 700TF/I-2V
(700TF/I-2) “SERVICE” Alone Flashing = Excessive Compressor Run
(700TF/I-2V) “SERVICE” Alone Flashing = Excessive High-Speed Commands to Variable Speed Compressor
NOTE: To clear this error indicator the problem must be corrected, then the unit switched OFF and back ON.
UNIT
UNIT
ICE
ICE
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
FREEZER
FREEZER
SERVICE
Figure 3-41. Model 700TF/I-2 & 700TF/I-2V (AFTER SERIAL #1757258)
(700TF/I-2) “EC” at Right & “SERVICE” Flashing = Excessive Compressor Run with Error Codes
(700TF/I-2V) “EC” at Right & “SERVICE” Flashing = Excessive High-Speed Commands to Variable Speed
Compressor with Error Codes
NOTE: To clear this error indicator and error code, the problem must be corrected, then the alarm bell ON/OFF
key must be pressed and held for 15 seconds.
