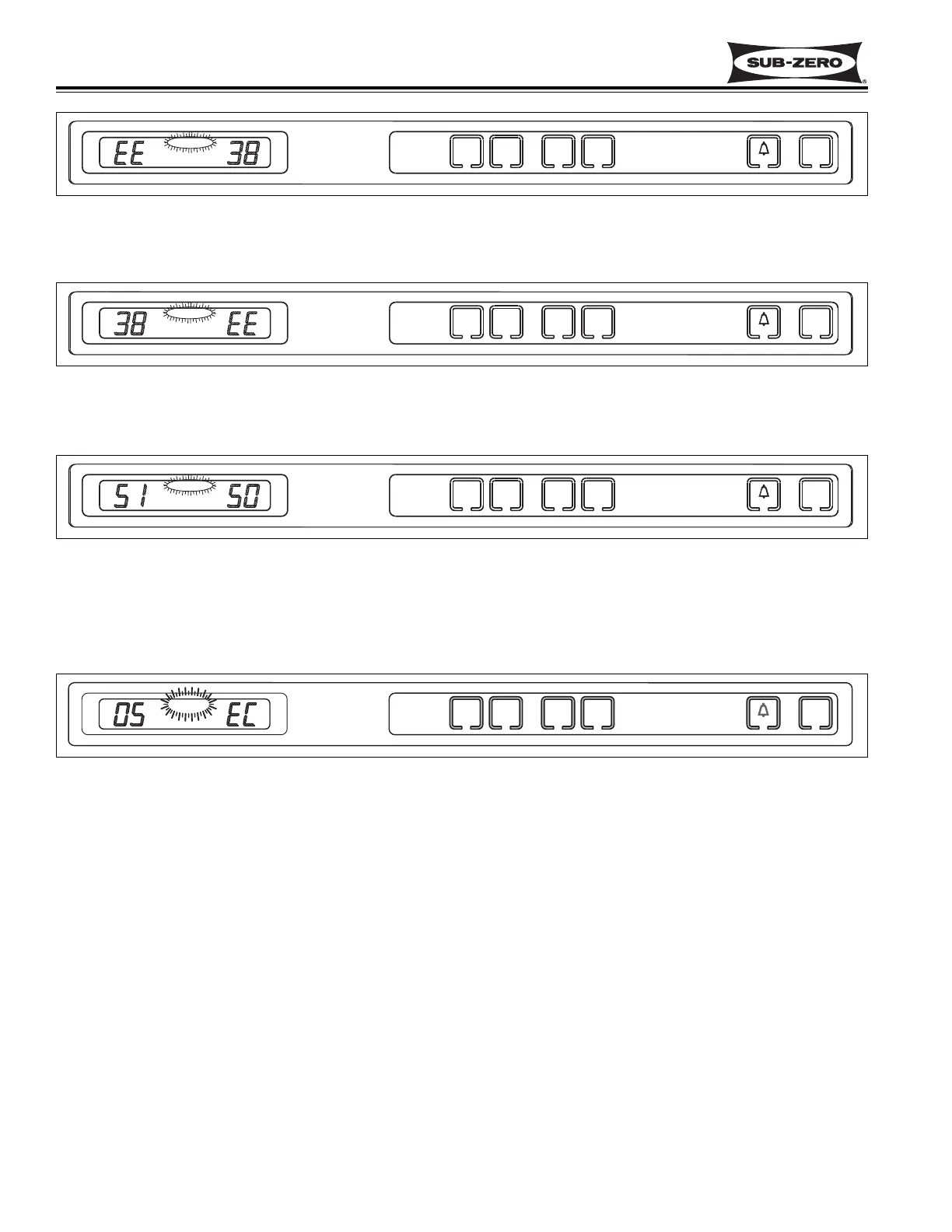

Figure 3-35. Model 700TR-2
“EE” Displayed at Right and “SERVICE” Flashing = Upper Compartment Thermistor (or its Wiring) Fault
NOTE: To clear this error indicator the problem must be corrected
UNIT
UNIT
WARMER
WARMER
COLDER
COLDER
DOOR
DOOR
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
DRAWERS
DRAWERS
SERVICE
SERVICE
Figure 3-36. Model 700TR-2
“SERVICE” Alone Flashing = Excessive Compressor Run (OR)
Upper or Lower Evap. Thermistor (or its Wiring) Fault
NOTE: To help identify the problem, Diagnostic Mode (Covered later in this section) should be initiated.
NOTE: To clear this error indicator the problem must be corrected, then the unit switched OFF and back ON.
UNIT
UNIT
WARMER
WARMER
COLDER
COLDER
DOOR
DOOR
ON/OFF
ON/OFF
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
DRAWERS
DRAWERS
SERVICE
SERVICE
Figure 3-34. Model 700TR-2
“EE” Displayed at Left and “SERVICE” Flashing = Lower Compartment Thermistor (or its Wiring) Fault
NOTE: To clear this error indicator the problem must be corrected
UNIT
ON/OFF
ON/OFF
WARMER
WARMER
COLDER
COLDER
DOOR
DOOR
WARMER
WARMER
COLDER
COLDER
DRAWERS
DRAWERS
SERVICE
Figure 3-37. Model 700TR-2 (AFTER SERIAL #1759163)
“EC” at Right and “SERVICE” Flashing = Excessive Compressor Run with Error Codes Registered
NOTE: To clear this error indicator and error code, the problem must be corrected, then the alarm bell ON/OFF
key must be pressed and held for 15 seconds.
