Sub-Zero 700-2 Series

Page 52
Electronic Control
Integrated (
Integrated (
700-
700-
2) Series
2) Series
3-42
#3756780 - Revision D - July, 2005

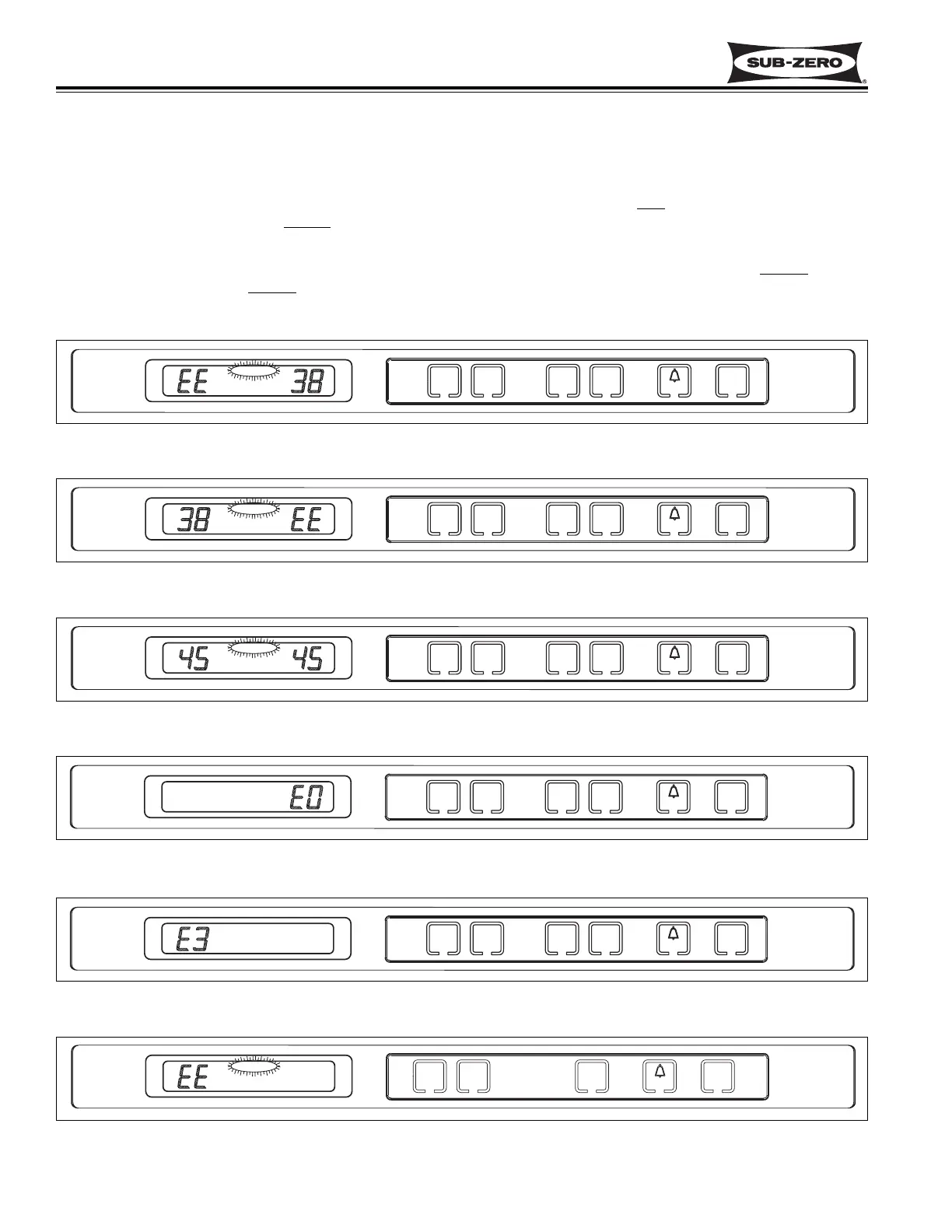

POSSIBLE 700-2 BASE UNIT ERROR INDICATORS
This page contains diagrams illustrating what customers may see on the LCD if a problem/error exists with the unit.
(For Model 700BR-2, see Figures 3-89 through 3-93. For Model 700BF/I-2, see Figures 3-92 through 3-94.)
NOTE: A blinking “SERVICE” annunciator in a base unit indicates thermistor faults only
. Unlike the tall units, the
blinking “SERVICE” annunciator cannot indicate excessive compressor run, because the length of compressor run-
time is not monitored on base units.
NOTE: Unlike the 700-2 tall units, the “SERVICE” and “ICE” annunciators on the LCD of a 700BFI-2 will not blink,
and the ice making system will not be disabled, if the water valve is energized for more than 15 seconds.
NOTE: To clear thermistor error indicators, the problem must be corrected.
Figure 3-90. For Model 700BR-2
“EE” Displayed at Right and “SERVICE” Flashing = Upper Compartment Thermistor (or its Wiring) Fault
Figure 3-89. For Model 700BR-2
“EE” Displayed at Left and “SERVICE” Flashing = Lower Compartment Thermistor (or its Wiring) Fault
Figure 3-91. For Model 700BR-2
“SERVICE” Blinking = Evaporator Thermistor Fault or Break in Thermistor Wiring
DRAWER
UPPER
COLDER
WARMER
ON/OFF
UNIT
DRAWER
LOWER
ON/OFF
COLDER
WARMER
SERVICE
SERVICE
DRAWER
UPPER
COLDER
WARMER
ON/OFF
UNIT
DRAWER
LOWER
ON/OFF
COLDER
WARMER
SERVICE
SERVICE
DRAWER
UPPER
COLDER
WARMER
ON/OFF
UNIT
DRAWER
LOWER
ON/OFF
COLDER
WARMER
SERVICE
SERVICE
SERVICE
SERVICE
FREEZER
ON/OFF
ICE
ON/OFF
UNIT
COLDER
WARMER
ON/OFF
Figure 3-94. For Model 700BF/I-2
“EE” Displayed at Left and “SERVICE” Flashing = Freezer Compartment Thermistor (or its Wiring) Fault
DRAWER
UPPER
ON/OFF
UNIT
DRAWER
LOWER
ON/OFF
COLDER
WARMER
COLDER
WARMER
Figure 3-93. For Model 700BR-2 & 700BF/I-2
“E3” Displayed = Communication Error Between Control Board and Control Panel
DRAWER
UPPER
ON/OFF
UNIT
DRAWER
LOWER
ON/OFF
COLDER
WARMER
COLDER
WARMER
Figure 3-92. For Model 700BR-2 & 700BF/I-2
“E0” Displayed = Communication Error Between Control Board and Control Panel
