Sealed System Information
Integrated (
Integrated (
700-
700-
2) Series
2) Series
4-8
#3756780 - Revision D - July, 2005

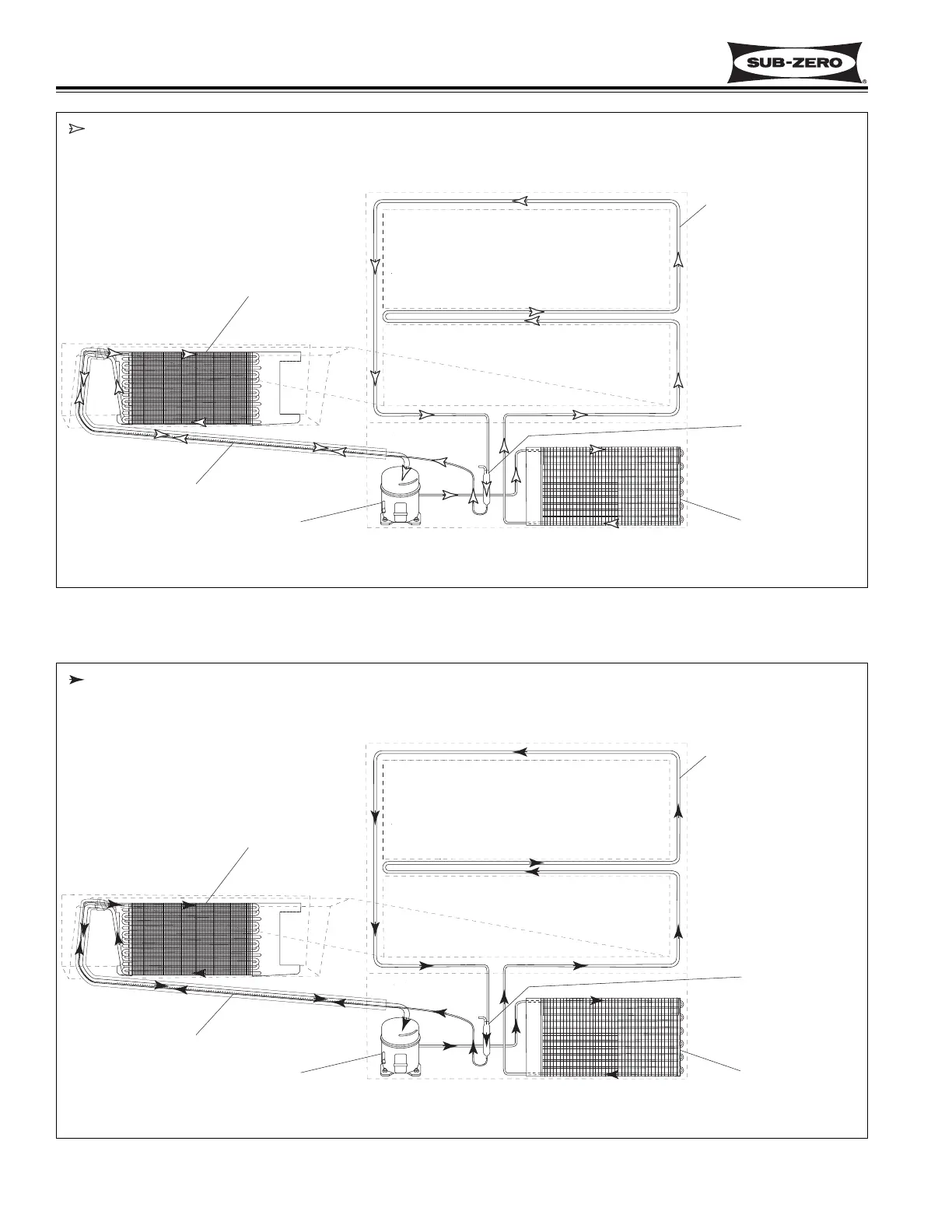

Figure 4-11. Model 700BF/I-2 Refrigerant Flow
COMPRESSOR
EVAPORATOR
CONDENSER
HEAT-EXCHANGER
FRAME HEATER (HOT GAS)
FILTER-DRIER
= FREEZER SEALED SYSTEM
(EVAPORATOR SUMP)
Figure 4-10. Model 700BR-2 Refrigerant Flow
COMPRESSOR
EVAPORATOR
CONDENSER
HEAT-EXCHANGER
FRAME HEATER (HOT GAS)
FILTER-DRIER
= REFRIGERATOR SEALED SYSTEM
(EVAPORATOR SUMP)
