Airflow & Fan Blade Spacing
Integrated (
Integrated (
700-
700-
2) Series
2) Series
5-3
#3756780 - Revision D - July, 2005
7/8"
± 1/16"
(2.22 cm ± .16 cm)
Blade
Bracket
Clamp
Away From
Motor
3/4"
± 1/16"
(1.91 cm ± .16 cm)
Blade
Bracket
Clamp
Away From
Motor
UPPER FAN MOTOR
LOWER FAN MOTOR

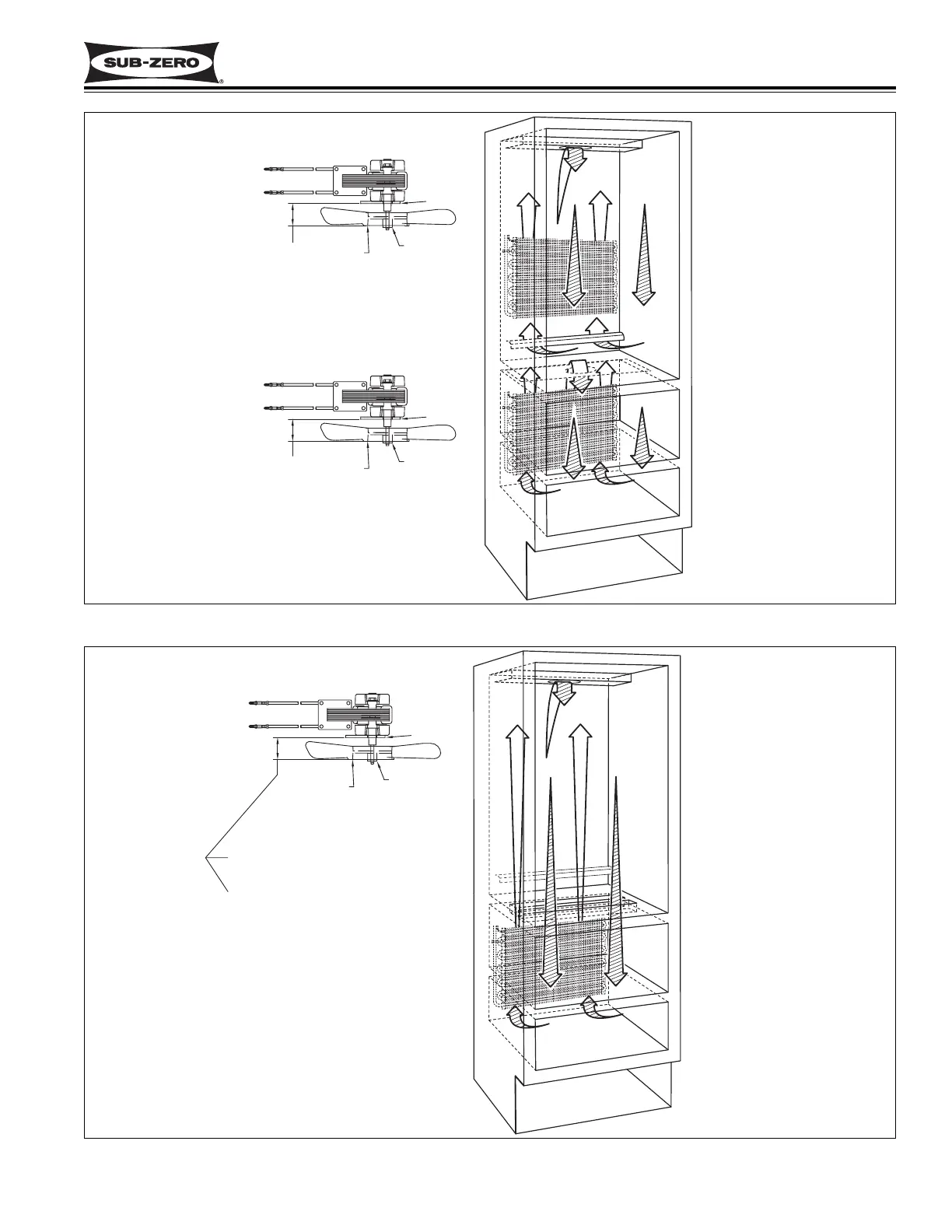

Figure 5-2. 700TR-2 Air Flow and Fan Blade Spacing
Blade
Bracket
Clamp
Away From
Motor
FAN MOTOR
Prior to Serial #1757258 = 1" ± 1/16"
(2.54 cm ± .16cm)
1" ± 1/16"
(2.54 cm ± .16cm)
Starting w/Serial #1757258 =
Figure 5-3. 700TF/I-2 and 700TF/I-2V Air Flow and Fan Blade Spacing
