Airflow & Fan Blade Spacing
Integrated (
Integrated (
700-
700-
2) Series
2) Series
5-4
#3756780 - Revision D - July, 2005
11/16" ± 1/16"
(1.75 cm ± .16 cm)
Blade
Bracket
Clamp
Towards
Motor

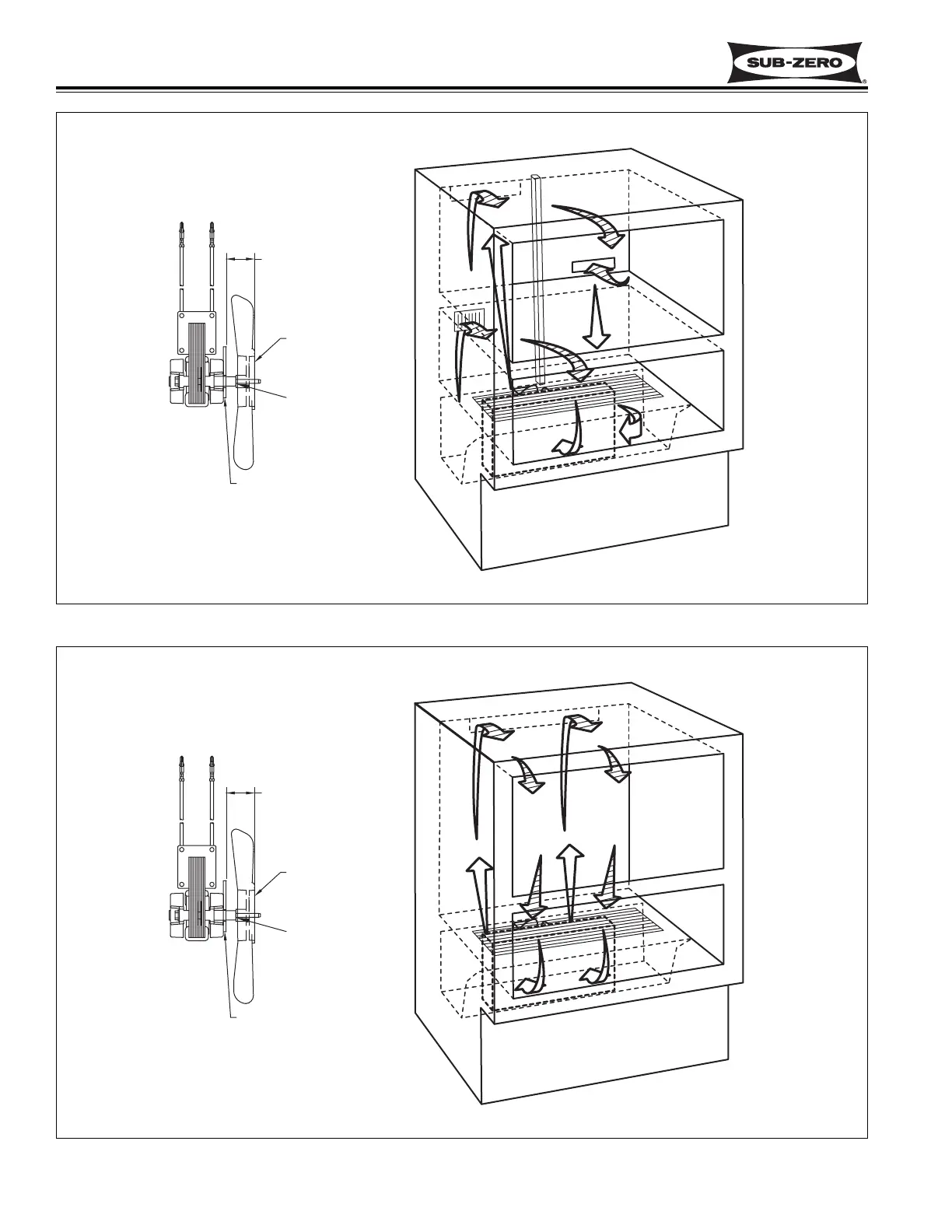

Figure 5-4. 700BR-2 Air Flow and Fan Blade Spacing
11/16" ± 1/16"
(1.75 cm ± .16 cm)
Blade
Bracket
Clamp
Towards
Motor
Figure 5-5. 700BF/I-2 Air Flow and Fan Blade Spacing
