BUILT-IN REFRIGERATION
Opening Dimensions
FLUSH INSET INSTALLATION
FLUSH INSET WIDTH
W
30" Model 32" (813)
36" Model 38" (965)
42" Model 44" (1118)
48" Model 50" (1270)
Dimensions assume a
3
/4" (19) panel thickness.
If an 83"
(2108) grille height is specied, the ush inset
height must be decreased by
7
/8" (22). If an 88" (2235) grille
height is specied, the ush inset height must be increased
by 4"
(102).
If two units are installed side by side, refer to page 17 for
dual ush inset installations.
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/16"
(56)
*3
" (76) typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
3
/4" (19) panel.

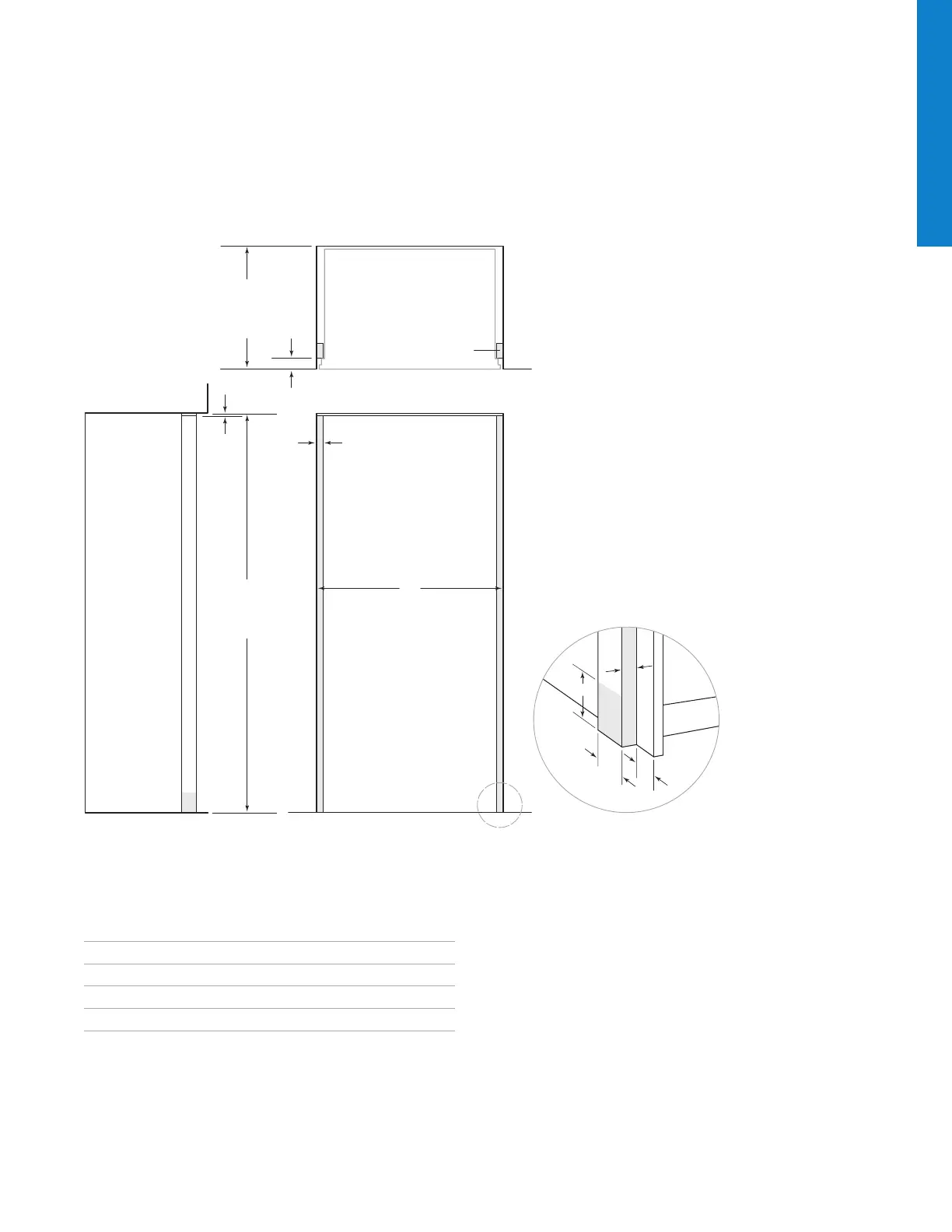

FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
1
1
/4"
(32)
W
FLUSH INSET WIDTH
4" (102)
1
1
/4"
(32)
2
3
/16"
(56)
3"
(76)*
TYPICAL
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
