BUILT-IN REFRIGERATION

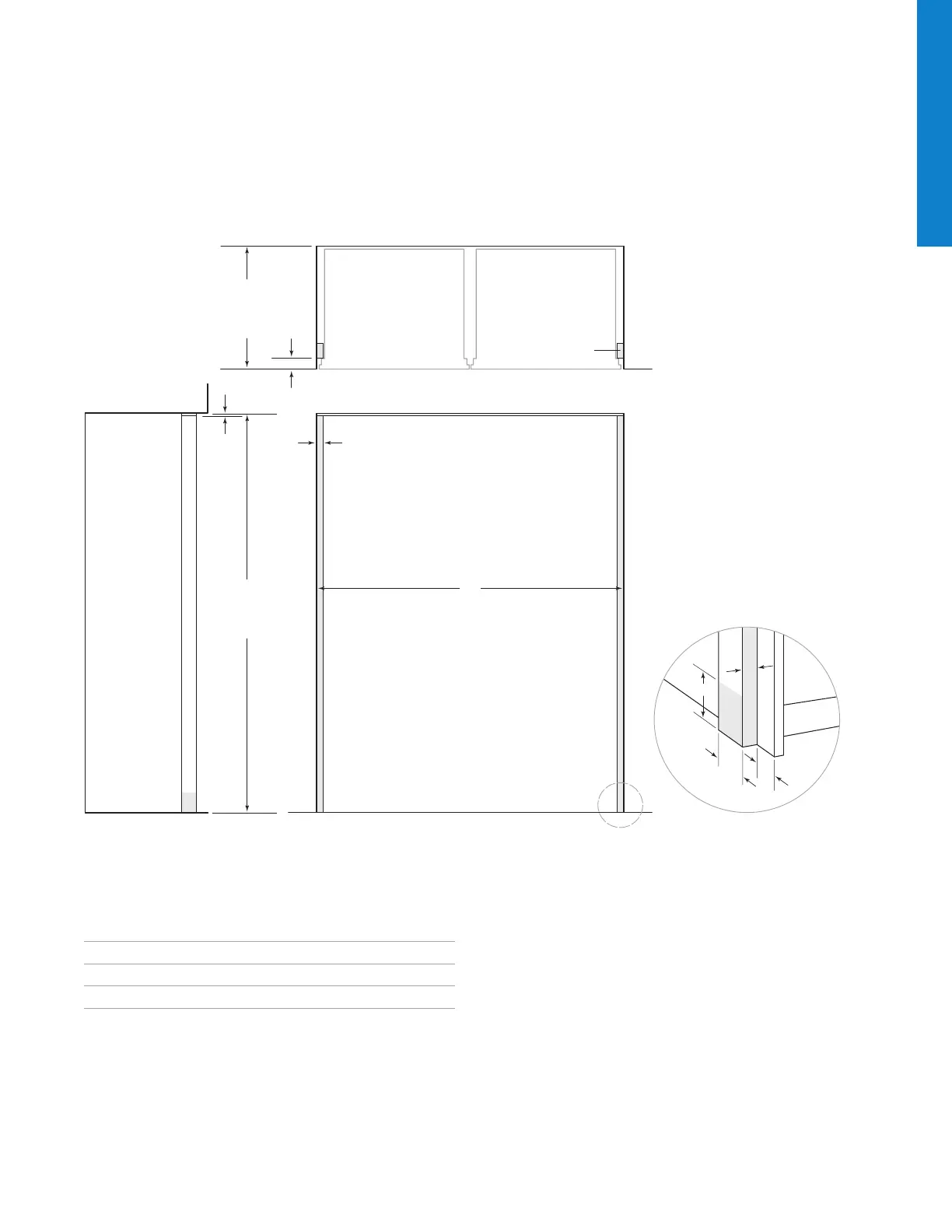

Opening Dimensions
DUAL FLUSH INSET INSTALLATION
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/16"
(56)
*3
" (76) typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
3
/4" (19) panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
1
1
/4"
(32)
W
FLUSH INSET WIDTH
4" (102)
1
1
/4"
(32)
2
3
/16"
(56)
3"
(76)*
TYPICAL
Dimensions assume a
3
/4" (19) panel thickness. A dual instal-
lation kit will be required for this installation.
DUAL FLUSH INSET WIDTH
W
Two 30" Models 62
1
/4" (1581)
30" and 36" Models 68
1
/4" (1734)
Two 36" Models 74
1
/4" (1886)
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
