BUILT-IN REFRIGERATION
Custom Panels
FLUSH INSET PANELS
The ush inset application is an overlay model with ush
inset panels. It is not a separate model.
The ush inset design allows custom panels to be installed
ush with adjacent cabinets. Similar to overlay, ush inset
panels are typically created by combining a
3
/4" (19) custom
panel, a .10"
(3) spacer panel and a
1
/4" (6) backer panel.
Refer to the illustrations for overlay panels.
For ush inset panels thicker than
3
/4" (19), a 90° door stop
may be required to prevent interference with adjacent
cabinets. Refer to the full-scale templates at the end of this
guide.
When installing two units side by side, refer to page 17 for
dual ush inset installations.
ICE AND WATER DISPENSER
For models BI-42SD and BI-48SD, the refrigerator door
panel must include a cut-out to accommodate the external
dispenser. The thickness of the panel in this area can range
from
1
/4" (6) to a maximum of 1
1
/8" (29). Refer to the illustra-
tions below.

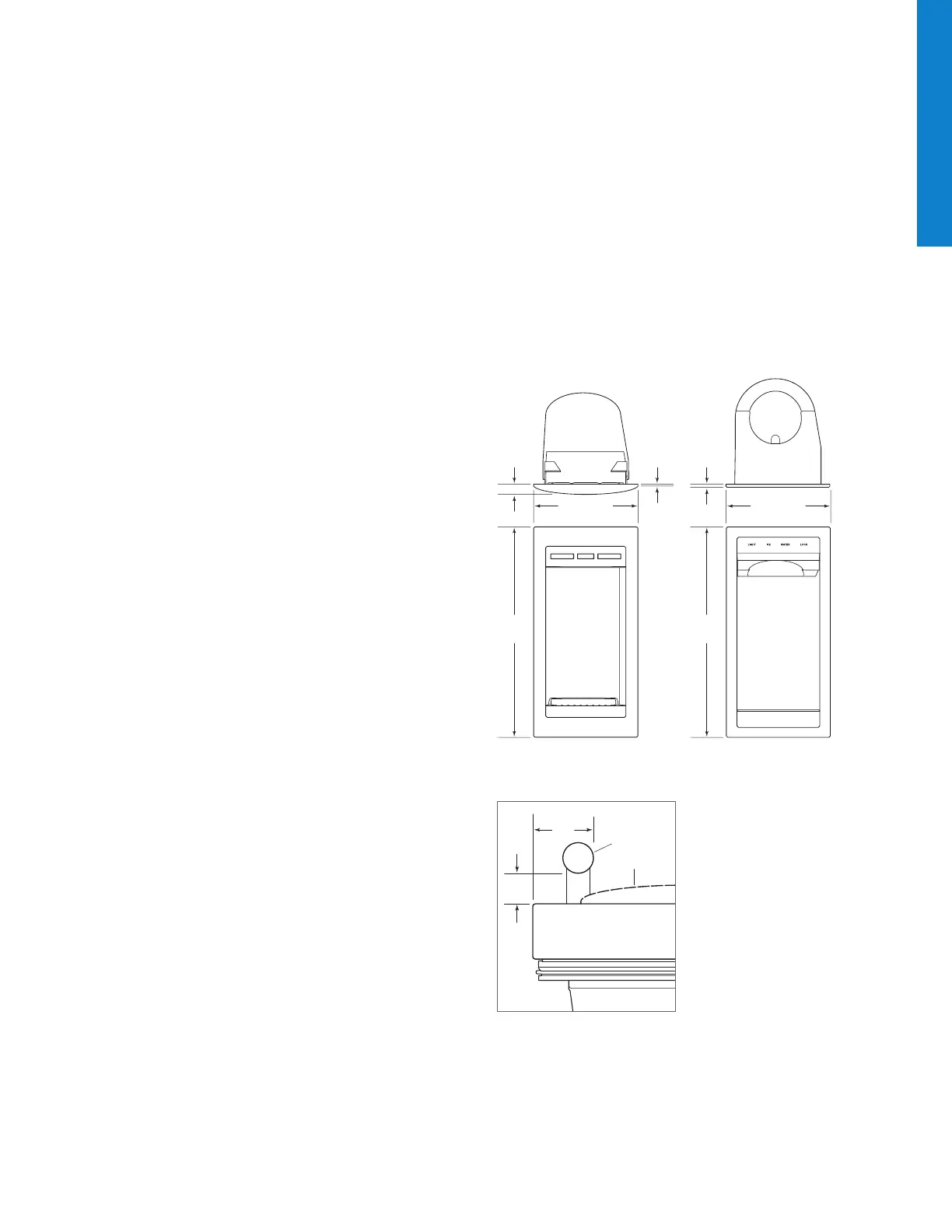

6
5
/16" (160)
3
/32"
(2)
5
/8"
(16)
12
7
/8"
(327)
Dispenser dimensions.
2"
(51)
1"
(25)
HANDLE
GLASSWELL
Handle placement.
6
5
/16" (160)
3
/16"
(5)
12
7
/8"
(327)
Dispenser dimensions.
