BUILT-IN REFRIGERATION
1
1
/2" (38)
1
/2" (13)
FILLER STRIP
PROFILE OF
3
/
4
"
(19) FLUSH INSET PANEL
AND TUBULAR HANDLE
DOOR
CLOSED
DOOR
OPEN 110°

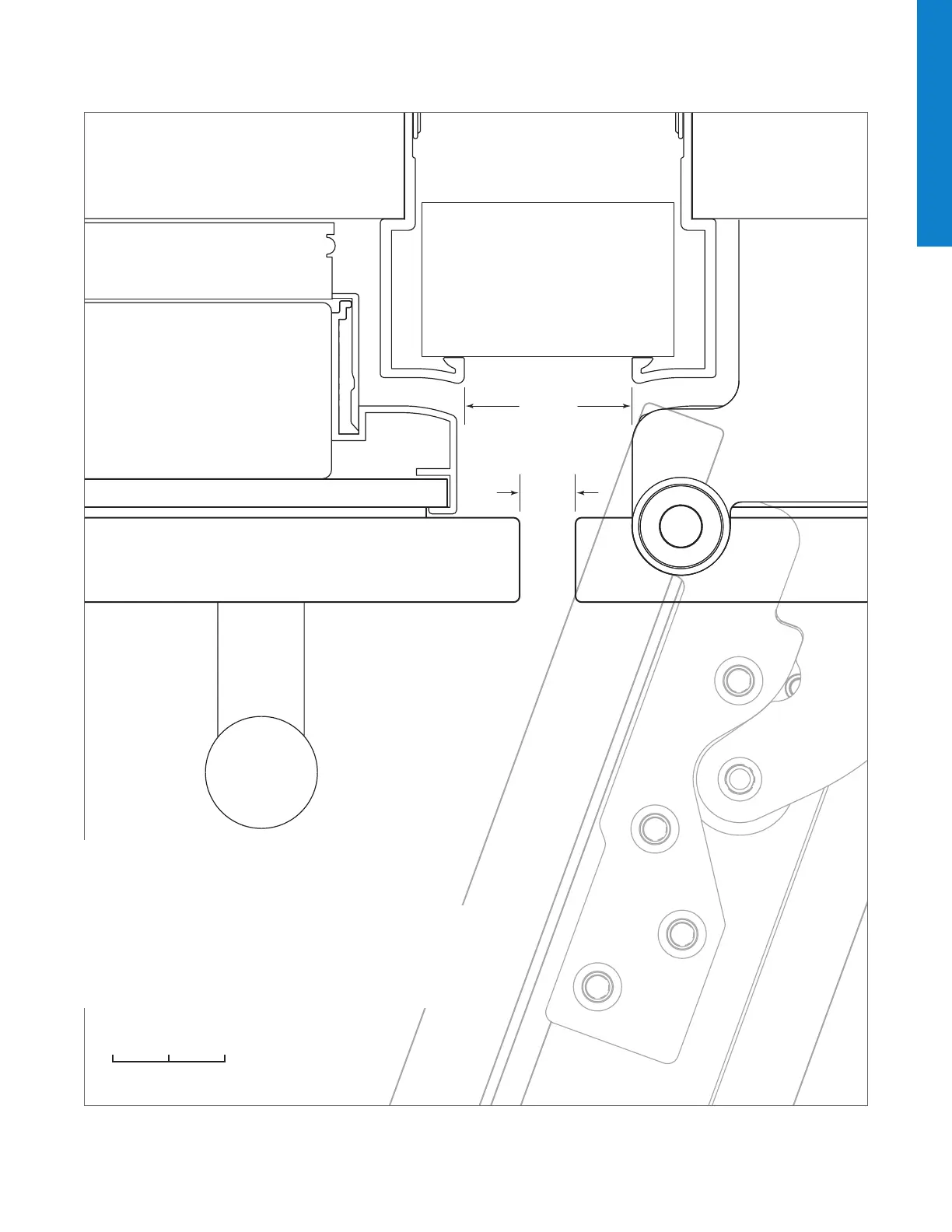

Dual ush inset installation (top view).
Dual Flush Inset Installation
FULL-SCALE TEMPLATE
Typical ush inset dual installation with ller strip at max-
imum 110° door opening. Panel thickness may require a 90°
door stop.
1" (25)0"
SCALE
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
