Sub-Zero BI-48S - Page 55

subzero.com/specs | 55
INTEGRATED REFRIGERATION
DOOR CLOSED
3
/4" (19) PANEL
POTENTIAL
INTERFERENCE
ADJACENT
CABINETRY
DOOR OPEN
MAXIMUM 105°
POTENTIAL INTERFERENCE
1
/8" (3) REVEAL
3
/4" (19) PANEL
1" (25)0"
SCALE

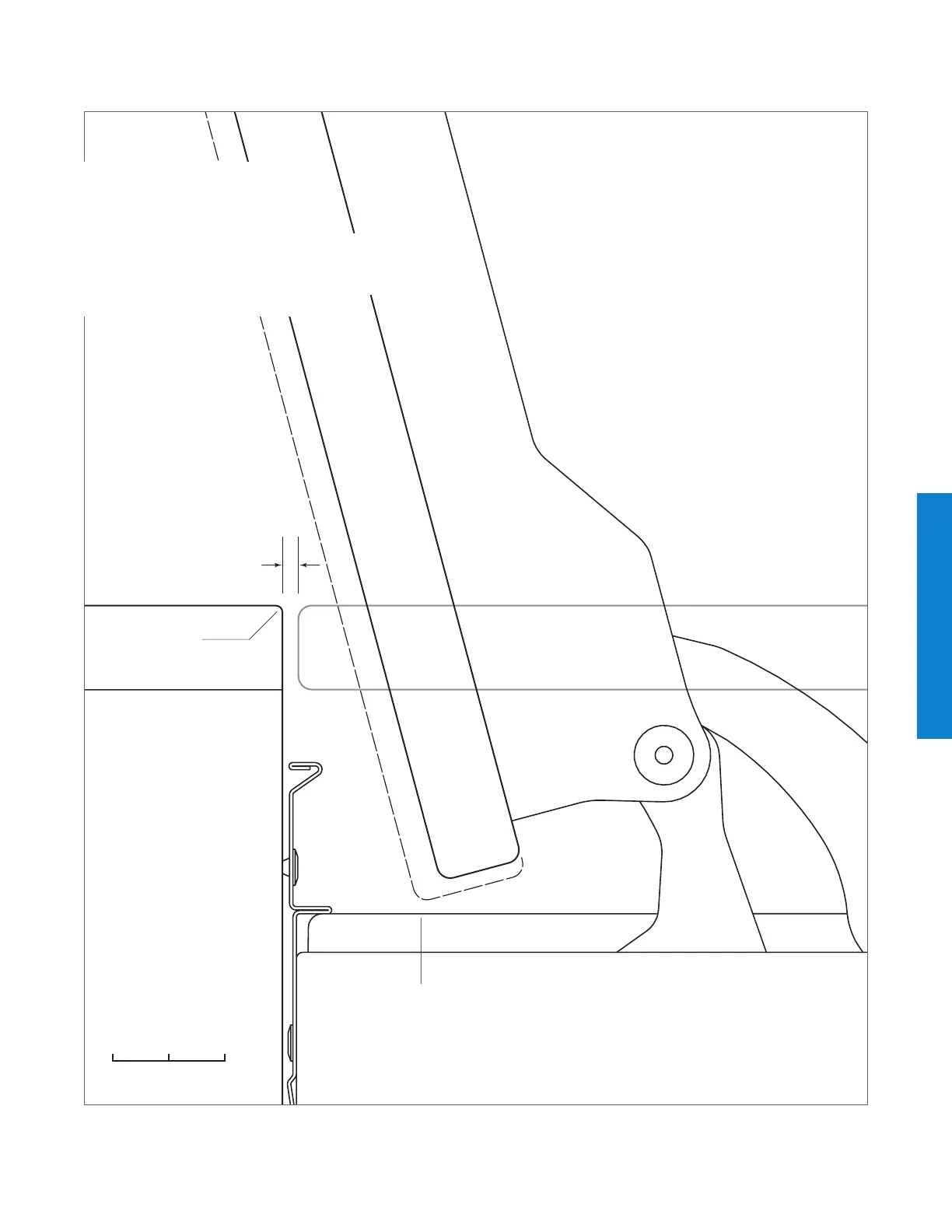

Maximum door opening (top view).
Maximum Door Opening
FULL-SCALE TEMPLATE
As the panel width and/or depth increases, so does the
potential for panel interference. Interference may be
minimized by utilizing the 90° door stop.
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
