WINE STORAGE
Custom Panel—WS-30 | BW-30
FRAMED
The framed application is an overlay model with framed
design features. It is not a separate model.
If the custom panel is thinner than
1
/4" (6), a ller material
must be added to achieve a proper t. If the panel is thicker
than
1
/4" (6), rout an edge around the panel or mount the
custom panel on a sheet of
1
/4" (6) thick material and insert
into the channel.
Routing, recessing and optional extended handles may be
required for nger clearance. Refer to the full-scale template
on page 82.
PANEL REQUIREMENTS
WEIGHT PER PANEL MAX
Door 75 lb (34 kg)
Grille (optional) 13 lb (6 kg)
PANEL THICKNESS MIN
Framed
1
/4" (6)

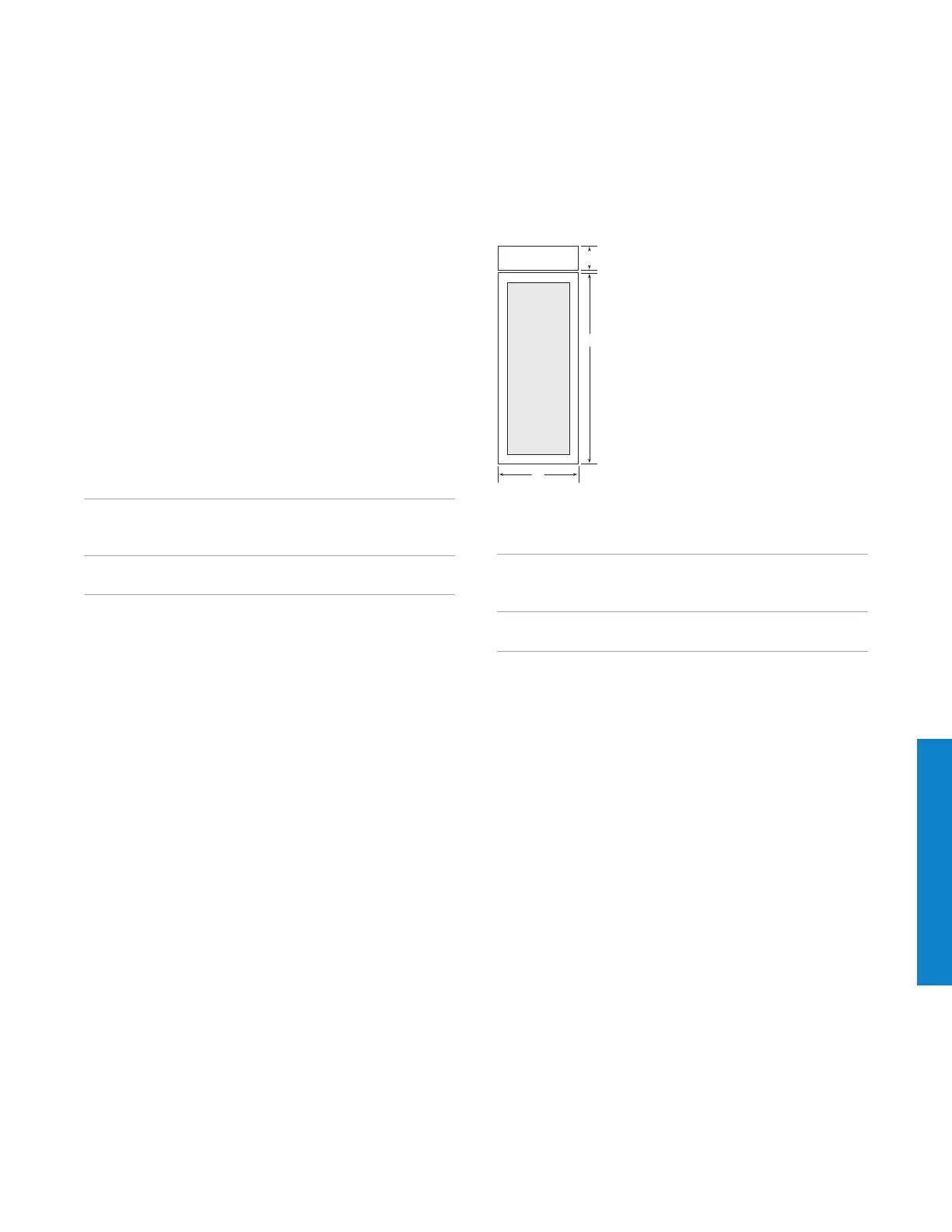

FRAMED PANEL DIMENSIONS
H
H
W
AA
A
A
WS-30, BW-30
PANEL DIMENSIONS
FRAMED PANEL W H
Door 29
3
/4" (756) 69
9
/16" (1767)
Grille (optional) 29
3
/4" (756) 8
15
/16" (227)
STILES | RAILS A
Minimum 3
3
/16" (81)
