UNDERCOUNTER REFRIGERATION
Custom Panel

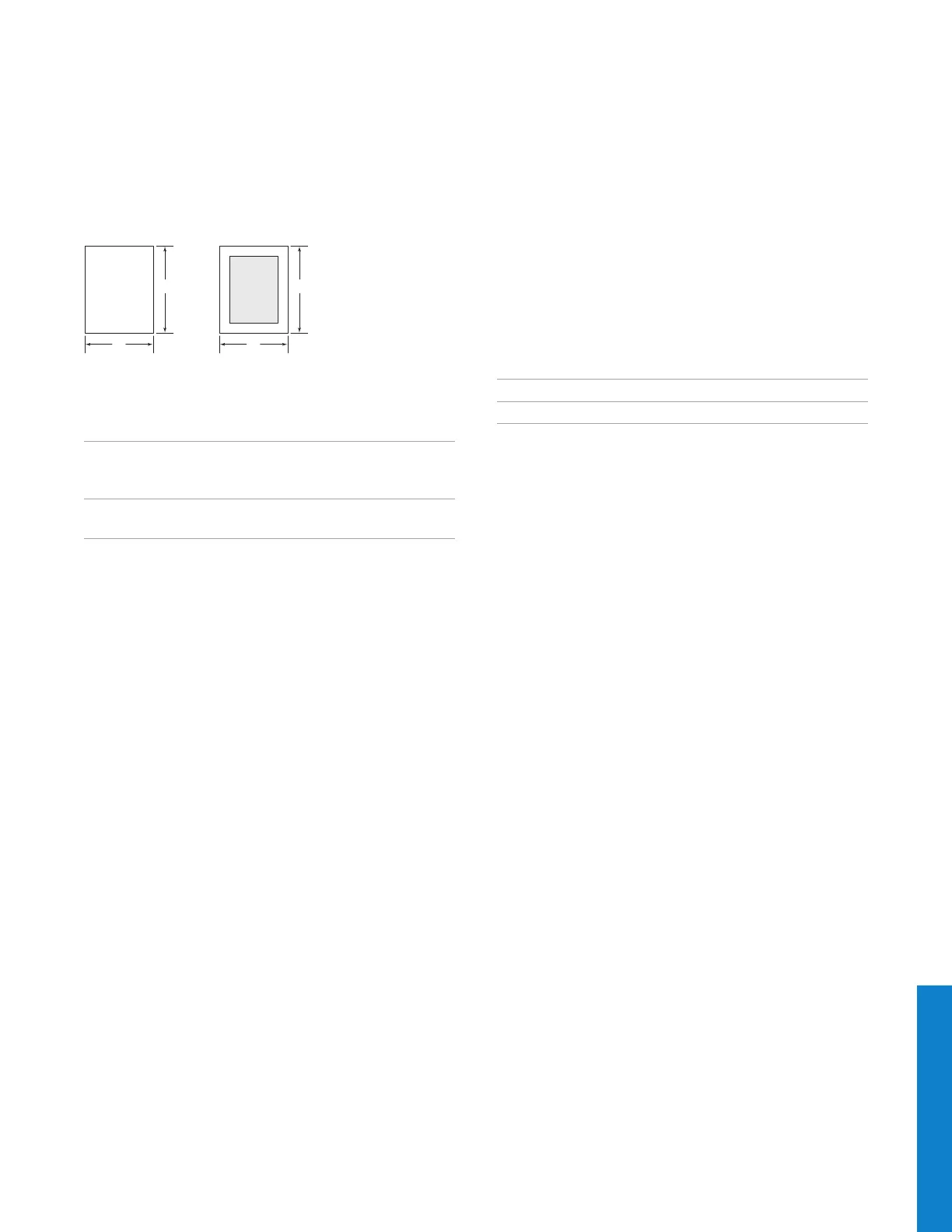

OVERLAY PANEL DIMENSIONS
H
W
H
W
AA
A
PANEL DIMENSIONS
MODEL W H
24" Model 23
3
/4" (603) 30
1
/16" (764)
Ice Machine 15" (381) 30
3
/8" (772)
STILES | RAILS A
UC-24BG 2
1
/4" (57) min
DOOR CLEARANCE
Undercounter models can be installed ush with sur-
rounding cabinetry. Depending on the thickness of the
custom door panel, it may be necessary to install the unit
1
/4" (6) beyond the front surface of adjacent cabinetry to
prevent interference when the door is opened to 145°. Refer
to the full-scale template on page 97.
UC-24R, UC-24C(I),
UC-15I(P)
UC-24BG
Standard Handles
Optional stainless steel tubular and pro handles are avail-
able through an authorized Sub-Zero dealer. For local dealer
information, visit the nd a showroom section of our
website, subzero.com.
Refer to the chart below for standard handle lengths for
undercounter models.
HANDLE LENGTH
TUBULAR PRO
Undercounter 24
1
/4" (616) 22
1
/2" (572)
Outdoor Model NA 15
11
/16" (399)
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
