6
|
Cove Customer Care 800.222.7820
Door Panel
STAINLESS STEEL PANEL
Stainless steel accessory door panels are available
through an authorized Cove dealer. For local dealer infor-
mation, visit the nd a showroom section of our website,
coveappliance.com.
CUSTOM PANEL
Finish all sides of the custom panel. They may be visible
when the door is open.
The thickness of the custom panel can vary. A minimum
1
/2" (13) thick panel is required, but the thickness can be
increased provided the panel does not exceed 16 lb
(7 kg).
The custom door panel template provided accommodates
23
3
/8" (594) and 23
3
/4" (603) wide panels. Adjust the template
accordingly for all other panel widths. Refer to the illustra-
tion below.
DOOR PANEL

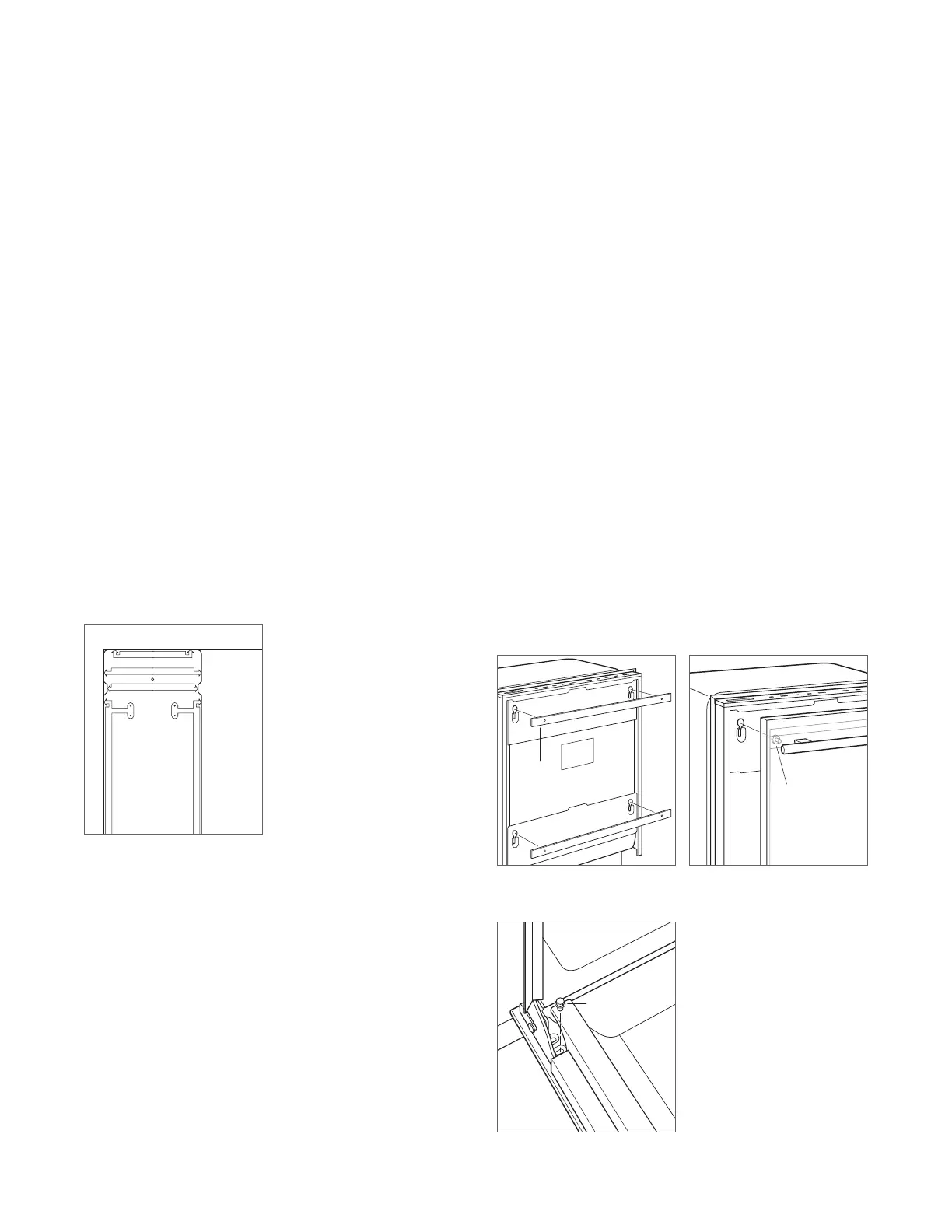

CUSTOM PANEL MOUNTING
1 Remove the template from the dishwasher door by
extracting the screws, then discard the screws.
2 Place the custom panel face down on a protected work
surface.
3 Position the template ush with the top and sides of the
panel, then mark and drill holes.
4 Remove the custom panel mounting brackets from the
dishwasher by pushing in and up on each bracket. Refer
to the illustration below.
5 Use the screws provided to secure brackets to the panel.
6 Align the mounting pins on the door panel with the dish-
washer door slots, then push in and shift the panel down
to secure. Refer to the illustration below.
7 Verify the panel is secure against the dishwasher door,
then insert a screw into each hinge to secure the bottom
of the panel. Refer to the illustration below.
HINGE SCREW
Hinge screw
TOP OF PANEL
HOLES FOR
BOTTOM BRACKET
TOP OF DOOR PANEL
HOLES FOR
TOP BRACKET
24" [610 MM] OPENING (23 3/4" [603 MM] PANEL)
23 5/8" [600 MM] OPENING (23 3/8" [594 MM] PANEL)
LEFT EDGE OF DOOR
PANEL
RIGHT EDGE OF DOOR PANEL
Custom door panel template
PANEL
MOUNTING
BRACKET
MOUNTING
PIN
Panel mounting brackets
Mounting pin
