5-6
#7012423 - Revision A - August, 2009
Component Access / Removal
Model UC-15I (Undercounter Ice Machine)
Lower Back Utility Panel Removal
The lower back utility panel is attached to the rear of
the unit with screws.
NOTES:
• To fully remove the lower utility panel, the water inlet
tube will need to be disconnected from the house
supply line.
• The power cord passes through a strain relief bush-
ing in the utility panel. These directions allow for the
power cord to remain attached to the utility panel.
To remove the utility panel (See Figures 5-10 & 5-11):
1. Pull the drain hose from the drain tube.
2. Turn the drain tube until its tabs can be pushed into
the compressor area.
3. Extract the screw securing the water inlet line tube
clamp to the lower utility panel.
4. Extract the utility panel mounting screws.
5. Pull lower utility panel away from unit while feeding
water inlet tube through hole in panel; stop when
power cord electrical connections become taught.
6. Disconnect power cord electrical leads from the unit
wire harness.
7. Extract the power cord grounding screw and pull
lower utility panel from back of unit.
Power Cord Removal
The power cord passes through a strain relief bushing
in the lower utility panel.
To remove the power cord (See Figure 5-11):
1. Extract the screw securing the water inlet line tube
clamp to the utility panel, then extract the panel
mounting screws.
2. Pull lower utility panel away from unit while feeding
water inlet line through hole in panel; stop when the
power cord electrical connections become taught.
3 Disconnect power cord electrical leads from the unit
wire harness and extract the power cord grounding
screw.
4. With a pliers, squeeze the strain relief bushing
together at the back side of the utility panel while
pushing the bushing through the hole in the panel.

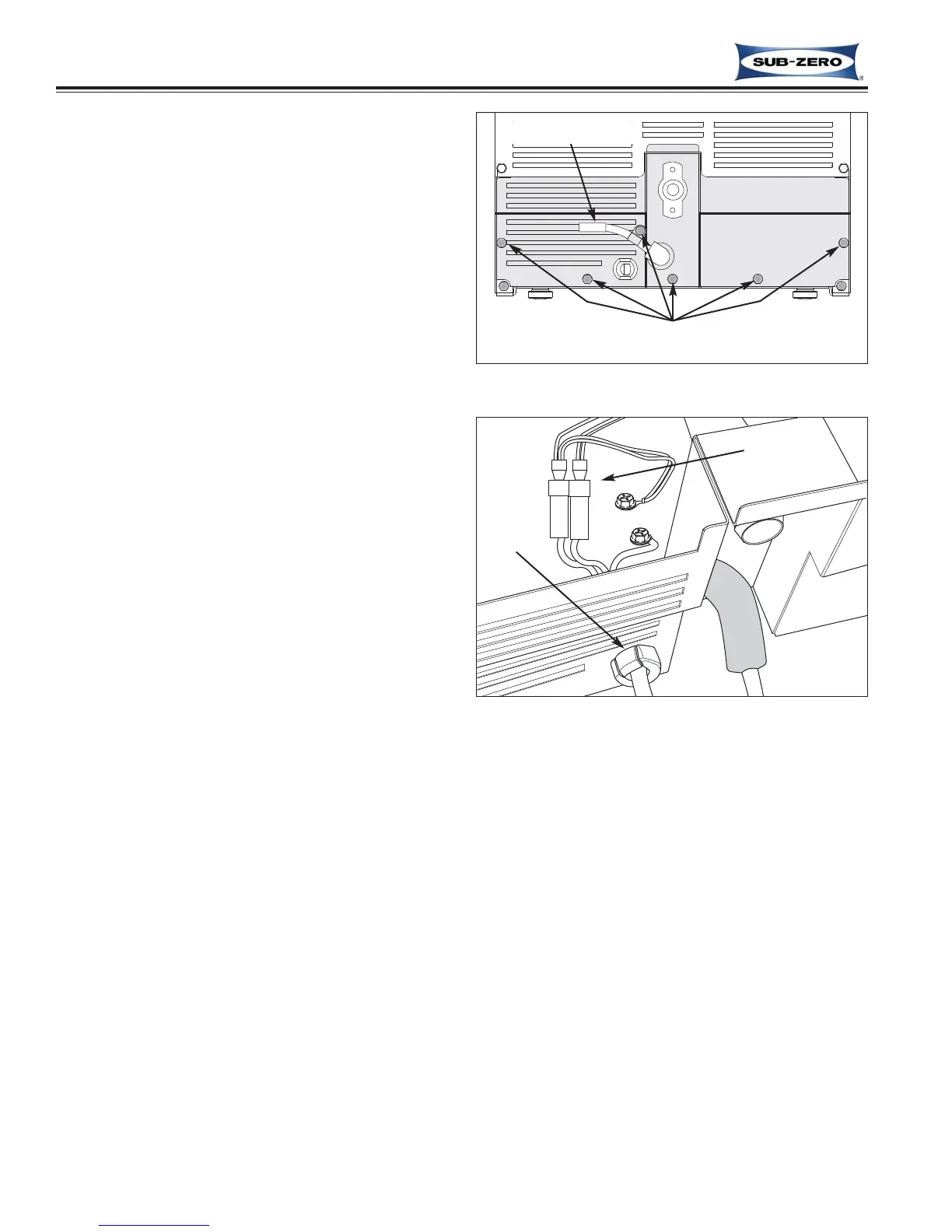

Figure 5-10. Lower Rear Panel Removal
Figure 5-11. Power Cord Removal
Screws
Electrical
Connections
Strain
Relief
Bushing
Water Inlet Tube
