5-7
#7012423 - Revision A - August, 2009
Model UC-15I (Undercounter Ice Machine)
Component Access / Removal
Front Top Rail Removal
The front top rail slides down behind the left and right
outer side panels and is secured with screws at each
end that pass down through the rail into the cabinet
frame.
To remove the front top rail, the door, upper hinge
assembly and top cover must be removed first, then
(See Figure 5-12):
1. Extract the screws from each end of the top rail.
2. Grasp the top rail from both sides and pull upward.
Screws
Lift Here
Screws

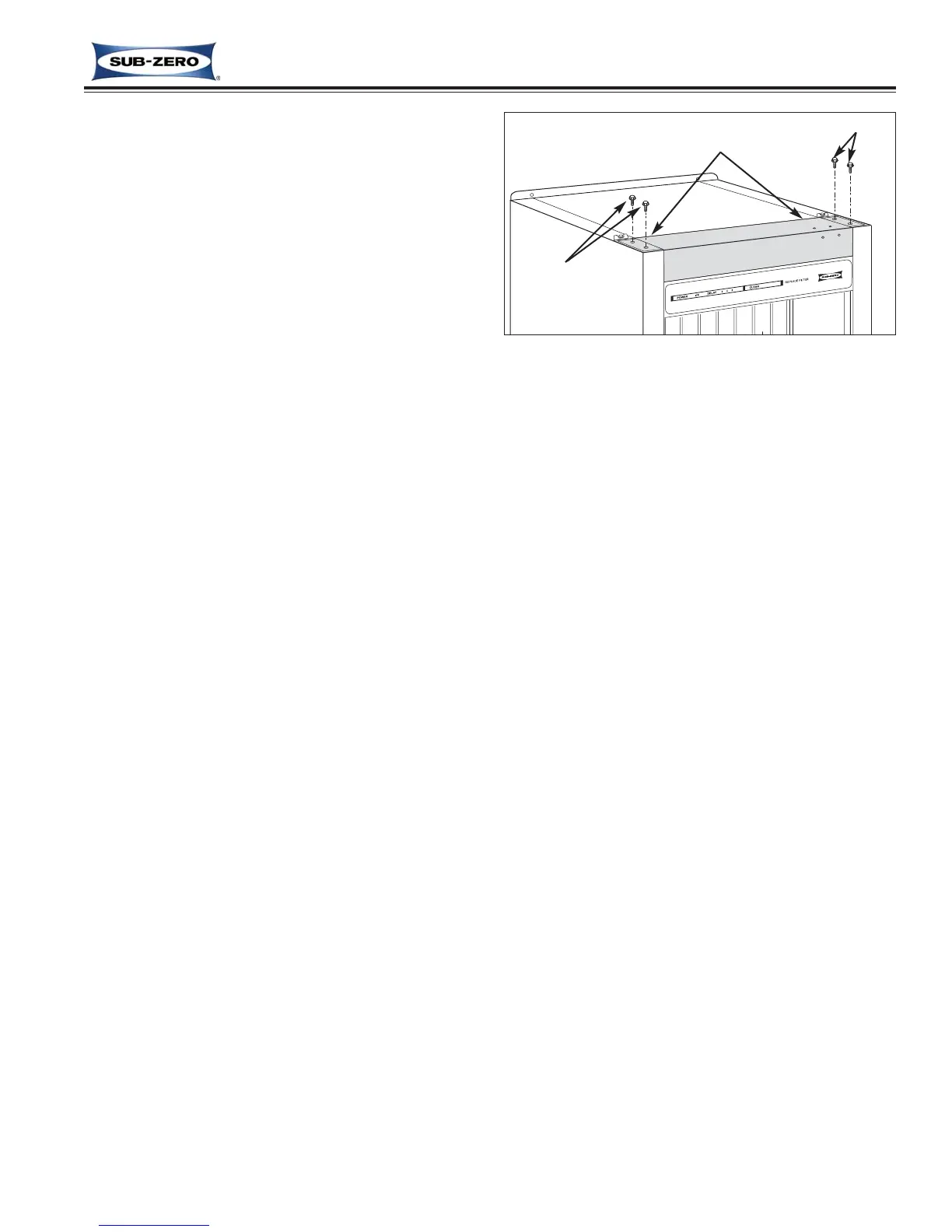

Figure 5-12. Front Trim Rail Removal
