Subaru 2005 Forester - Fuses and Circuits; Fuse Panel Located Behind the Coin Tray

12-6
Specifications
Fuses and circuits
 Fuse panel located behind the coin
tray
1
23456
78
910
11
12
13
14 15
16 17 18 19
20 21 22 23

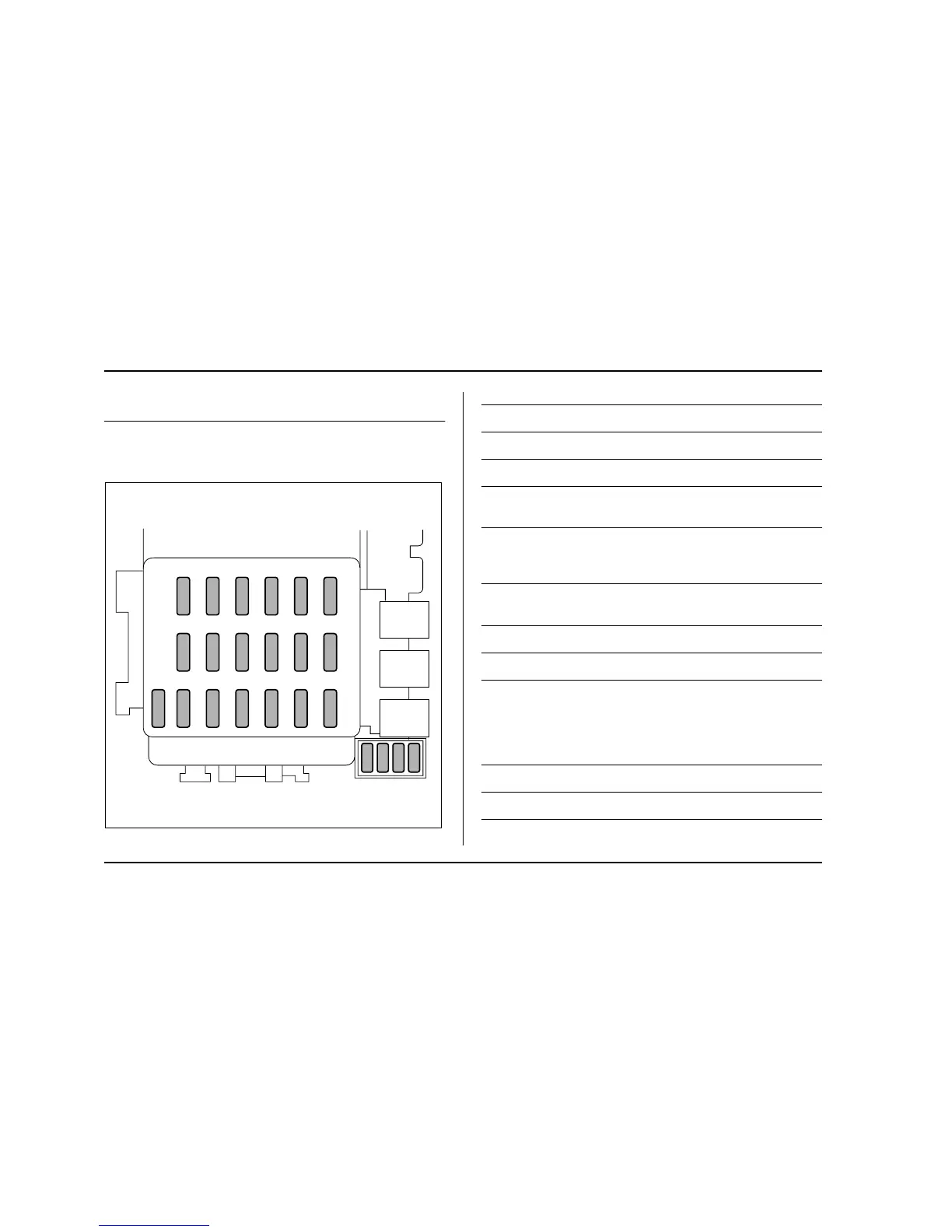

HSC001BB
Fuse panel Fuse rating Circuit
1 15A y Heater fan
2 15A y Heater fan
3 15A y Power door lock
y Remote keyless entry
4 15A y Cigarette lighter
y Remote controlled rear
view mirrors
5 10A y Tail light
y Parking light
6 15A y SRS airbag
7 15A y Fog light
8 30A y ABS
y Vehicle Dynamics Con-
trol system (models with
Vehicle Dynamics Con-
trol system only)
9 15A y Radio
10 Empty
