Subaru 2005 Forester - Fuse Panel Located in the Engine Compartment

12-8
Specifications

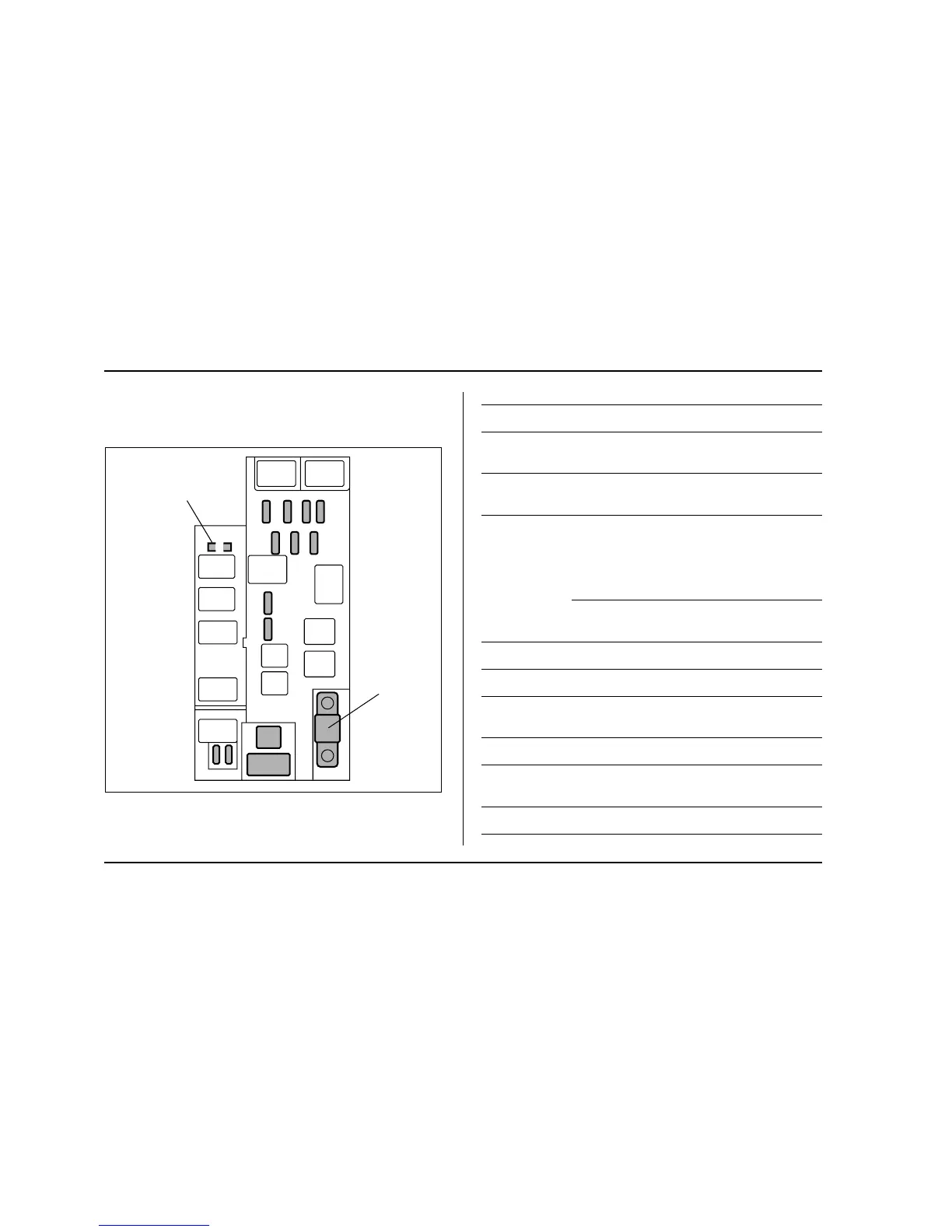

 Fuse panel located in the engine com-
partment
A) FWD socket (AT models without Vehicle Dynamics
Control system)
B) Main fuse
A
1
2
4
3
B
5
6
7
8
9
10 11 12
13
USC003BB
Fuse panel Fuse rating Circuit
1 30A y Radiator cooling fan
(Main)
2 30A y Radiator cooling fan
(Sub)
3 50A y Vehicle Dynamics
Control system (Mod-
els with Vehicle Dy-
namics Control system
only)
30A y Engine sensor (Non-
turbo models only)
4 30A y ABS motor
5 20A y Rear window defogger
6 15A y Hazard warning flasher
y Horn
7 15A y Turn signal lights
8 10A y Automatic transmis-
sion control unit
9 10A y Alternator
