4-3-5 Air cleaner
Disassembly/assembly：

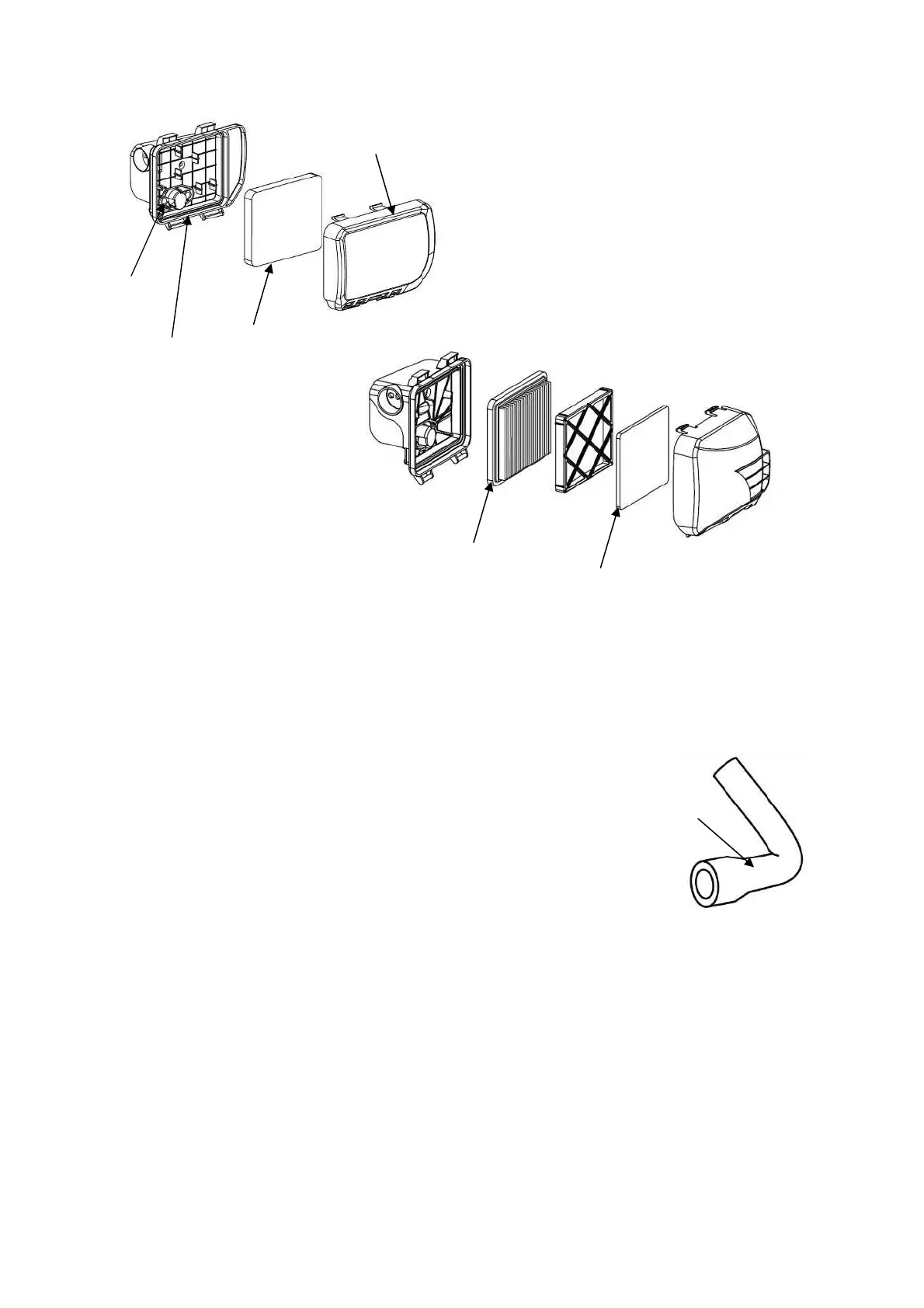

Disassemble the air cleaner as shown on the above figure.
NOTICE
・Check for damage of the air cleaner gasket before reassembling.
・If necessary, please replace and pay attention to assembling
direction, viewing from the air cleaner side.
・Before assembling, check rubber tube for deterioration or damage.
・Replace if necessary. Pay attention to connect the beveled end
shorter (big head end) to the air cleaner case while the other end
connect to the engine.
NOTICE:
・Don’t wash the foam element with the gasoline, acidity, alkalic or organic solvent
・Don’t pull and wrest the sponge or it will be damaged.
WARNING:
・Don’t start the engine without air cleaner or the engine will be quickly worn.
R
ubber tube
Air cleaner shell
Air cleaner
element
Nut M6
Air cleaner seat
Urethane Foam Element
Paper Element

Subaru EA190V Specifications

General

Compression Ratio	8.5:1
Lubrication System	Splash
Ignition System	Transistorized Magneto Ignition
Starting System	Recoil Starter
Oil Capacity	0.6 liters
Fuel Type	Unleaded gasoline
Engine Oil Type	SAE 10W-30
Engine Type	4-Stroke, Air Cooled, OHV
Fuel Tank Capacity	3.6 L
