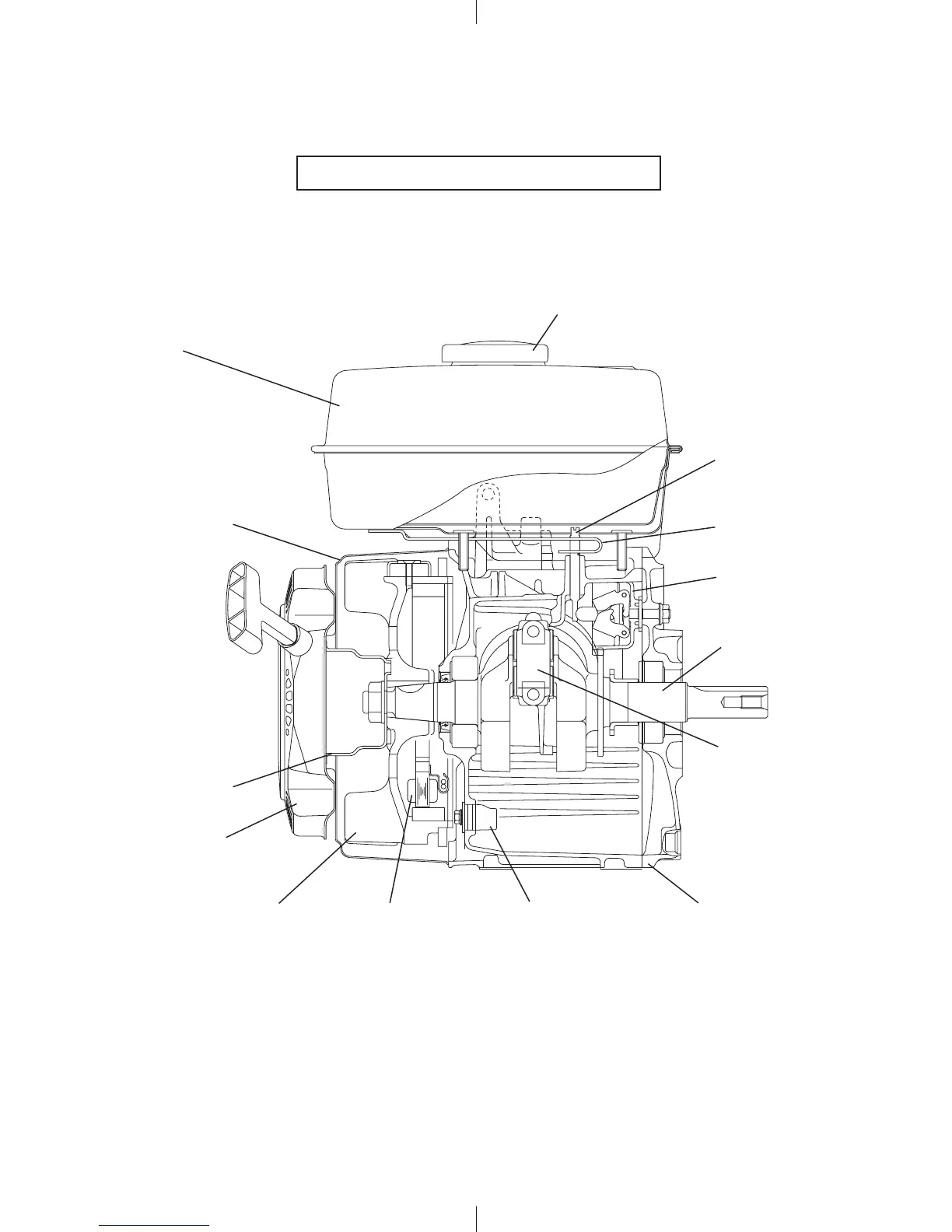

Fig. 4-16
TANK CAP
FUEL TANK
BLOWER HOUSING
STARTING PULLEY
RECOIL STARTER
FLYWHEEL CHARGE COIL
(OPTION)
OIL SENSOR
(OPTION)
MAIN BEARING COVER
CONNECTING ROD
CRANKSHAFT
GOVERNOR GEAR
GOVERNOR LEVER
GOVERNOR SHAFT
Cross sectional view – across the shaft
4-18 SECTIONAL VIEW OF THE ENGINE
